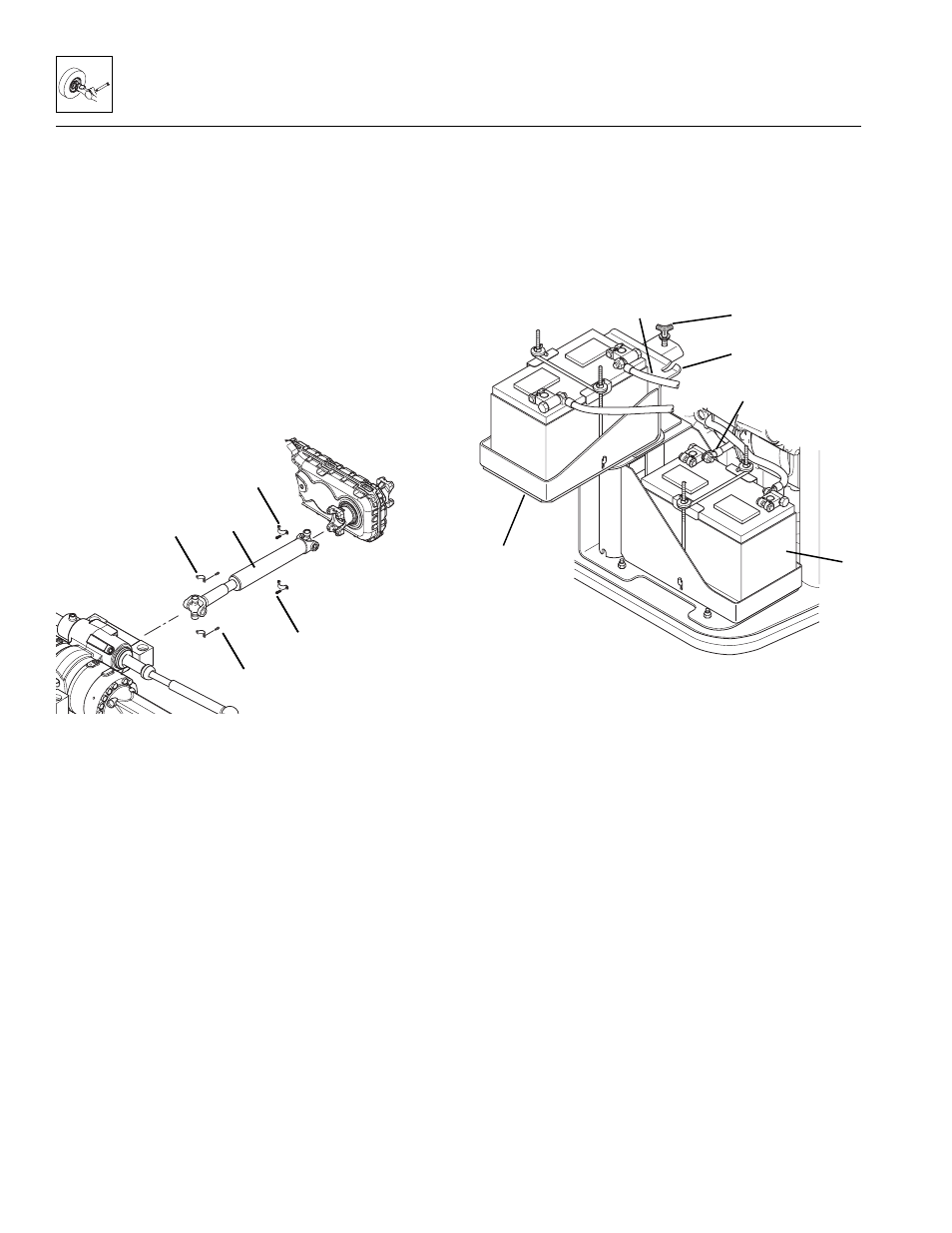

5. Raise the drive shaft assembly (1) into position. The
slip yoke-end of the drive shaft mounts toward the
axle. If reinstalling a drive shaft previously removed,
align the flange yokes according to the alignment
marks made during removal.
IMPORTANT: Yokes at both ends of the drive shaft must
be in the same plane to help prevent excessive vibration.
6. Install the four capscrews (2) and two straps (3)
securing the bearing crosses to the transmission.
Torque the capscrews to 60 lb-ft (81 Nm).
7. Install the four capscrews (4) and two straps (5)
securing the bearing crosses to the axle. Torque the
capscrews to 60 lb-ft (81 Nm).
8. If the vehicle has dual batteries, connect both
negative battery cables (6 and 7) to both batteries.
Connect the lower negative battery cable (6) to the
negative (-) terminal on the lower battery (8). Swing
the upper battery box (11) in and make sure that the
lip (10) on the upper battery box slides below the
knob (9). Secure in place with the knob (9).
