Page 679

9.169
Model 644E-42/944E-42
Rev. 6/04
Electrical System
9.12.1
Alternator
a. Alternator Removal

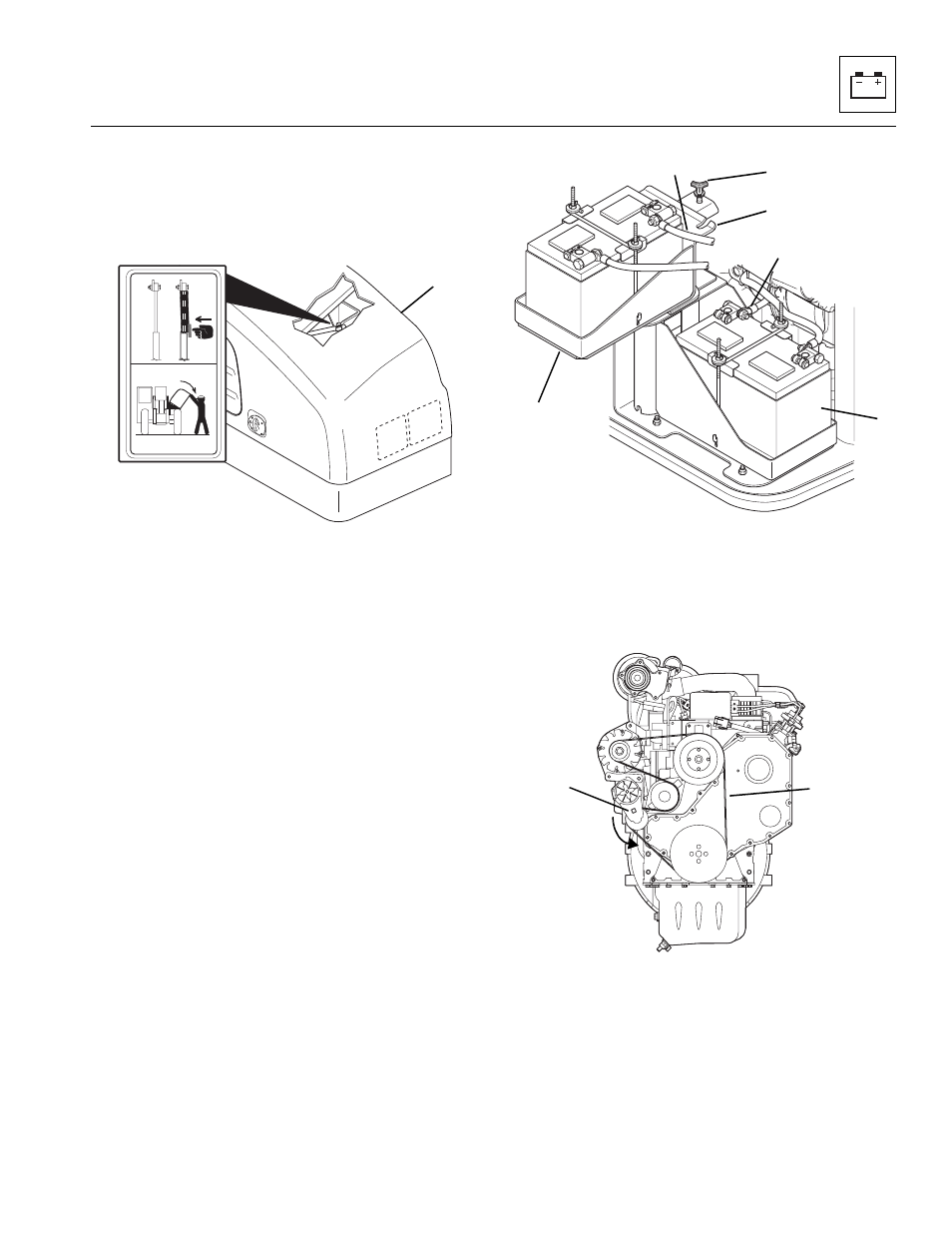

1. Unlock and open the engine cover (4).
2. If the vehicle has dual batteries, disconnect both
negative battery cables (5 and 6) from both
batteries.
To access the lower battery (7), loosen the knob (8)
far enough so that the lip (9) on the upper battery box
clears the knob. Lift up the upper battery box (10) and
swing it out, so that the box clears the hydraulic tank
support bracket, to gain access to the lower negative
battery cable (5). Disconnect the lower negative
battery cable.
3. Insert a 3/8” square drive ratchet into the square
hole on the automatic belt tensioner bracket (11),
and remove the tension from the fan drive belt (12)
by rotating the tensioner inward. With the tension
removed, remove the belt.
4110390
1.
2.
OU0780
4
MU0650
5
6
7
8
9
10
MU1330
11
12
