4.41 Model 644E-42/944E-42 Rev. 6/04
Cab and Covers

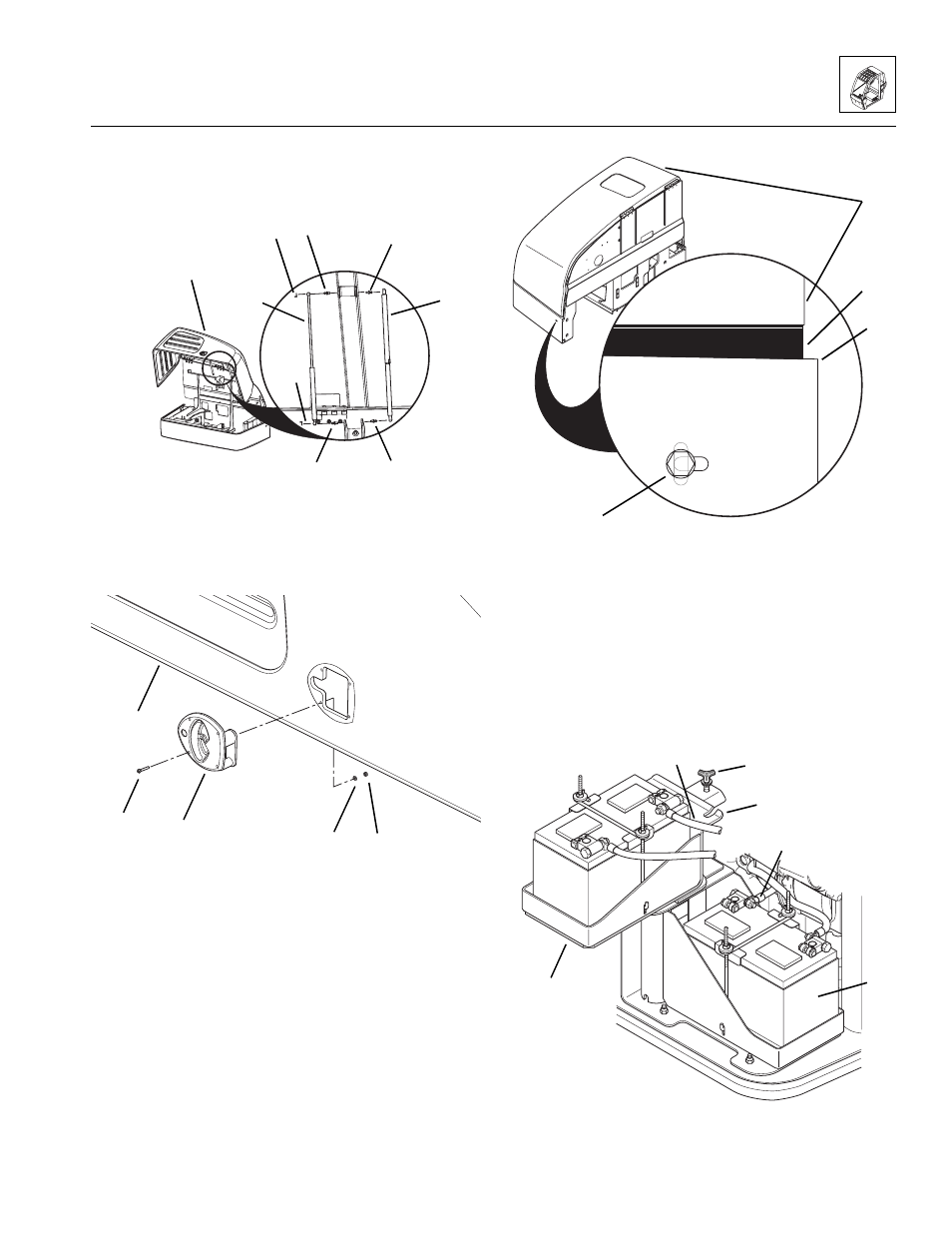

12. Gently strike the bottom of the right support
strut (20) towards the stud ball (22) to pop the right
support strut (20) into the stud ball (22).
13. Replace four capscrews (23), washers (24),
nuts (25) and hood latch (26) onto the engine
hood (27). Torque capscrews (23) to 2 - 4 lb-ft
(3 - 6 Nm).
14. Slowly start to close the engine hood (28) to verify
that the engine hood seal (29) compresses evenly. If
the hood seal starts compressing before the seal is
close to parallel to the engine mount frame skirt (30),
the rear of the skirt may need to be adjusted
downward.
Loosen the skirt mounting hardware (31). Lower the
engine hood (28) to the closed position. Adjust the
rear corners of the skirt (30) downward so that the top
of the skirt just meets the rear of the engine hood
seal (29).
15. Replace all decals and reflectors with new parts, on
the new engine hood. (Refer to the appropriate Parts
Manual for proper locations).
16. If the vehicle has dual batteries, connect both
negative battery cables (32 and 33) to both
batteries.
Connect the lower negative battery cable (32) to the
negative (-) terminal on the lower battery (34). Swing
the upper battery box (37) in and make sure that the
lip (36) on the upper battery box slides below the
knob (35). Secure in place with the knob (35).
