6.7 Model 644E-42/944E-42 Rev. 6/04
Transmission: ZF 4WG-92/98 TSC & Transfer Case: ZF TB92-I4
6. Raise the vehicle up and place all four wheels on
blocks so there is 36" (914 mm) of clearance
between the level hard surface and the lower edge of
the engine pod skirt.
7. Refer to Section 5.4.3, “Drive Shaft Removal,”
procedures for the removal of the drive shafts from
transfer case.

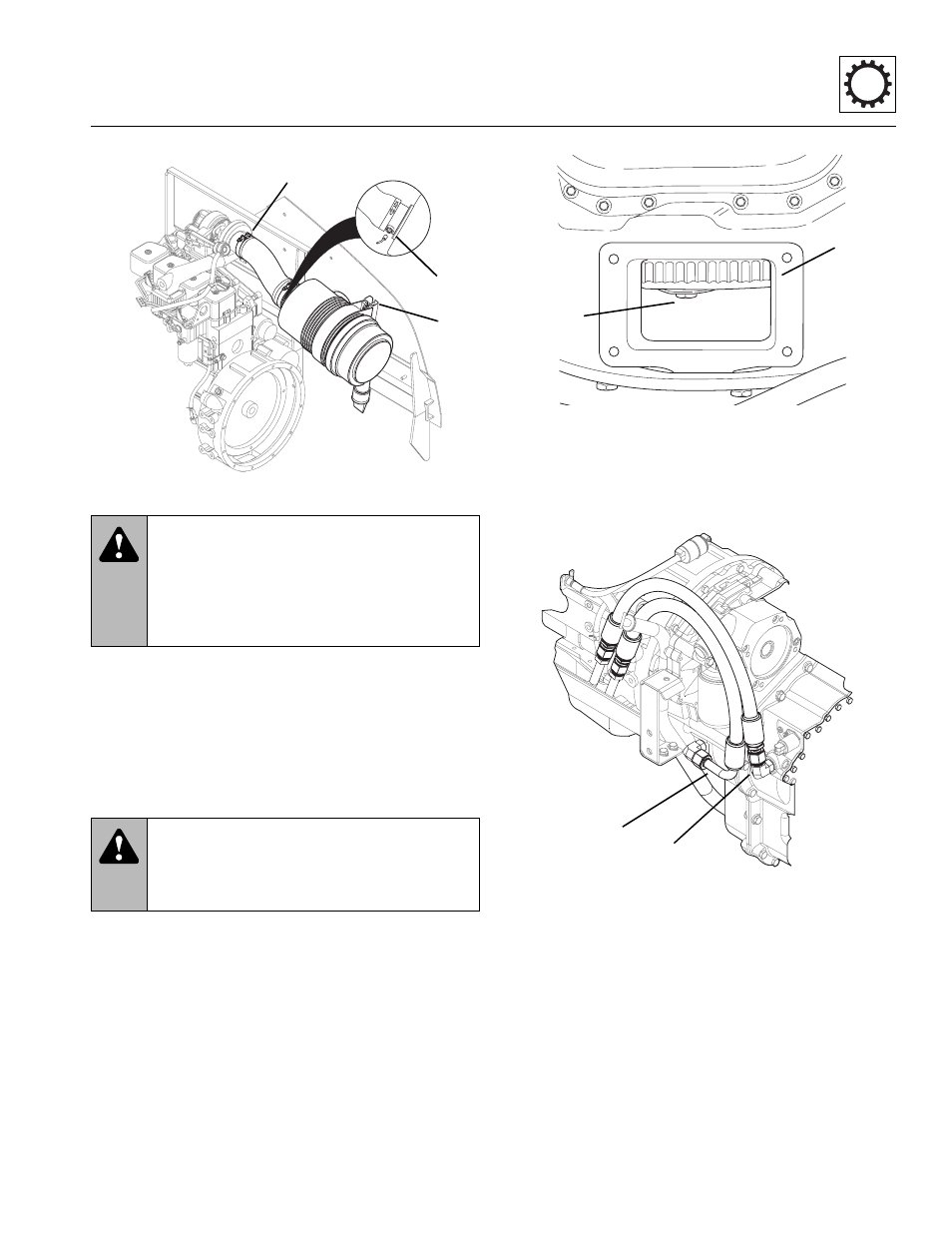

8. Working through the engine flywheel inspection and
access hole (10), remove the four hex head
capscrews (11) securing the converter diaphragm to
the engine flywheel. Use a engine baring tool or
similar device, to prevent the flywheel from turning
while removing the capscrews.
9. Label and remove the transmission inlet hose (12)
and transmission outlet hose (13) from the fittings on
the transmission only. Cap and plug all fittings and
hose ends to prevent contamination from entering.
WARNING:
An improperly supported
vehicle can fall, causing death or severe
personal injury. Safely raise and adequately
support the vehicle, so that it will remain stable
and in place before attempting to remove the
transmission.
WARNING:
Risk of severe personal
injury. NEVER lift a transmission alone; enlist
the help of at least one assistant or use a
suitable hoist or overhead crane and sling.
MU1770
7
8
9
MT1070
10
11
MU0940
Front
12
13
