11.7 Model 644E-42/944E-42 Rev. 6/04
Transfer Carriage

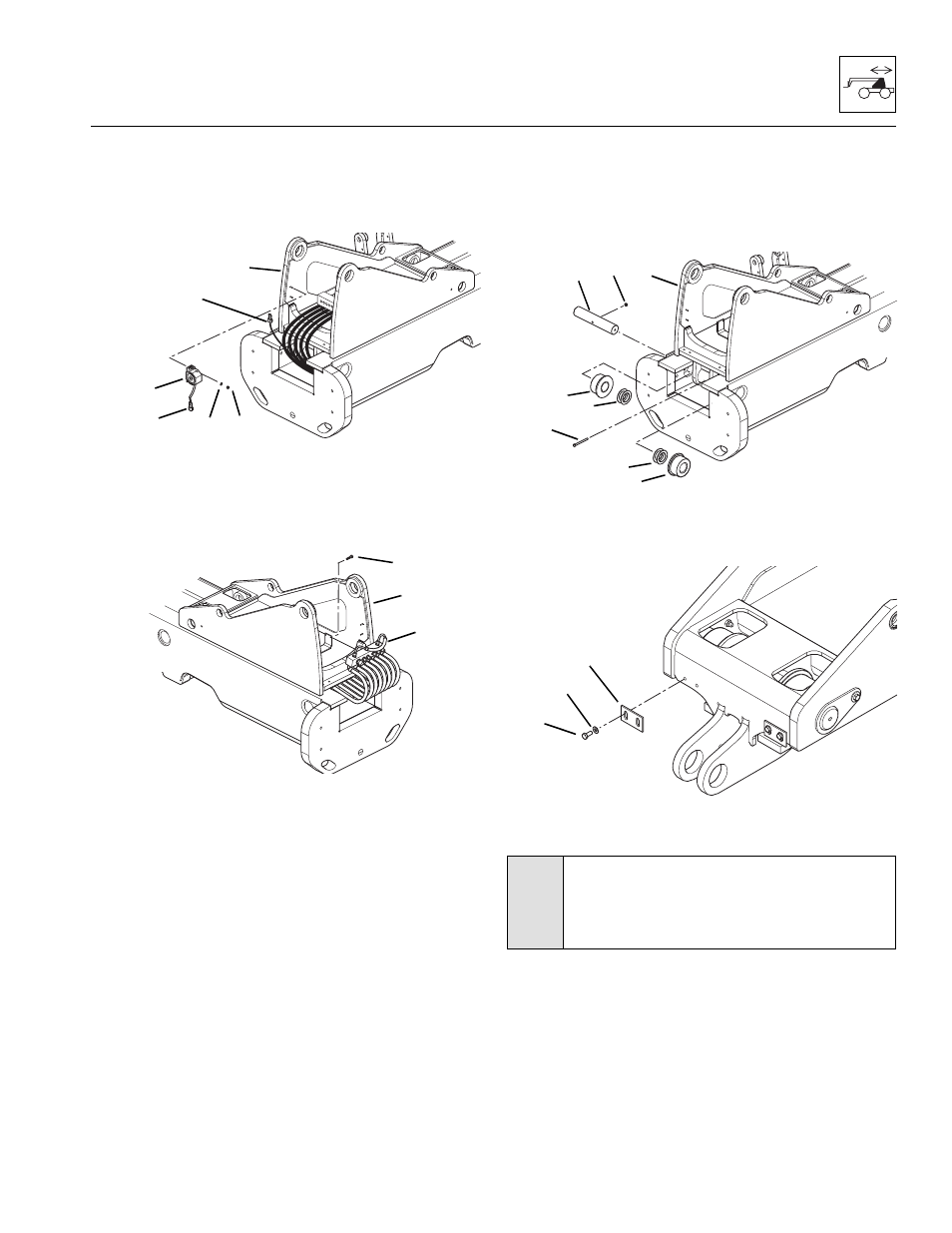

23. Disconnect the back-up alarm electrical
connection (11) from the wire harness (12) and
remove the locknuts (13) and washers (14) securing
the back-up alarm (15) to the transfer carriage (16).
24. Remove four capscrews (17) securing the hydraulic
junction manifold (18) to the transfer carriage (19).
Lay hoses and hydraulic junction manifold behind
frame.
25. Remove pin bolt (20) and locknut (21) from rear
roller pin (22). Slide the roller pin out and remove the
rear rollers (23) and shims (24) from both sides of
the transfer carriage (25). Count and label the rear
rollers and shims for later replacement.
26. Remove capscrews (26), washers (27) and
scrapers (28) from the transfer carriage.
27. Lift and slide the transfer carriage out the back of the
frame. Lower and place the transfer carriage onto
support jacks, capable of supporting the weight of
the transfer carriage, on a firm level surface.
