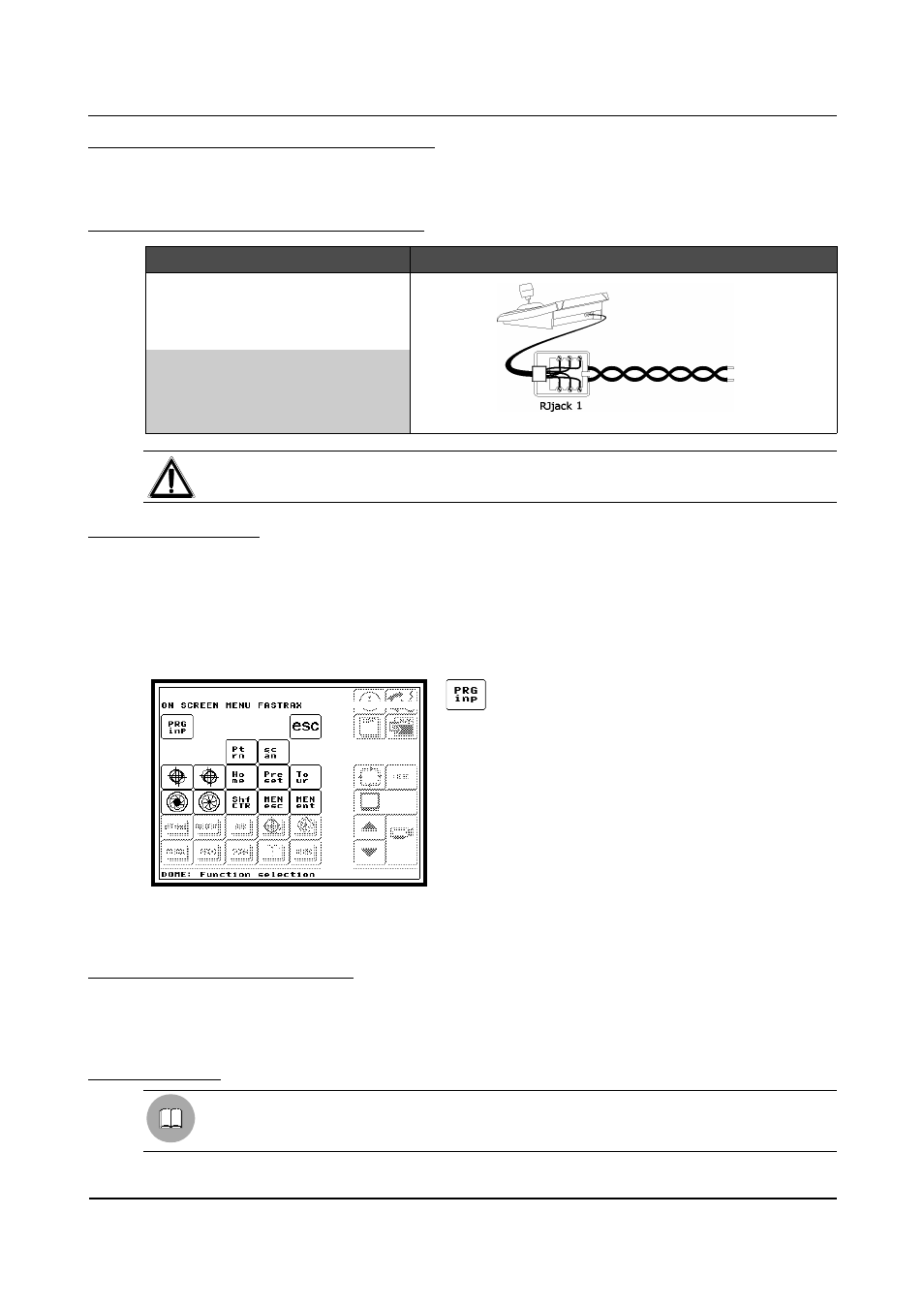

6.6 HITRON FASTRAX II Dome
6.6.1 Materials and reference documents
HITRON Fastrax II HID2404SM11P Dome
(HID-2404) Protocol and Examples
6.6.2 Connecting the hardware to the dome
DCT RJjack1 DOME Connection diagram
RS485A white Tx+
RS485B yellow Tx-
WARNING
Set the Fastrax II protocol inside the dome.
6.6.3 Configuration
The dome is mainly configured by On Screen Menu.
For all dome configuration operations it is necessary to enable the "Setup telemetry" FUNCTION (see §
4.2.4.5 - Functions, page 35). Follow the general procedure to connect the dome directly to the keyboard and
a monitor to the dome video OUT (see § 6.19 - Operating procedure for setting a dome/receiver, page 137).
Go to the OSM configuration page (see § 6.1.5 - Layout of the configuration menus, page 76) where it is
possible to make the settings for the various parameters.
ENTER PROGRAMMING
To enter the dome OSM.
The remaining keys have the same functions as those of the original keyboard. The reader should refer to the
specific handbook for the dome.
6.6.4 Autopan, Aux, Focus, Iris
All these functions can be loaded by pressing the specific keys in the control menu area of the Main menu (see
§ 4.4 – Control menu area, page 45). Refer to § 9.1 – Functions assigned to the most common graphics keys,
page 164 e § 9.2.1 – Dome, page 165 to check which functions are available for the dome.
6.6.4.1 Autopan
WARNING
'Autopan' refers to the movement indicated by the dome as 'Auto Scan'
The only way to stop a movement in progress is to operate the joystick (Pan or Tilt movements).
