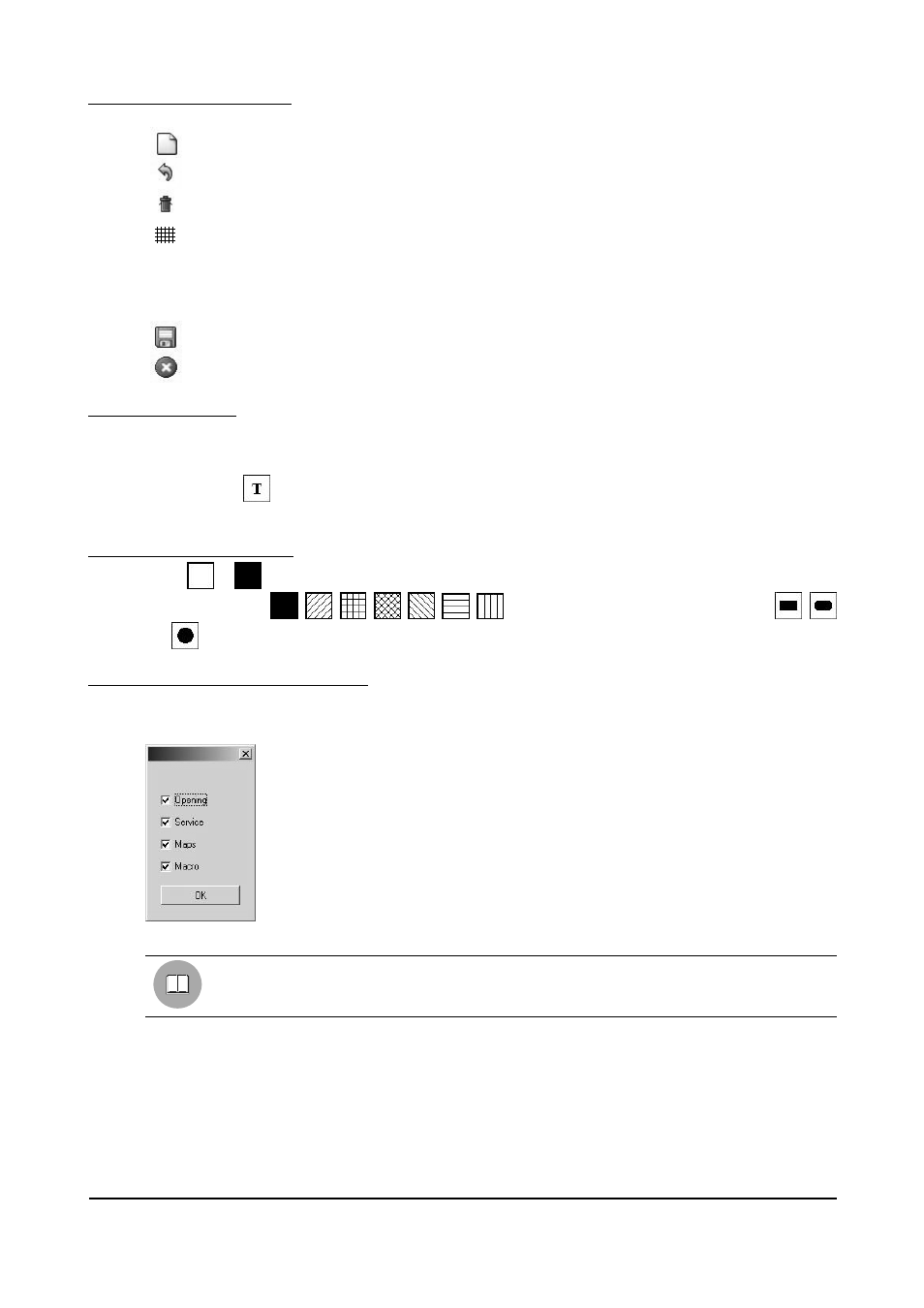

7.4.3.10.2 General tools area
Restore the original image status
Erase the last graphics object to be inserted
Erase all the graphics objects that have been inserted
Display the grid or crosses to simplify positioning of keys
Crosses Display crosses to simplify positioning of keys
Foreground Display the grid or crosses in front of graphics objects
Snap
Snap to the grid/crosses to simplify insertion of the objects with respect to the key positions
Zoom Zoom the image, from 100% to 4000%
Save the image as background and return to the main programme
Return to the main programme without saving the modifications
7.4.3.10.3 Text Area
To add text to the background image:
• select the type of character, the dimension and the style;
• enter the string in the Text box;
• click on the icon and select the area of the background where the text is to be positioned.
7.4.3.10.4 Colour/filling area
Select or to draw black or white lines.
Select an icon from , , , , , , to fill the objects you have drawn with the ,
and functions.
7.4.3.11 Sending and receiving data
Whenever you want to send/receive data to/from the keyboard the programme will display the following
dialog box.
The various check boxes specify the type of graphics project you intend to
transfer to or download from the keyboard.
If for example you wish to transfer only the “Service” page check just the
corresponding check box.
WARNING
Deleting the “Open” graphics project is irreversible. If you transfer a blank Opening image to
the keyboard by mistake, when the keyboard is switched on you will see a white screen.
Page 159 of 176 MNVADCT03_0716
