7.4.3.1 Programme structure

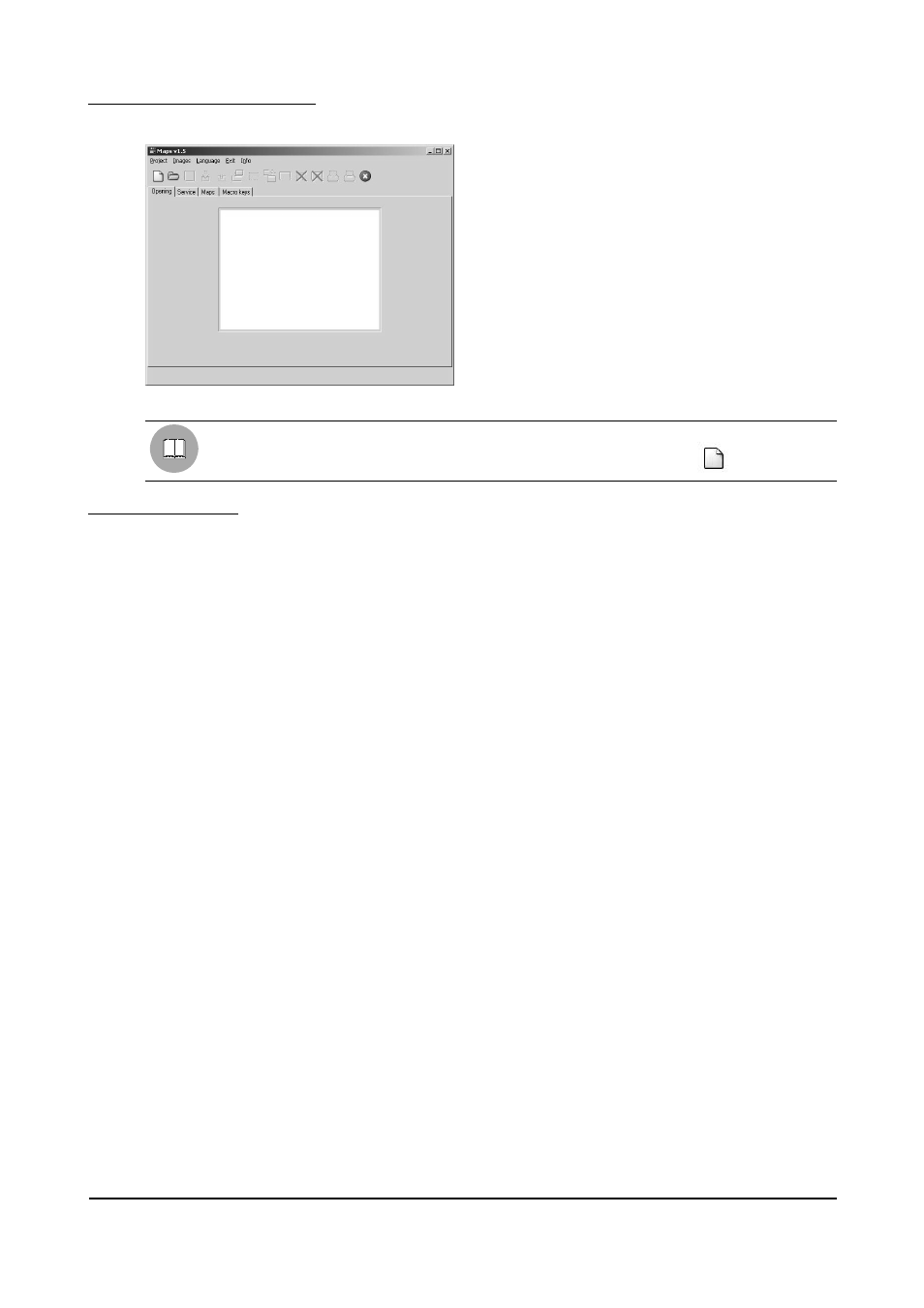

When the programme is started, the graphics window has the following appearance.
The window can be divided into three areas: Main
menu, toolbar and graphics area, with the possibility of
selecting 4 index cards (Open, Service, Maps and
Macro Keys).
WARNING
Before you start any project you must first open a new one by clicking on the icon.
7.4.3.2 Main menu
This comprises the following fields:
Project
New opens a new empty project
Open loads a graphics project that has been saved previously in a file
Save saves the graphics project
Save as saves the graphics project with a new name
Receive from keyboard via the serial port, downloads the maps present in the keyboard
Send to keyboard via the serial port, sends the maps to the keyboard
Print preview print preview of the graphics project
Print sends the graphics project directly to the printer
COM Port for selecting the serial port to be used for transferring the file
Images
Import Image Imports the background image (320 ×240 pixel, B&W) for the
map
Change image loads the edit image window for changing the appearance of the
background
Key surround enables/disables highlighting of the borders of the keys included
in the maps
Import Key images captures the fraction of background underneath an empty key so
that it can be reproduced in different areas of the map (by later
shifting the key or making a copy). With this operation the key
has the same graphics appearance as that of the background
underneath.
Delete keys erases all the keys present in the selected map
Delete background erases the background of the selected map
Language for choosing the language used by the programme
Exit closes the programme without saving the open file
Info provides information on the programme version
