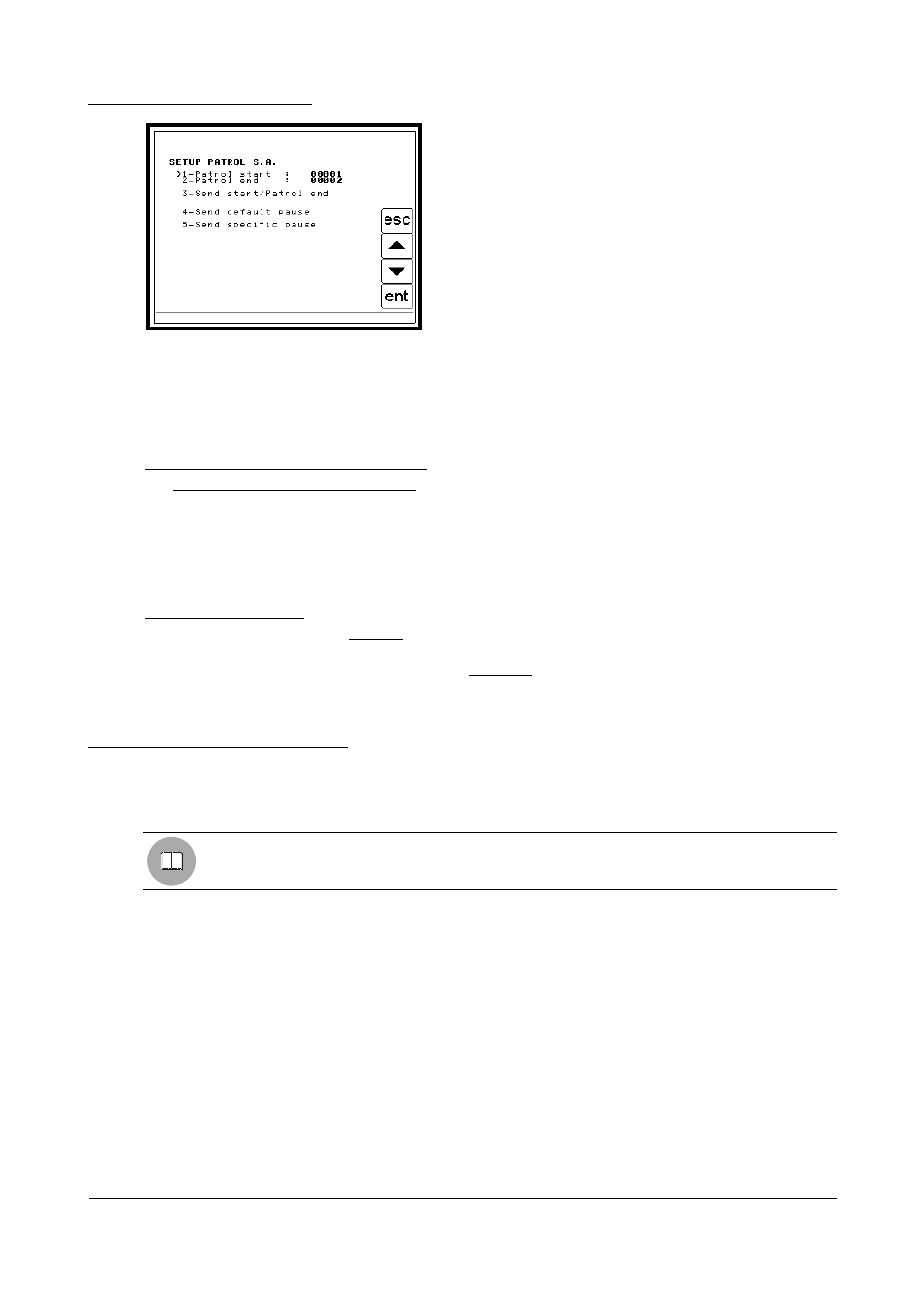

6.18.6.2 Setup S.A. PATROL
The S.A. PATROL sequence comprises a series of Preset positions that are reached in succession with a dwell
time that may vary from position to position.
The S.A. PATROL can have a maximum of 99 positions. See the receiver handbook for the specific limits for
each model.
Changing the S.A. PATROL only becomes effective after the changed parameter has been sent to the receiver.
Procedure for defining the S.A. PATROL:
Defining the initial and final positions:
 Select field 1, press the “ ent ” key and insert the number for the desired Preset position.
 Select field 2, press the “ ent ” key and insert the desired value.
 Select field 3 and press the “ ent ” key to send the configuration to the receiver.
All Preset positions (if set previously) between the one that is defined as “Patrol Start” and the one that is
defined as “Patrol End” will be reached during the PATROL sequence.
Defining the dwell times:
 To change the length of the common dwell time for all the positions to be reached, select field 4 and press
the “
ent ” key. Insert the desired value and confirm with the “ ent ” key.
 To change the length of the dwell time for an individual position, select field 5 and press the “ ent ” key.
Insert the Preset position no.and press “ ent ”. Insert the desired dwell time value and press “ ent ” again.
Press the “ esc ” key to return to the PATROL page.
6.18.7 Preset, Scan and Home
The PRESET, SCAN and HOME functions are described in sections (§ 4.4.1.1 - PRESET, page 46 e § 4.4.2 -
SCAN MENU, page 48).
Refer to § 9.2.2 – Telemetry receivers, p. 167 for the specific limits for the VIDEOTEC and Macro protocols.
See the handbook for the individual receiver.
