6.10 PANASONIC Domes
6.10.1 Materials and reference documents
Panasonic WV-CS600 and WV-CS850 domes.
Protocol Information WV-CS850 Ver. 2.2, Nov.28, 2001.
Protocol Information WV-CSR600, WV-CSR400, WV-BSR300 Ver. 5.3, Nov.27, 1997.
6.10.2 Important note regarding the protocols
The Panasonic protocols are used to control a range of domes with somewhat different specifications.
Because the complete protocols have been implemented, it is possible that the controls described below can be
used for both the WV-CS600 and WV-CS850 models, or they may be specific to only one model. Wherever
possible, this distinction is made in the following sections. Nevertheless, we advise checking the handbook of
the dome that is to be controlled, to find out which controls are actually capable of interpretation.
6.10.3 Connecting the hardware to the dome

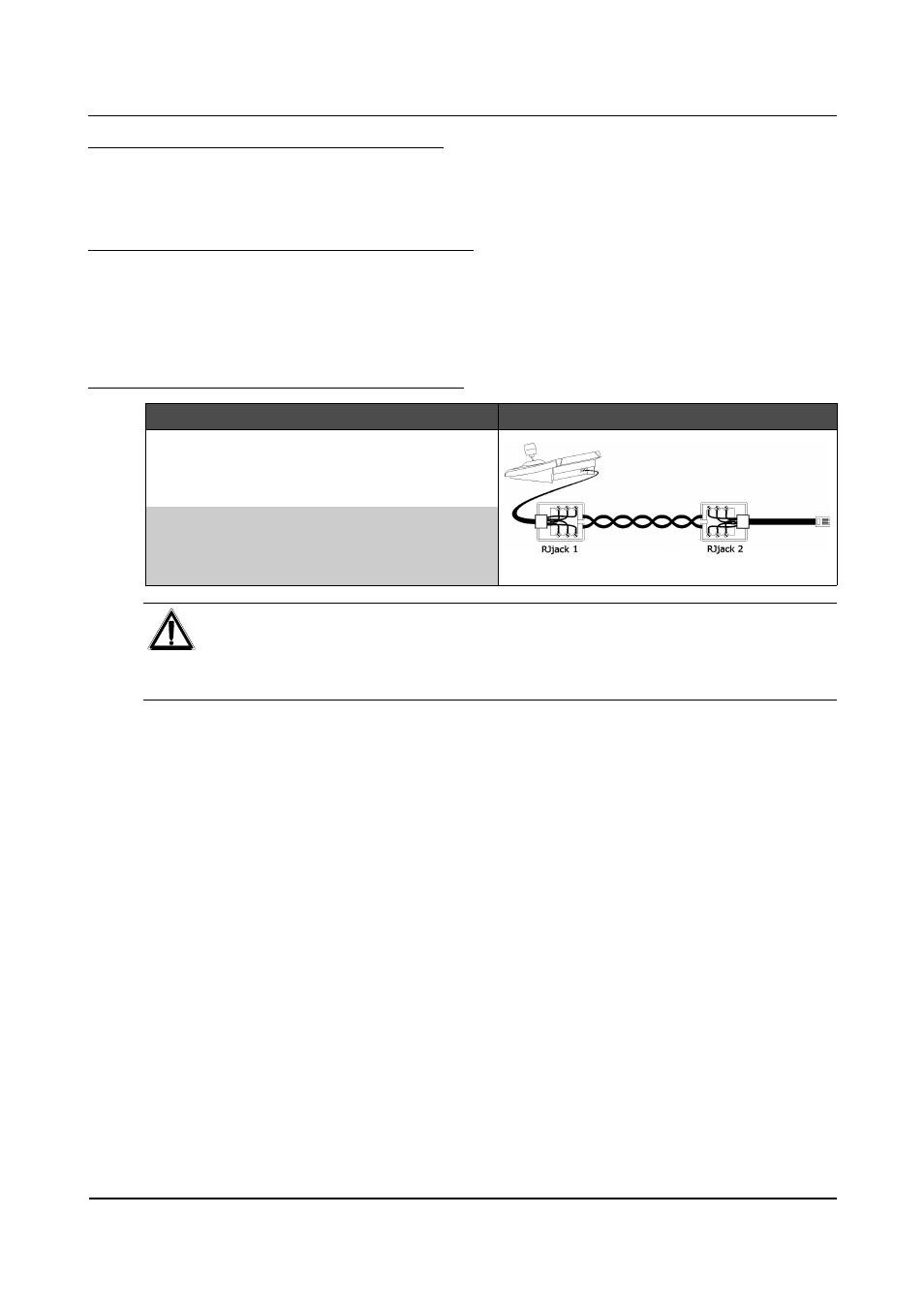

DCT RJjack1 RJjack2 DOME Connection diagram
RS485A white yellow RS485A
RS485B yellow green RS485B
WARNING
Even though the two Panasonic dome control protocols (Panas600 and Panas850) are compatible
to a certain extent, choosing the more appropriate protocol will improve control of the dome.
Set “Conventional Protocol ”, LOCAL (not REMOTE)
8 data bits, no parity, 1 stop bit , Full Duplex Wait time = 0
