Telemetry
Protocol
Start Patrol Stop Patrol Toggle Patrol
No. Function No. Function No. Function
Vcl 1..5
1: Start Tour 1
2: Start Tour 2
3: Start Tour 3
4: Start Tour 4
5: Start Last Tour select.
0 Stop Tour -- --
Videotec 0..1
0: Start Standard Patrol
1: Start S.A: Patrol
0..1
0: Stop Standard Patrol
1: Stop S.A. Patrol
0..1
0: Toggle Standard Patrol
1: Toggle S.A. Patrol
(1)
Only with the Eneo VKR matrix connected to the Video line.
WARNING
Before assigning one or more functions to a key, make sure that the protocol used by the device
is able to manage such controls. If not, when the key is pressed nothing will happen.

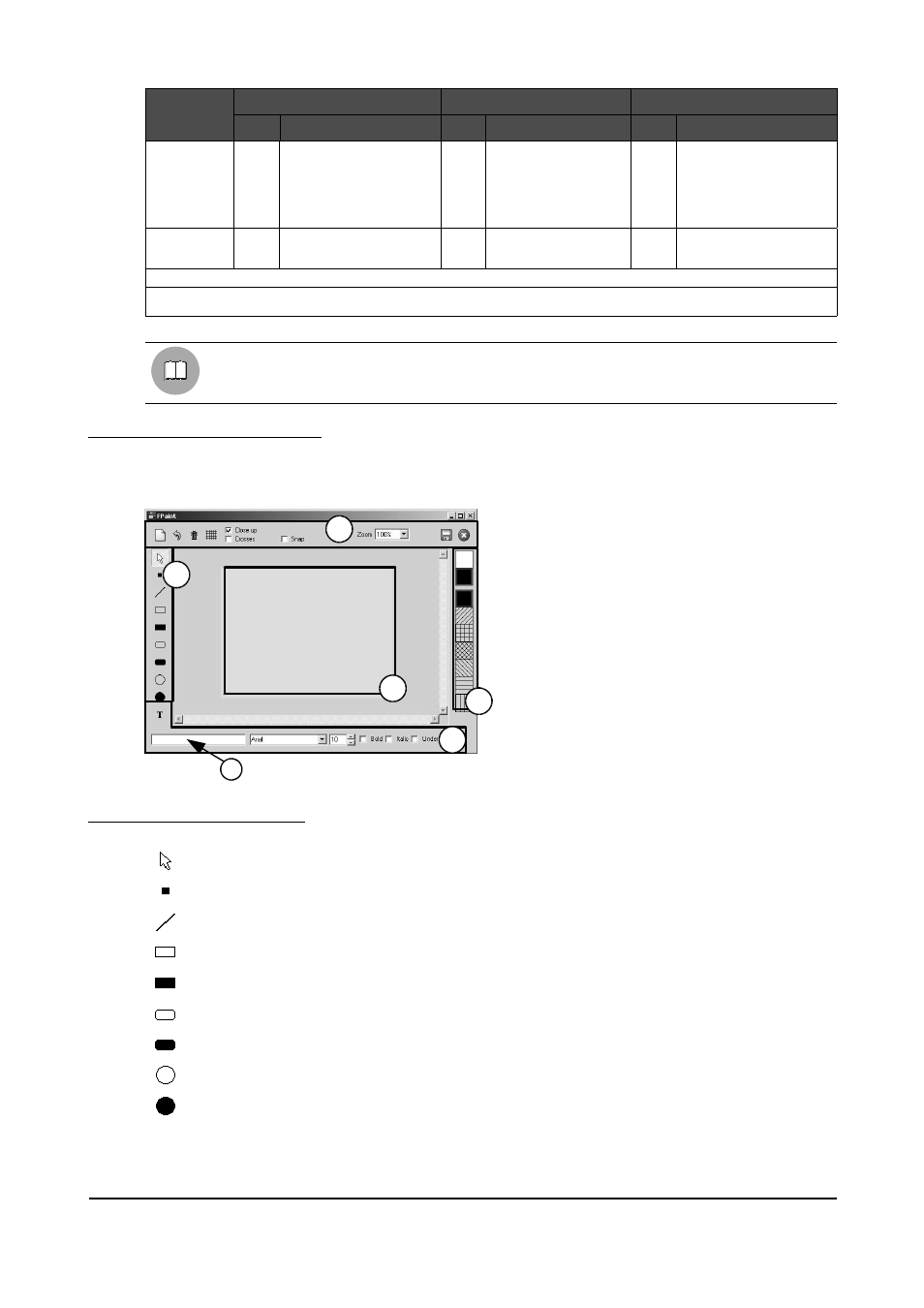

7.4.3.10 “Edit image” window
In this section of the programme it is possible to design or modify the backgrounds of the maps.
The window comprises 5 areas: the graphics area corresponding to the map background, the draw functions
area, the general tools area, the Colour/filling area and the text area with the text box
1. Graphics area
2. Draw function area
3. General tool area
4. Colour/filling area
5. Text area
6. Text box
7.4.3.10.1 Draw functions area
Select an object present in the image with the possibility of moving it or re-sizing it
Free form drawing
Draw a straight line
Draw an empty rectangle
Draw a filled rectangle
Draw an empty rectangle with rounded corners
Draw a filled rectangle with rounded corners
Draw an empty ellipse
Draw a full ellipse
Page 158 of 176 MNVADCT03_0716
3
2
1
4
5
6
