4.2.4.1.1
Cameras connected to a matrix

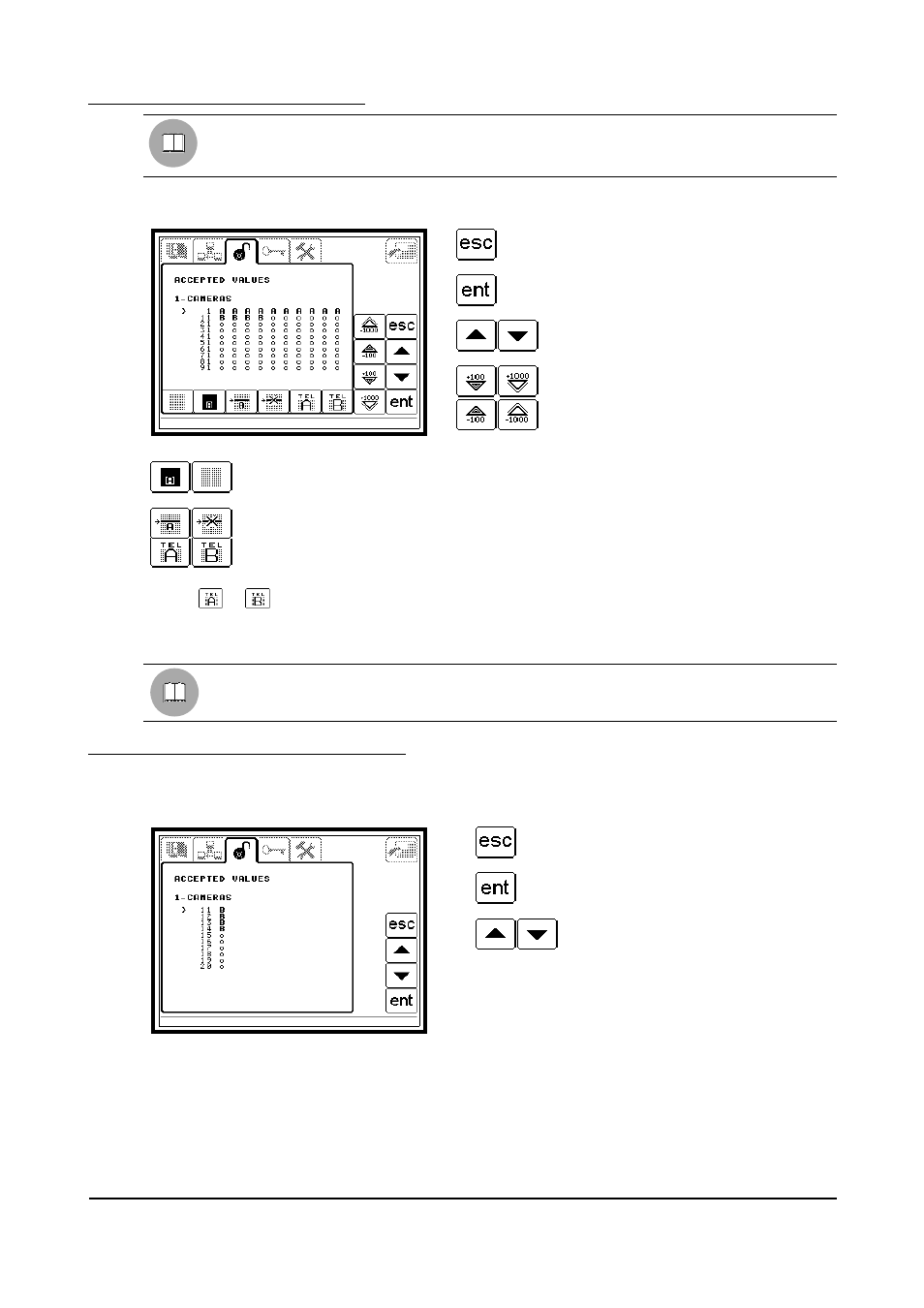

The screen will have this appearance only if the COMMUNICATIONS-VIDEO-Type parameter
has been associated with a video matrix or with no Type of VIDEO (connection only via
TELEMETRY A or B.
It is possible to manage 10000 accepted camera values.
Exit menu key
Key for entering the menu to edit individual
cameras
Cursor shift keys
Keys for moving in the camera field
Keys for activating/deactivating all the cameras on the page
Keys for activating/deactivating the whole line corresponding to the cursor position
Keys for selecting telemetry A/B
Use the
or
key to select the desired telemetry and proceed to activate the cameras using the row or
page keys. For activation/deactivation of individual cameras position the cursor on the desired line and press
the “
ent
” key to enter the menu for setting individual cameras.
Setting a camera number greater than the physical limits of the connected devices will be accepted
but will have no effect on the devices themselves.
4.2.4.1.2
Single cameras connected to a matrix
Position the cursor to correspond with the camera to be modified and press the “
ent
” key.
The letter corresponding to the number will change, showing either the letter “A” (telemetry A), “B”
(telemetry B) or “
|
” (camera disabled).
Exit menu key
Edit camera key
Cursor shift keys
