6.10.4 Configuration

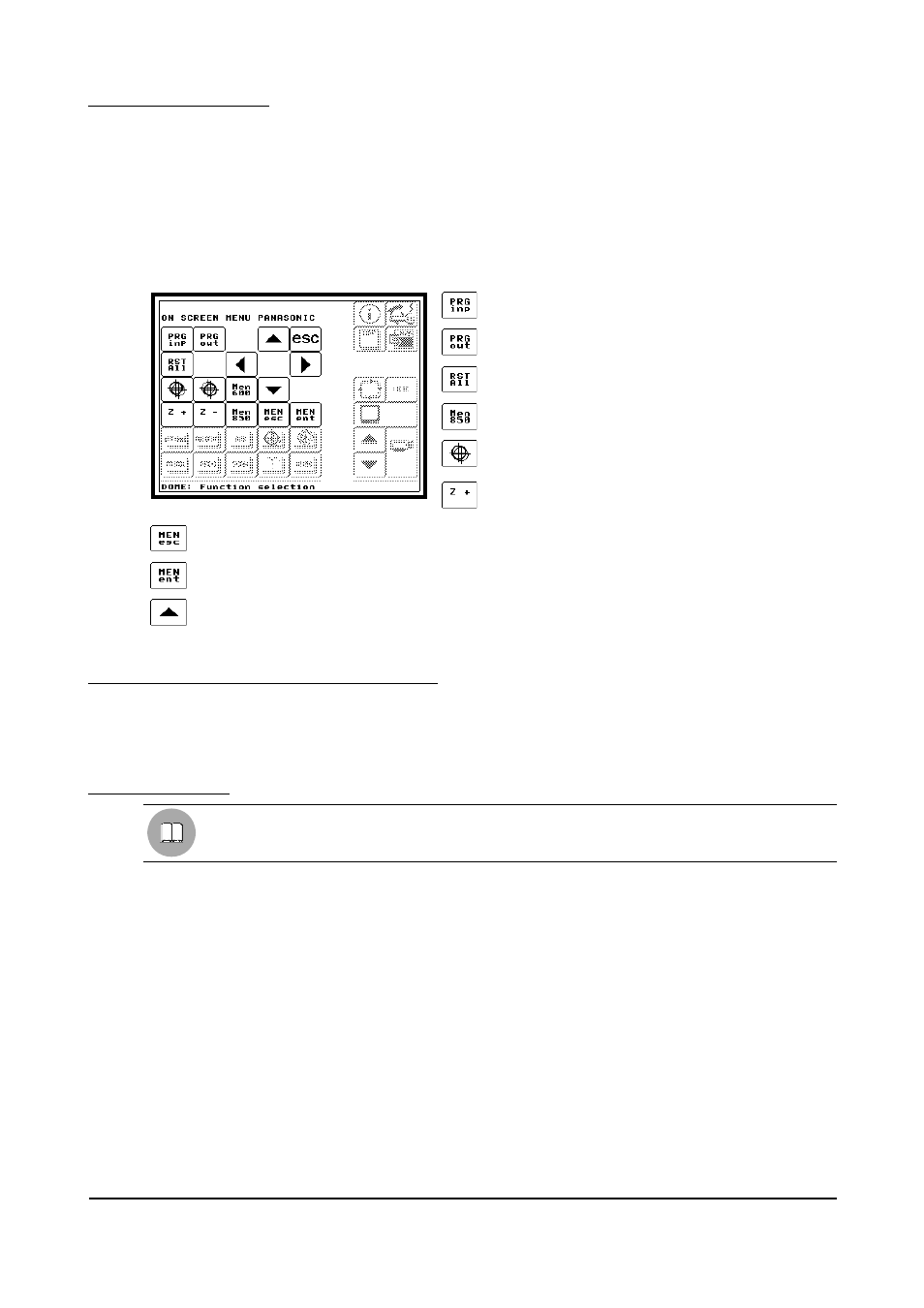

The dome is mainly configured by On Screen Menu
Some parameters can be configured by inserting a special code.
For all dome configuration operations it is necessary to enable the "Setup telemetry" FUNCTION (see §
4.2.4.5 - Functions, page 35).
Follow the general procedure to connect the dome directly to the keyboard and a monitor to the dome video
OUT (see § 6.19 - Operating procedure for setting a dome/receiver, page 137).
Go to the OSM configuration page (see § 6.1.5 - Layout of the configuration menus, page 76) where it is
possible to make the settings for the various parameters.
ENTER PROGRAMMING
To enter the dome OSD menu.
EXIT PROGRAMMING
To exit the dome OSD menu.
RESET ALL
Reset all.
600/850 SPECIAL MENU
To enter the SPECIAL menu for the dome (camera).
FOCUS NEAR/FAR
To activate the FOCUS NEAR and FOCUS FAR.
ZOOM+/-
To activate the ZOOM+ and ZOOM- functions
ESC MENU
To exit the submenus.
ENTER MENU
To enter the submenus and confirm the changed s,ettings.
DIRECTION ARROWS
Up, Down, Left and Right arrows for moving around the menus.
6.10.5 Autoflip, Autopan, Aux, Focus, Iris
All these functions can be loaded by pressing the specific keys in the control menu area of the Main menu (see
§ 4.4 – Control menu area, page 45).
Refer to § 9.1 – Functions assigned to the most common graphics keys, page 164 and § 9.2.1 – Dome, page
165 to check which functions are available for the dome.
6.10.5.1 Autopan
The AUTOPAN function works differently depending on the “AUTO PAN KEY” setting in the
OSM.
