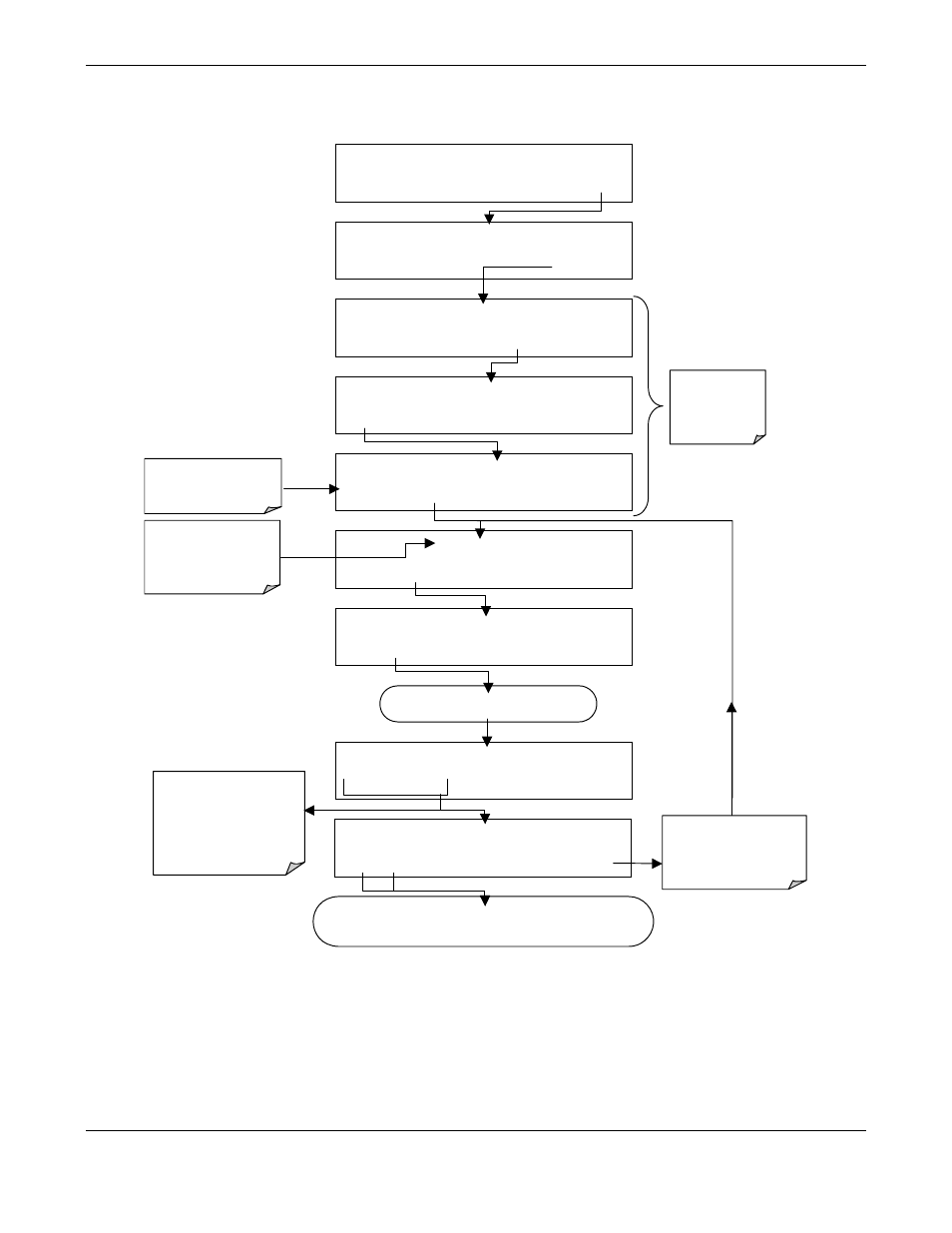

Press the following keys to select a communication mode for a one of the COMM Ports, such as the
following example where HESSEN PROTOCOL mode is enabled:
Continue pressing next until …
SETUP X.X PRIMARY SETUP MENU
CFG DAS RNGE PASS CLK MORE EXIT
SETUP X.X SECONDARY SETUP MENU
COMM VARS DIAG ALRM EXIT
SAMPLE* RANGE = 500.000 PPM CO2 =X.XXX
< TST TST > CAL SETUP
SETUP X.X COMMUNICATIONS MENU
ID COM1 COM2 EXIT
SETUP X.X COM1 MODE:0
SET> EDIT EXIT
SETUP X.X COM1 QUIET MODE: OFF
NEXT OFF ENTR EXIT
SETUP X.X COM1 HESSEN PROTOCOL : ON
PREV NEXT ON ENTR EXIT
SETUP X.X COM1 HESSEN PROTOCOL : OFF
PREV NEXT OFF ENTR EXIT
Continue pressing the NEXT and PREV keys to select any other
modes you which to enable or disable
SAMPLE ENTER SETUP PASS : 818
8 1 8 ENTR EXIT
Use PREV and NEXT
keys to move between
available modes.
A mode is enabled by
toggling the ON/OFF
key.
Select which COM
port to configure
EXIT returns
to the
previous
menu
ENTR key accepts the
new settings
EXIT key ignores the
new settings
The sum of the mode
IDs of the selected
modes is displayed
here
