Model GFC7000E Instruction Manual Optional Hardware and Software
04584 Rev A1 37
5. OPTIONAL HARDWARE AND SOFTWARE
This section includes a brief description of the hardware and software options available for the
Model GFC7000E Gas Filter Correlation Carbon Dioxide Analyzer. For assistance with ordering
these options please contact the Sales department of Teledyne – Advanced Pollution Instruments
at:
TEL: 626-961-9221
TEL: 626-934-1500
FAX: 626-961-2538
WEB SITE: www.teledyne-ai.com
5.1. Rack Mount Kits (Options 20a, 20b & 21)
Option Number Description
OPT 20A Rack mount brackets with 26 in. chassis slides.
OPT 20B Rack mount brackets with 24 in. chassis slides.
OPT 21 Rack mount brackets only
Each of these options, permits the Analyzer to be mounted in a standard 19" x 30" RETMA rack.
5.2. Current Loop Analog Outputs (Option 41)
This option adds isolated, voltage-to-current conversion circuitry to the analyzer’s analog outputs.
This option may be ordered separately for any of the analog outputs, it can be installed at the
factory or added later. Call Teledyne Instruments sales for pricing and availability.
The current loop option can be configured for any output range between 0 and 20 mA.
Information on calibrating or adjusting these outputs can be found in Section 6.9.4.9.

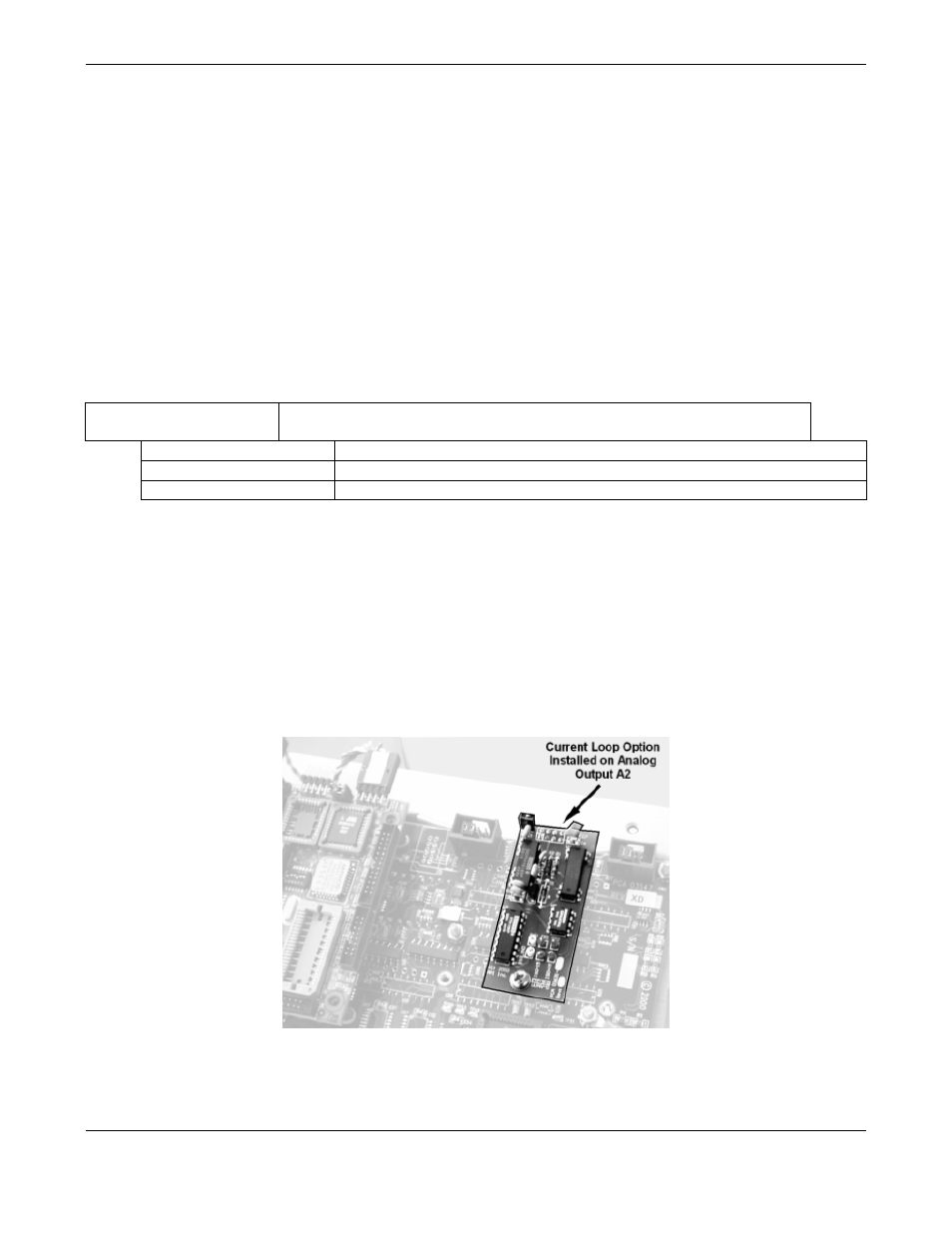

Figure 5-1: Current Loop Option Installed on the Motherboard
