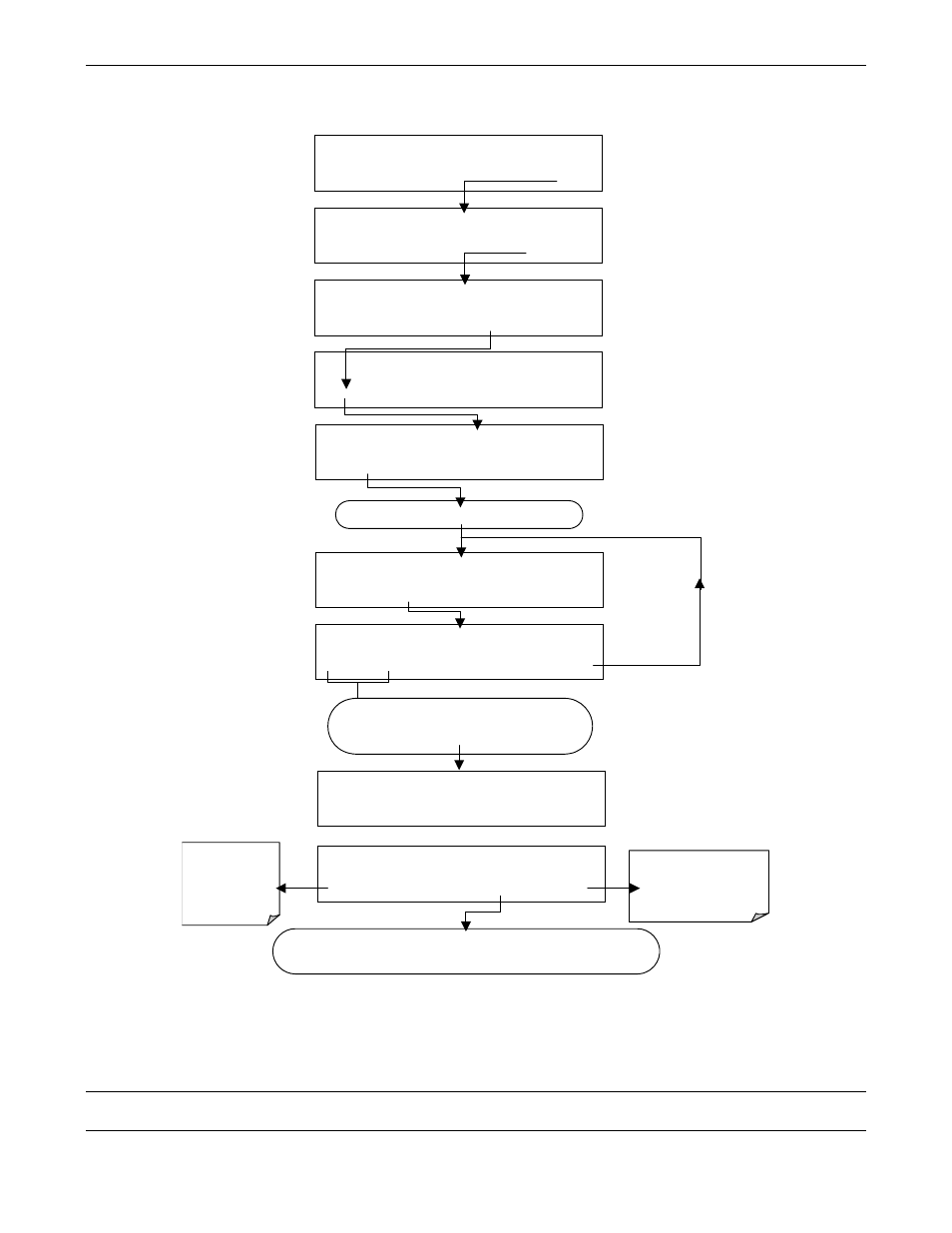

To assign or reset the status flag bit assignments, press:
SETUP X.X SECONDARY SETUP MENU
COMM VARS DIAG ALRM EXIT
SAMPLE ENTER SETUP PASS : 818
8 1 8 ENTR EXIT
SETUP X.X PRIMARY SETUP MENU
CFG DAS RNGE PASS CLK MORE EXIT
SAMPLE* RANGE = 500.000 PPM CO2 =X.XXX
< TST TST > CAL SETUP
SETUP X. HESSEN STATUS FLAGS
SET> EDIT EXIT
SETUP X.X COMMUNICATIONS MENU
ID HESN COM1 COM2 EXIT
SETUP X. SYNC WARNING: 0000
PREV NEXT EDIT PRNT EXIT
Repeat pressing SET> until …
SETUP X. SYSTEM RESET: 0000
PREV NEXT EDIT PRNT EXIT
The and
CH> keys move
the [ ] cursor left
and right along
the bit string.
Repeat pressing NEXT or PREV until the desired
message flag is displayed. See Table 6-27.
For xxample …
ENTR key accepts the
new settings
EXIT key ignores the
new settings
SETUP X. SYSTEM RESET: [0]000
[0] ENTR EXIT
Press the [?] key repeatedly to cycle through the available character set: 0-9
Note: Values of A-F can also be set but are meaningless.
6.13.4.8. Instrument ID Code
Each instrument on a Hessen Protocol network must have a unique ID code. The MGFC7000E is
programmed with a default ID code of 360. To change this code see Section 6.10.1
