Model GFC7000E Instruction Manual Operating Instructions
04584 Rev A1 109

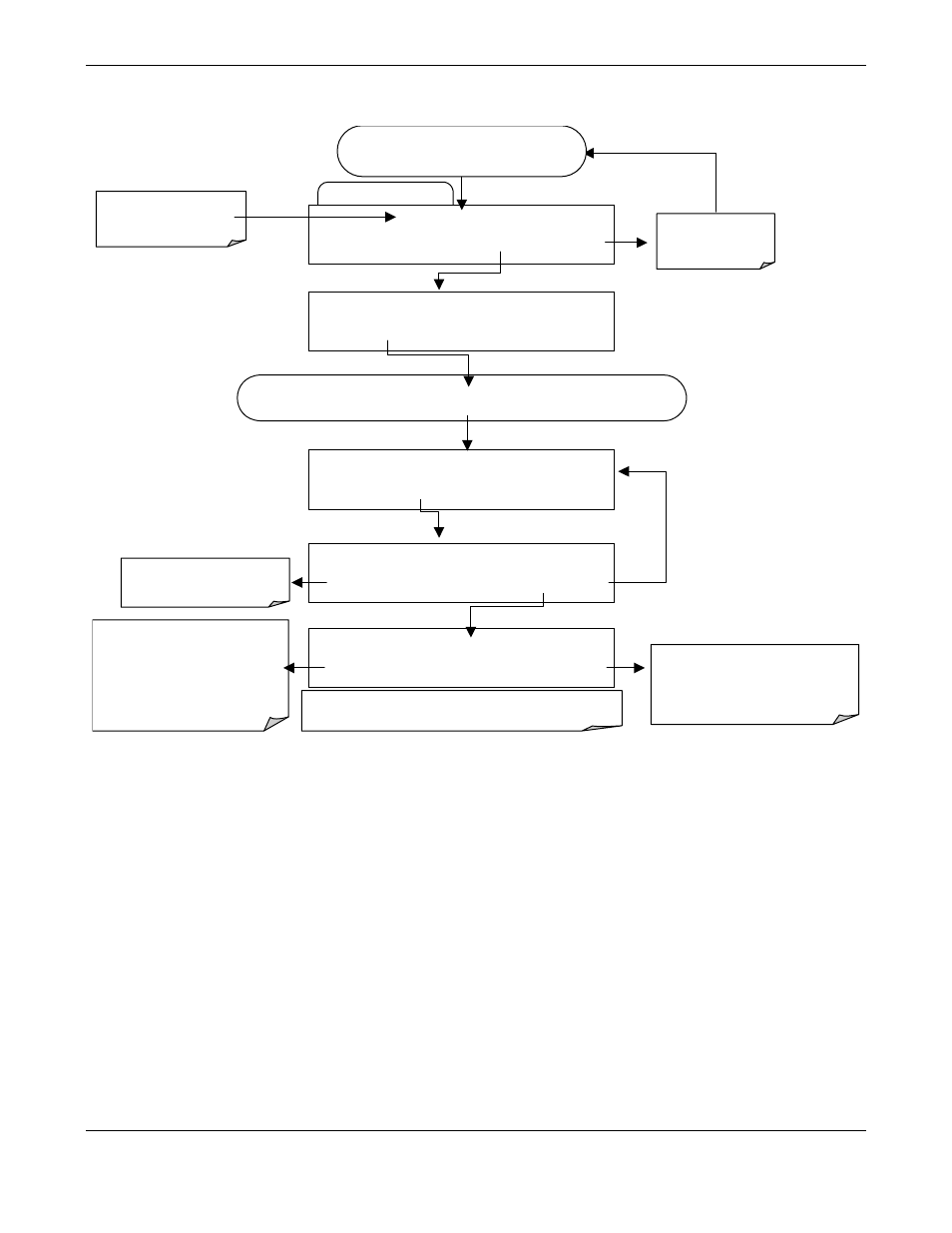

To define the REPORT PERIOD, follow the instruction shown in section 6.12.2.2 then press:
Edit Data Channel Menu
SETUP X.X 0) CONC: ATIMER, 1, 900
PREV NEXT INS DEL
EDIT PRNT EXIT
SETUP X.X NAME:CONC
SET> EDIT PRINT EXIT
Press SET> key until you reach REPORT PERIOD …
SETUP X.X REPORT PERIODD:DAYS:0
0 0 0 ENTR EXIT
IIf at any time an illegal entry is selected (e.g., days > 366)
the ENTR key will disappear from the display.
SETUP X.X REPORT PERIODD:TIME:01:01
0 1 0 0 ENTR EXIT
SETUP X.X REPORT PERIOD:000:01:00
EDIT PRINT EXIT
Exits to the main
Data Acquisition
menu.
ENTR accepts the new string and
returns to the previous menu.
EXIT ignores the new string and
returns to the previous menu.
Press keys to set hours
between reports in the format :
HH:MM (max: 23:59). This is a
24 hour clock . PM hours are 13
thru 23, midnight is 00:00.
Example 2:15 PM = 14:15
Set the number of days
between reports (0-366).
Use the PREV and NEXT
keys to scroll to the data
channel to be edited.
From the DATA ACQUISITION menu
(see Section 6.12.2.2)
6.12.2.6. Number of Records
The number of data records in the MGFC7000E is limited to about a cumulative one million data
points in all channels (one megabyte of space on the disk-on-chip). However, the actual number
of records is also limited by the total number of parameters and channels and other settings in the
iDAS configuration. Every additional data channel, parameter, number of samples setting etc. will
reduce the maximum amount of data points somewhat. In general, however, the maximum data
capacity is divided amongst all channels (max: 20) and parameters (max: 50 per channel).
The iDAS will check the amount of available data space and prevent the user from specifying too
many records at any given point. If, for example, the iDAS memory space can accommodate 375
more data records, the ENTR key will disappear when trying to specify more than that number of
records. This check for memory space may also make an upload of an iDAS configuration with
APICOM or a Terminal program fail, if the combined number of records would be exceeded. In this
case, it is suggested to either try from the front panel what the maximum number of records can
be or use trial-and-error in designing the iDAS script or calculate the number of records using the
DAS or AICOM manuals. To set the number of records for one channel from the front panel, press
SETUP-DAS-EDIT-ENTR and the following key sequence.
