Example 3 shows a program that transfers eight words of data from BANK2 to BANK0 data memory in units
of four words, as shown in Fig. 6-4. If the general-purpose register is allocated in a fixed row address, for
example, only in row address 0 of BANK0, instructions are needed to transfer all of the eight words to the
register and then store them into data memory. In contrast, if the row address of the general-purpose register
is changed using the general-purpose register pointer as shown in example 3, the operation can be completed
simply by executing a storage instruction.

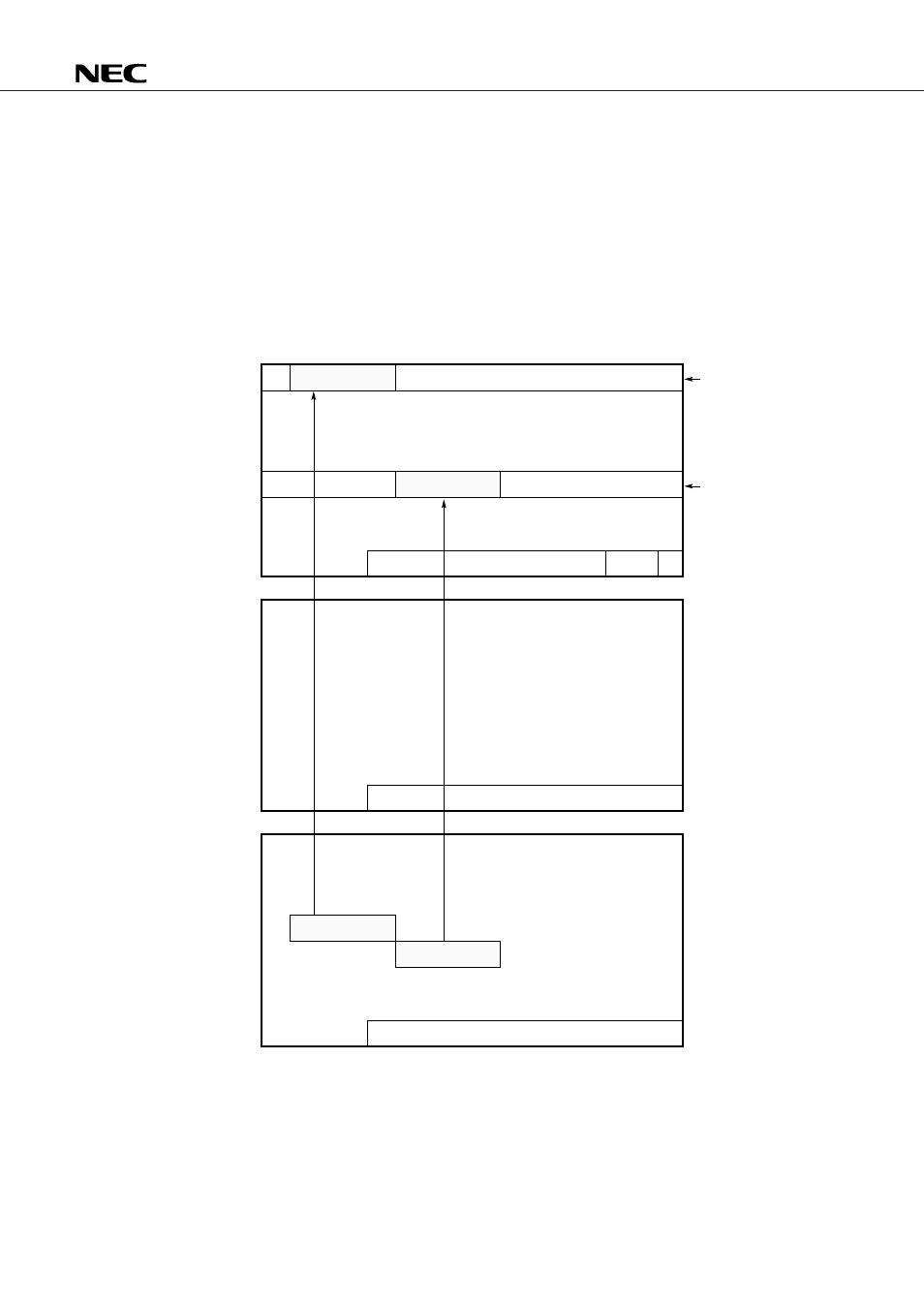

Fig. 6-4 Execution of Instructions in Example 3
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
0
2
3
4
5
6
7
1
RP
BANK0
0
2
3
4
5
6
7
1
BANK1
0
2
3
4
5
6
7
1
BANK2
RP = 0000000B
RP = 0000100B
System register
Column address
Row address
System register
System register
