14. RESET
The reset function is used to initialize device operation.
14.1 RESET BLOCK CONFIGURATION
Fig. 14-1 shows the configuration of the reset block.
Device reset is divided into reset by turning on V DD (power-on reset or V DD reset), and reset by CE pin (CE
reset).
The power-on reset block consists of a voltage detection circuit that detects the voltage applied to the V DD
pin, a power failure detection circuit, and a reset control circuit.
The CE reset block consists of a circuit that detects the rising edge of the signal input to the CE pin, and
a reset control circuit.

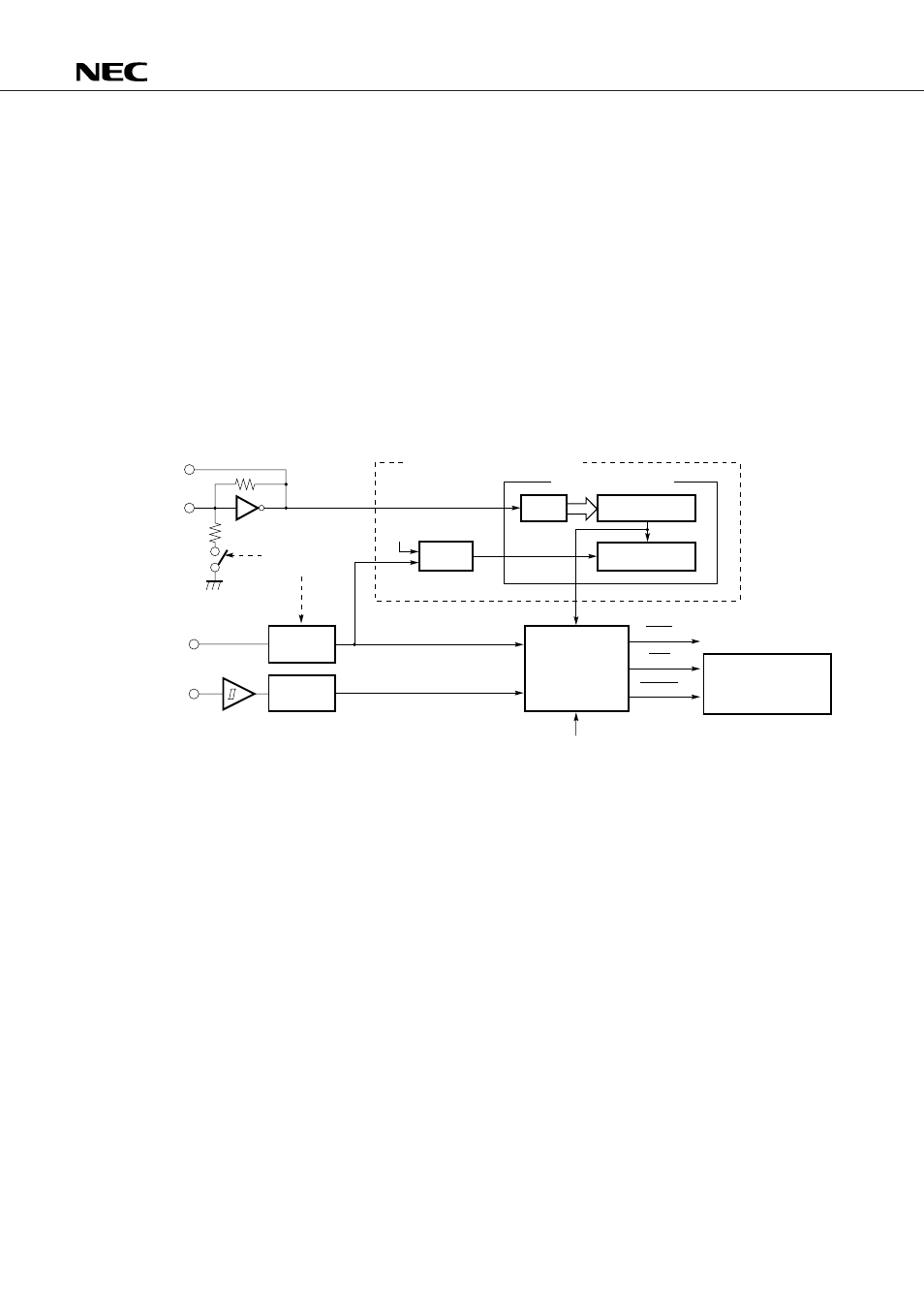

Fig. 14-1 Reset Block
