µ
PD17062
(2) At return from clock-stop state
When returning from the back-up state when clock-stop is used to back-up supply voltage at 2.2 V, V
DD
must be raised to 3.5 V or greater within 50 ms after the CE pin becomes high level.
As shown in Fig. 14-8, return from the clock-stop state is performed by CE reset. Since the power-on clear
voltage is switched to 3.5 V 50 ms after the CE pin is raised, if V
DD
is not 3.5 V or greater at this time, power-
on reset is applied.
The same caution is necessary when V
DD
is dropped.

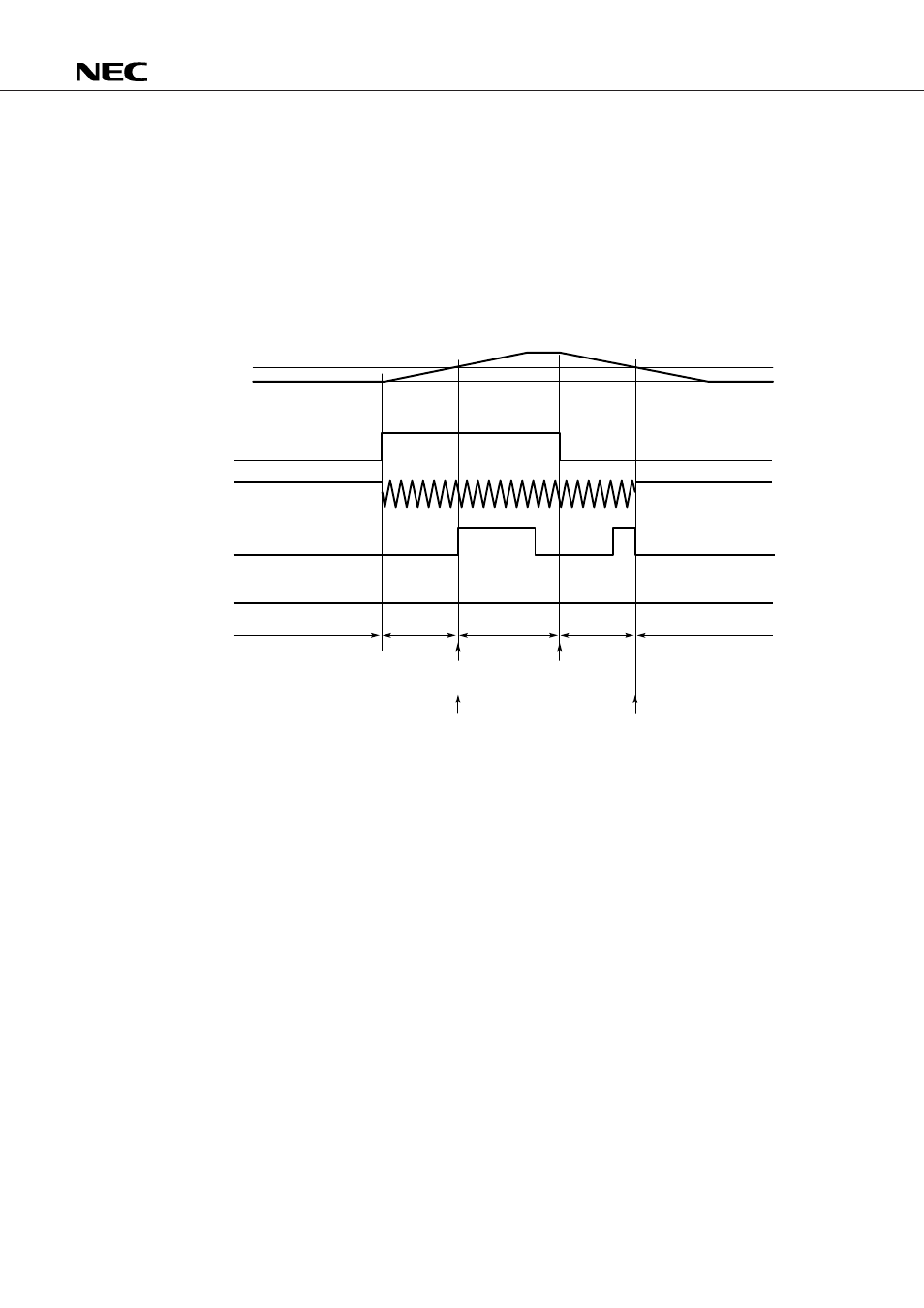

Fig. 14-8 Return from Clock-Stop State
5 V
0 V
X
OUT
V
DD
CE
Power-on
clear signal
Timer carry FF
set pulse
3.5 V
2.2 V
CE = low
processing
Normal operation
Back-up
Back-up caused by
clock stop
Power-on
clear voltage
Halt state
50 ms
CE reset
Program start
STOP
0000B
At this point, the power-on
clear voltage is switched to 2.2 V.
Therefore, V
DD
must not be dropped
below 2.2 V before this point.
At this point, the power-on
clear voltage is switched to 3.5 V.
Therefore, V
DD
must be raised to
3.5 V or greater before this point.
