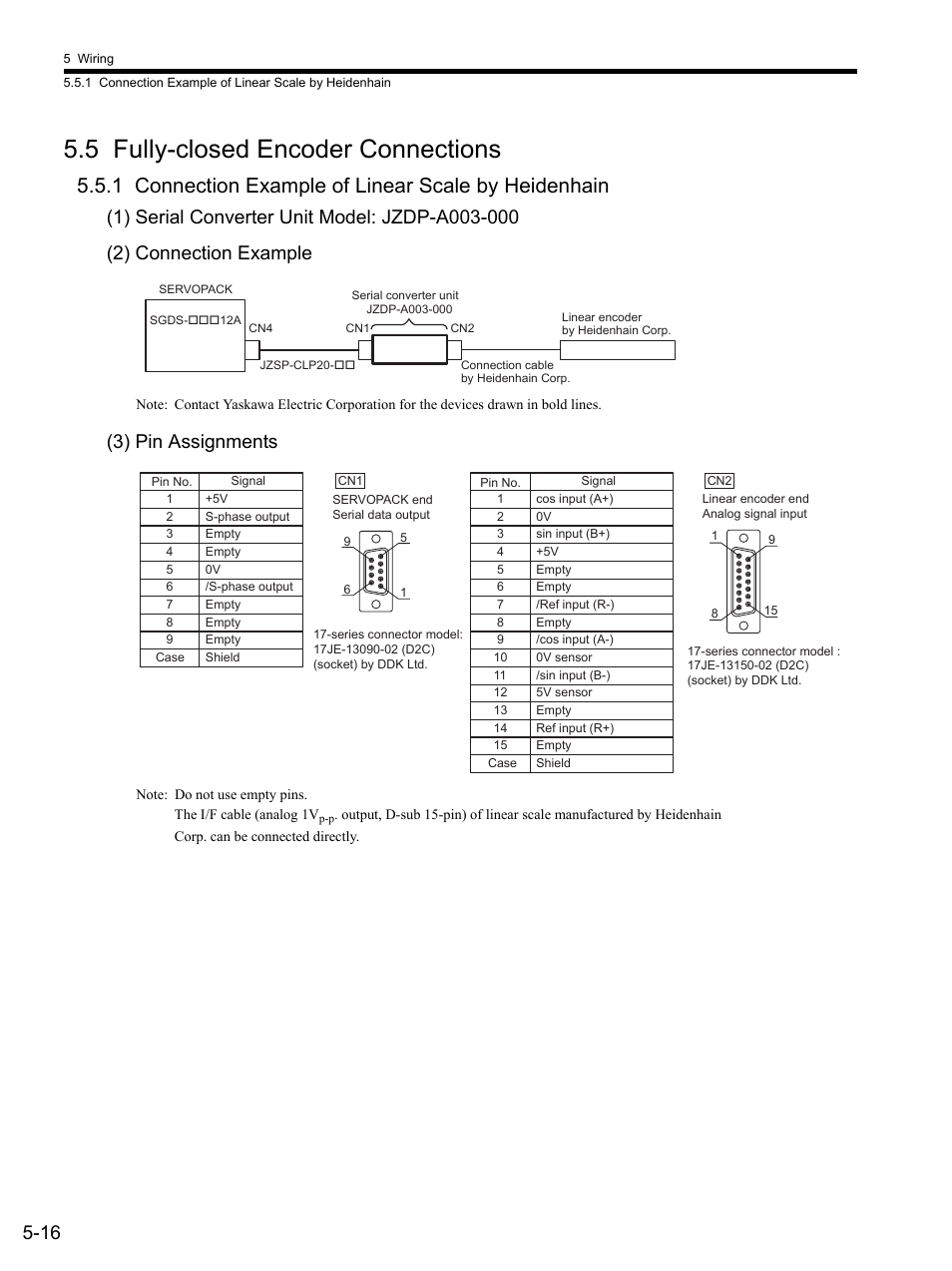

5 fully-closed encoder connections, 1 connection example of linear scale by heidenhain, 1) serial converter unit model: jzdp-a003-000 – Yaskawa SGDS Sigma III Servo Amplifier User Manual

Page 119: 2) connection example, 3) pin assignments, 5 fully-closed encoder con, 1 conn, 5 fully-closed encoder connections -16

5 fully-closed encoder connections, 1 connection example of linear scale by heidenhain, 1) serial converter unit model: jzdp-a003-000 | 2) connection example, 3) pin assignments, 5 fully-closed encoder con, 1 conn, 5 fully-closed encoder connections -16 | Yaskawa SGDS Sigma III Servo Amplifier User Manual | Page 119 / 374 5 fully-closed encoder connections, 1 connection example of linear scale by heidenhain, 1) serial converter unit model: jzdp-a003-000 | 2) connection example, 3) pin assignments, 5 fully-closed encoder con, 1 conn, 5 fully-closed encoder connections -16 | Yaskawa SGDS Sigma III Servo Amplifier User Manual | Page 119 / 374
