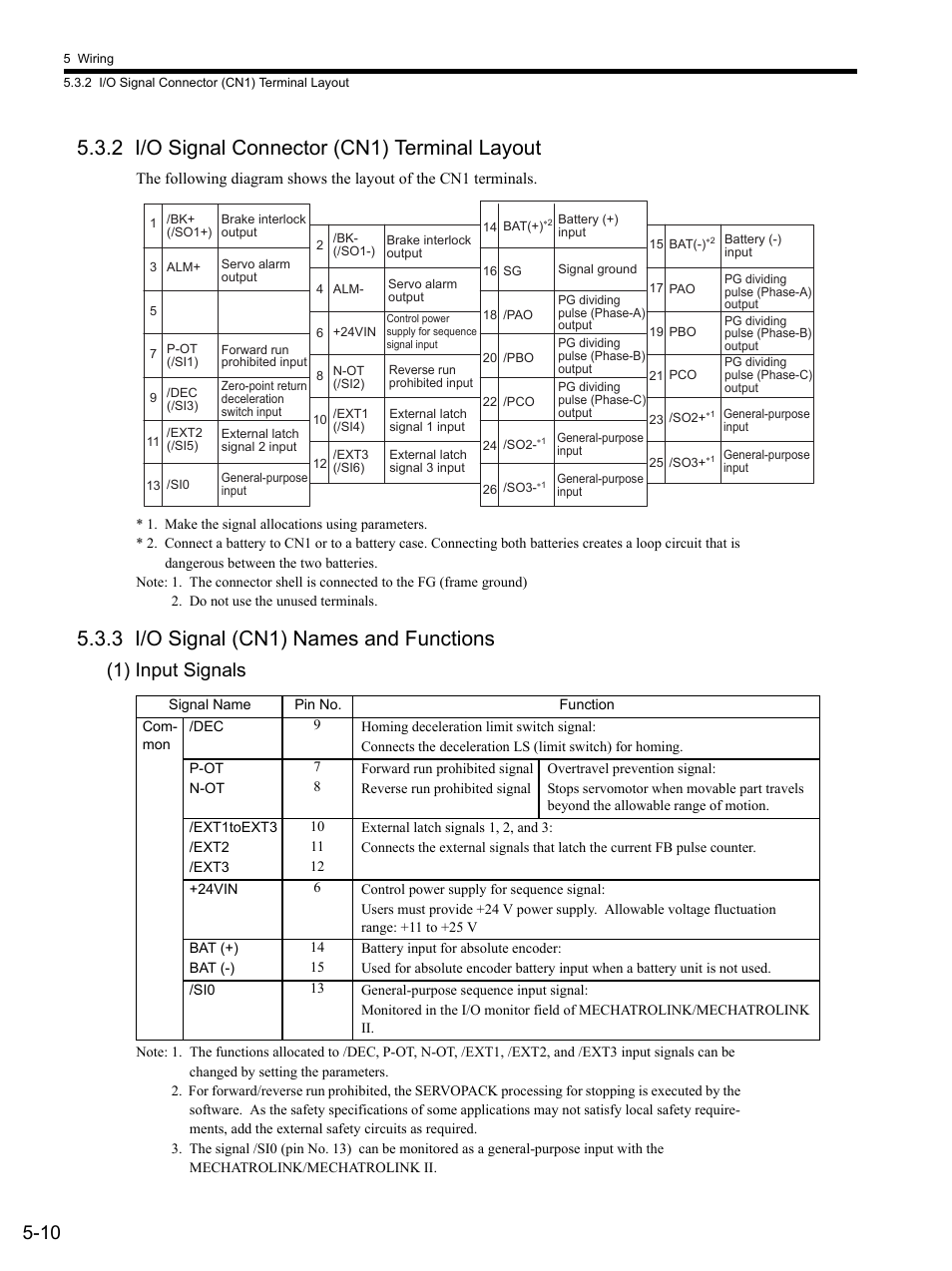

2 i/o signal connector (cn1) terminal layout, 3 i/o signal (cn1) names and functions, 1) input signals – Yaskawa SGDS Sigma III Servo Amplifier User Manual
Page 113: 2 i/o sig, 3 i/o sig
