407
• Check that traffic from Client1 is rate limited to around 128 kbps, so is traffic from Client2.
Dynamic rate limiting configuration example
Network requirements
As shown in Figure 435 , clients access the WLAN through a SSID named service2.
Configure all clients to share 8000 kbps of bandwidth in any direction.

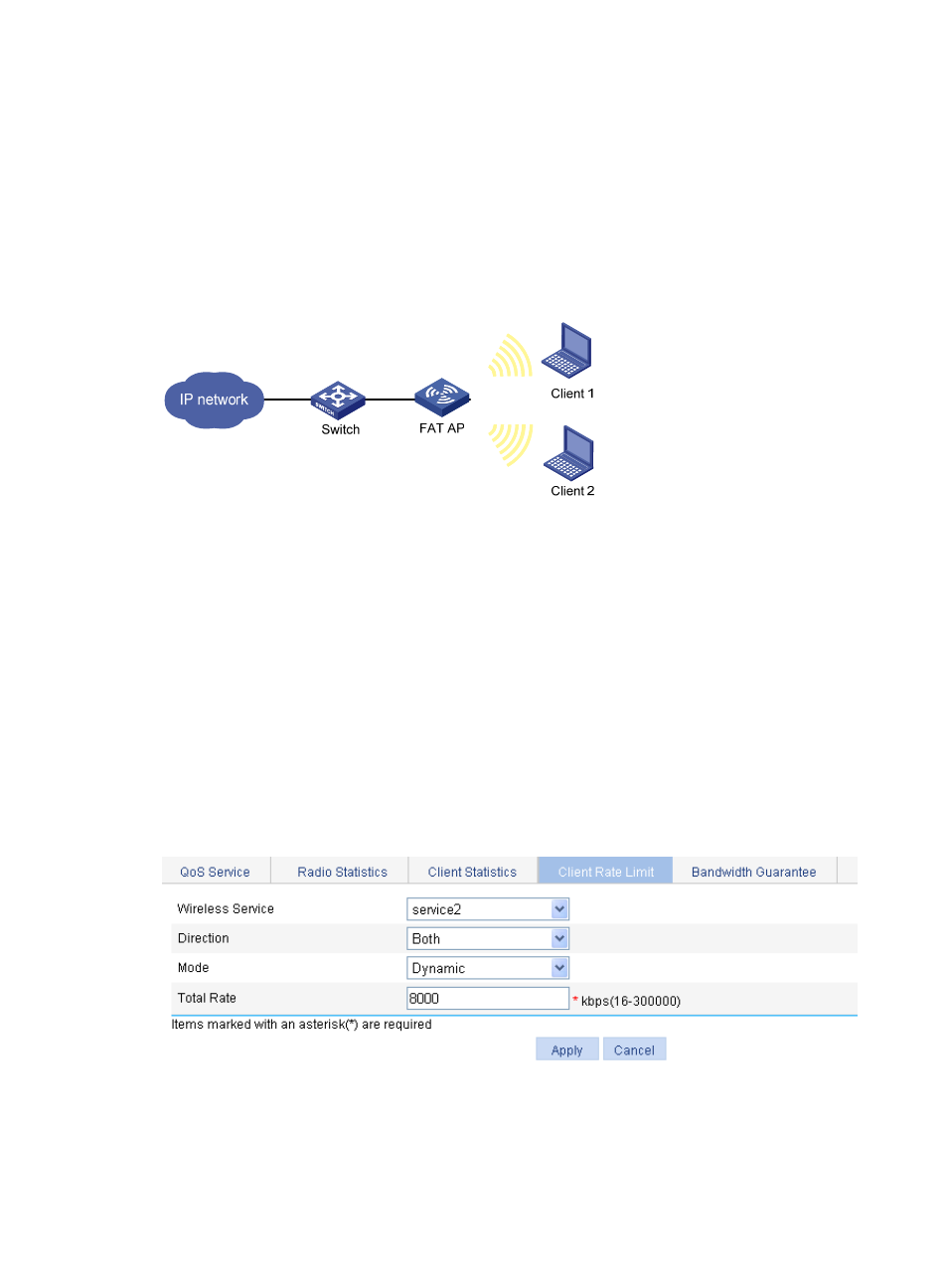

Figure 435 Network diagram
Configuration procedure
1. Configure the wireless service.
For the configuration procedure, see "Configuring wireless service." You can follow the related
configuration example to configure the wireless service.
2. Configure dynamic rate limiting:
a. Select QoS > Wireless QoS from the navigation tree.
b. Click the Client Rate Limit tab.
c. Click Add to enter the page for configuring rate limit settings for clients.
d. Select service2 from the wireless service list. Select Both from the Direction list. Select Dynamic
from the Mode list. Enter 8000 in the Total Rate field.
e. Click Apply.
Figure 436 Configuring dynamic rate limiting
Verifying the configuration
Check that:
