95
Creating a VLAN
1. Select Network > VLAN from the navigation tree. The system automatically selects the VLAN tab
and enters the page as shown in
Figure 92 .

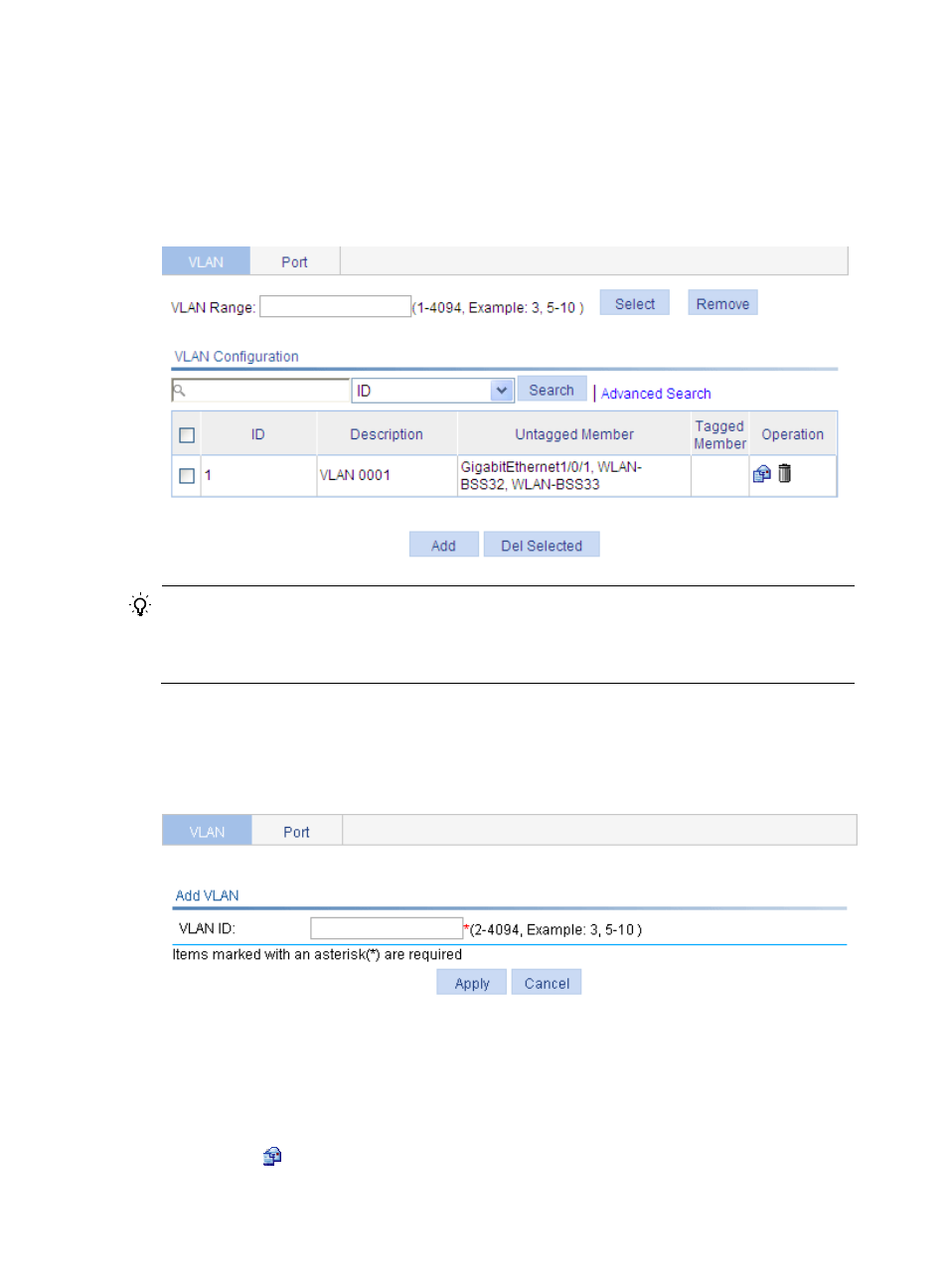

Figure 92 VLAN configuration page
TIP:
To easily configure a specific range of VLANs within a large number of VLANs, enter a VLAN range in the
VLAN Range field and click Select, and all undesired VLANs will be filtered out. If you click Remove, all
VLANs within this range will be deleted.
2. Click Add to enter the page for creating a VLAN, as shown in Figure 93 .
3. Enter the ID of the VLAN you want to create.
4. Click Apply.
Figure 93 Create a VLAN
Modifying a VLAN
1. Select Network > VLAN from the navigation tree. The system automatically selects the VLAN tab
and enters the page as shown in Figure 92 .
2. Click the icon of the VLAN you want to modify to enter the page as shown in Figure 94 .
