305

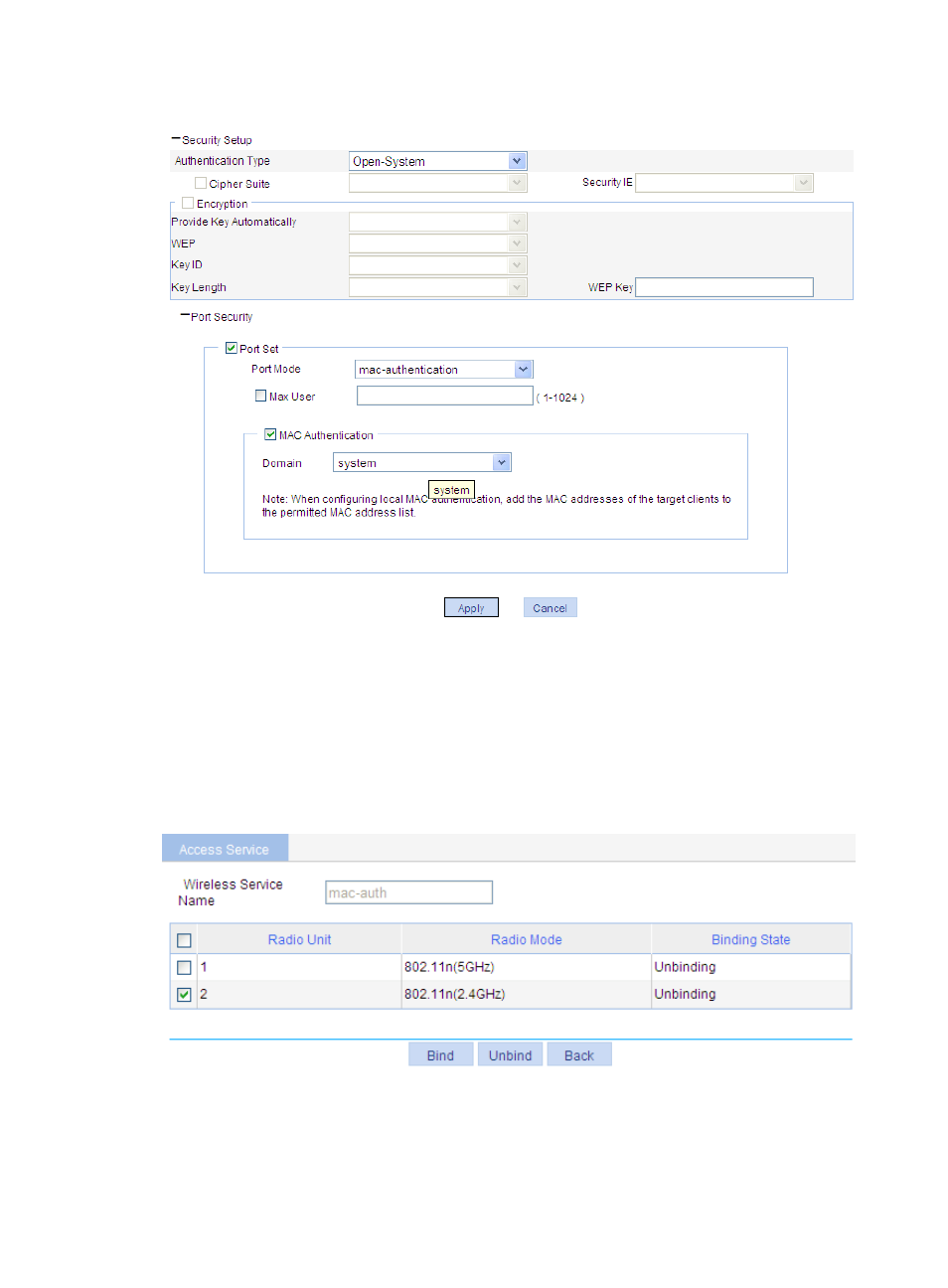

Figure 313 Security setup
4. Bind an AP radio to a wireless service
a. Select Wireless Service > Access Service from the navigation tree.
b. Click the Bind link at the right side of the wireless service mac-auth to enter the page as shown
in
Figure 314 .
c. Select the box with radio mode 802.11n(2.4GHz).
d. Click Bind.
Figure 314 Bind an AP radio
5. Enable the wireless service
a. Select Wireless Service > Access Service from the navigation tree to enter the page as shown
in
Figure 315 .
