H3C Technologies H3C WA3600 Series Access Points User Manual
Page 216
203
4.
Configure the ISP domain to use local authorization for login users:
a.
Select Authentication > AAA from the navigation tree.
b.
Click the Authorization tab.
c.
Select the domain test.
d.
Select the Login AuthZ box and select the authorization method Local.
e.
Click Apply.
A configuration progress dialog box appears.
f.
After the configuration progress is complete, click Close.

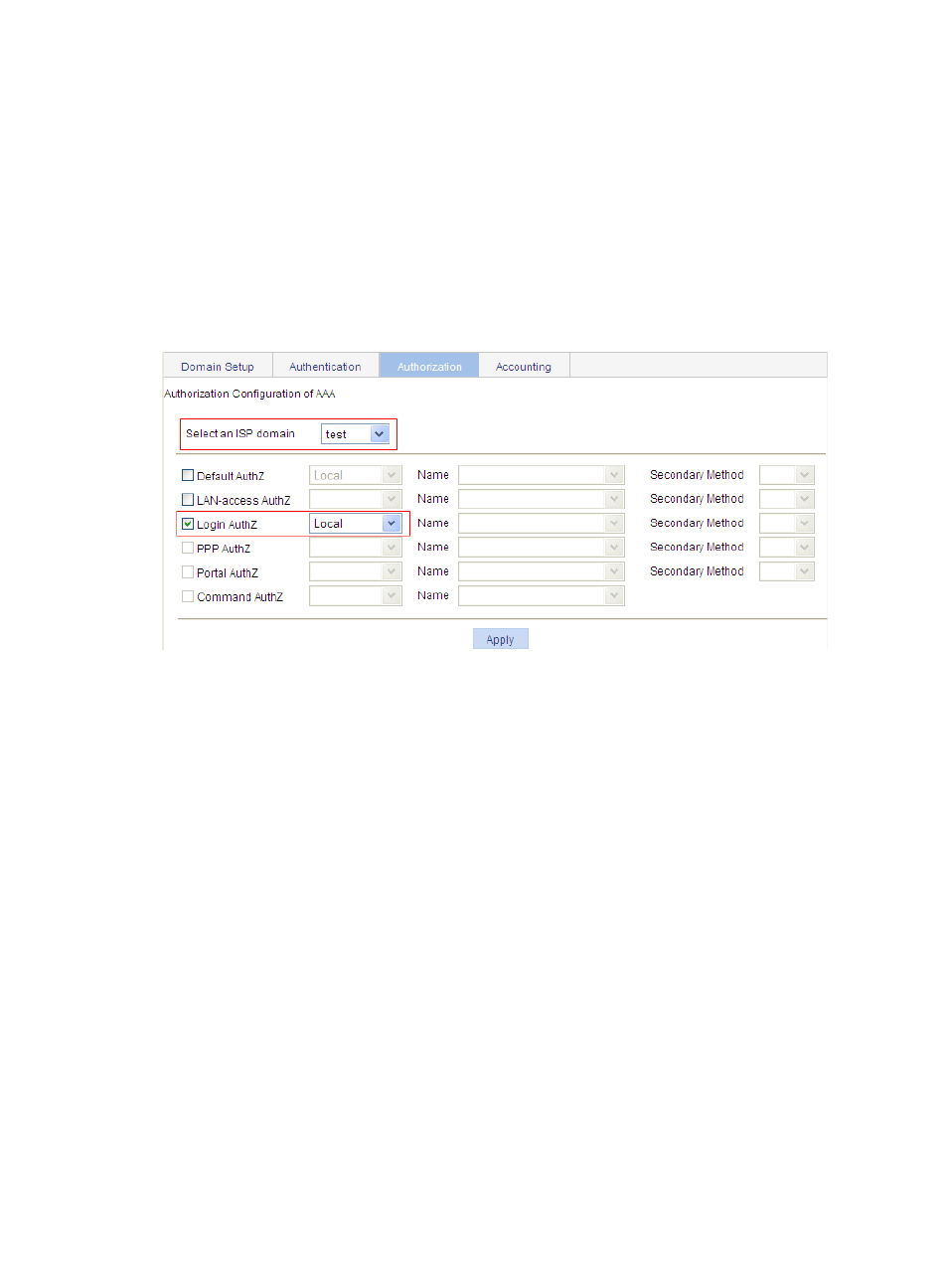

Figure 199 Configure the ISP domain to use local authorization
5.
Log in to the command line interface (CLI), enable Telnet service, and configure the AP to use AAA
for Telnet users.
[AP] telnet server enable
[AP] user-interface vty 0 4
[AP-ui-vty0-4] authentication-mode scheme
[AP-ui-vty0-4] quit
6.
Verify the configuration
Telnet to the AP and enter the username telnet@test and password abcd. You should be serviced as a
user in domain test.
