Chapter 4 Parameters|

Revision Nov. 2008, VLE1, SW V1.03 4-33

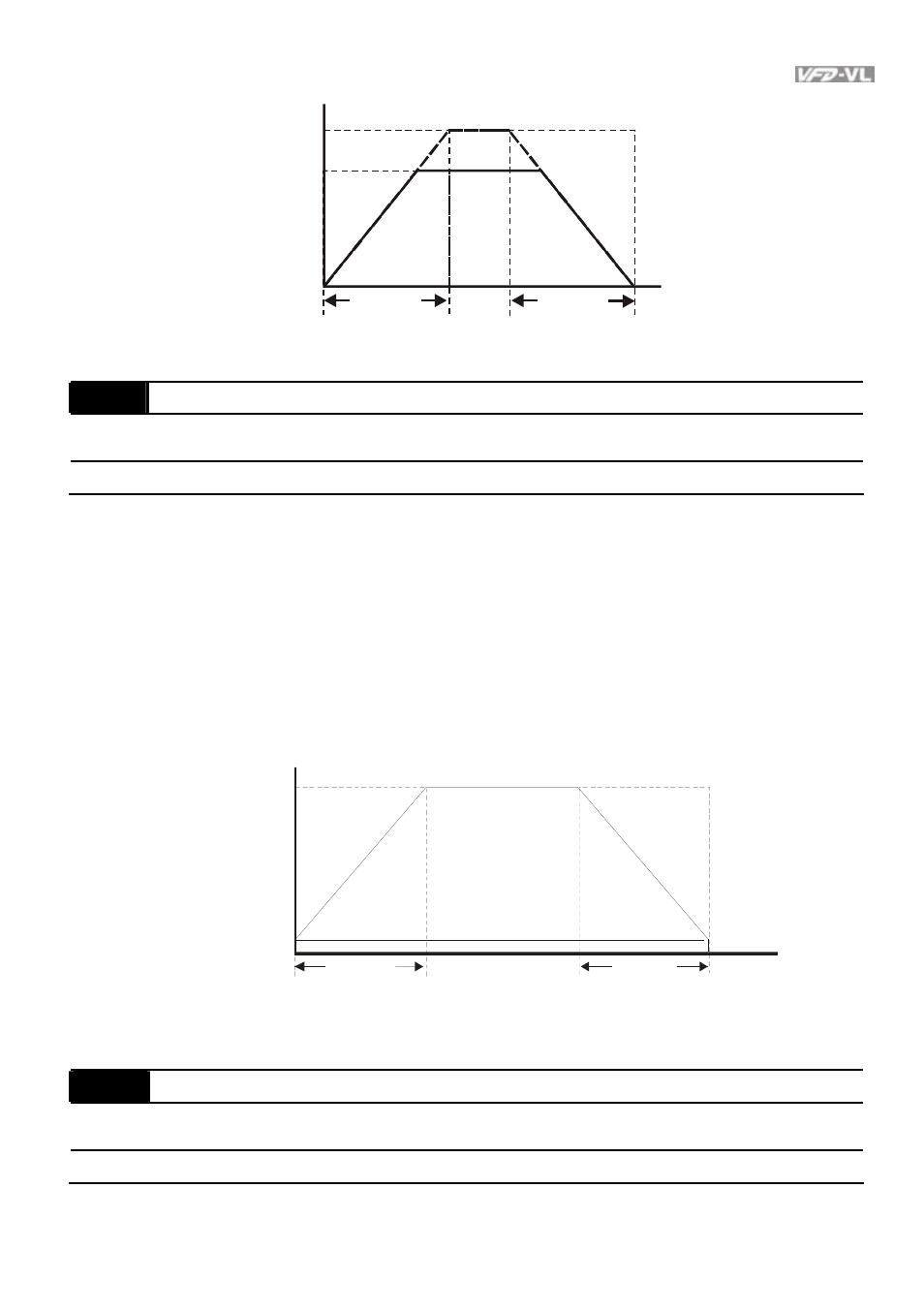

01-00

01-13,15,17,19

01-12,14,16,18

Frequency

Time

Max. Output

Frequency
Frequency

Setting

accel. time

decel. time

Accel./Decel. Time

01-22

JOG Frequency

Unit: 0.01

Control

mode

VFPG

SVC

FOCPG TQCPG FOCPM

Factory setting: 6.00

Settings

0.00~120.00Hz

Both external terminal JOG and key “JOG” on the keypad can be used. When the jog

command is ON, the AC motor drive will accelerate from 0Hz to jog frequency (Pr.01-22).

When the jog command is OFF, the AC motor drive will decelerate from Jog Frequency to zero.

The used Accel./Decel. time is set by the Jog Accel./Decel. time (Pr.01-20, Pr.01-21).

The JOG command can’t be executed when the AC motor drive is running. In the same way,

when the JOG command is executing, other operation commands are invalid except

forward/reverse commands and STOP key on the digital keypad.

F requenc y

Time

01-22
JO G fr equency

01-07
4th output

frequency
setting

01-20

01-21

JO G ac celeration time

JO G dec el er ation time

JO G ac cel./dec el . time

01-23

Switch Frequency between 1st/4th Accel/decel
