Chapter 1 Introduction|
1-2 Revision Nov. 2008, VLE1, SW V1.03
1.1 Receiving and Inspection
This VFD-VL AC motor drive has gone through rigorous quality control tests at the factory before
shipment. After receiving the AC motor drive, please check for the following:
„ Check to make sure that the package includes an AC motor drive, the User Manual/Quick
Start and CD.
„ Inspect the unit to assure it was not damaged during shipment.
„ Make sure that the part number indicated on the nameplate corresponds with the part
number of your order.

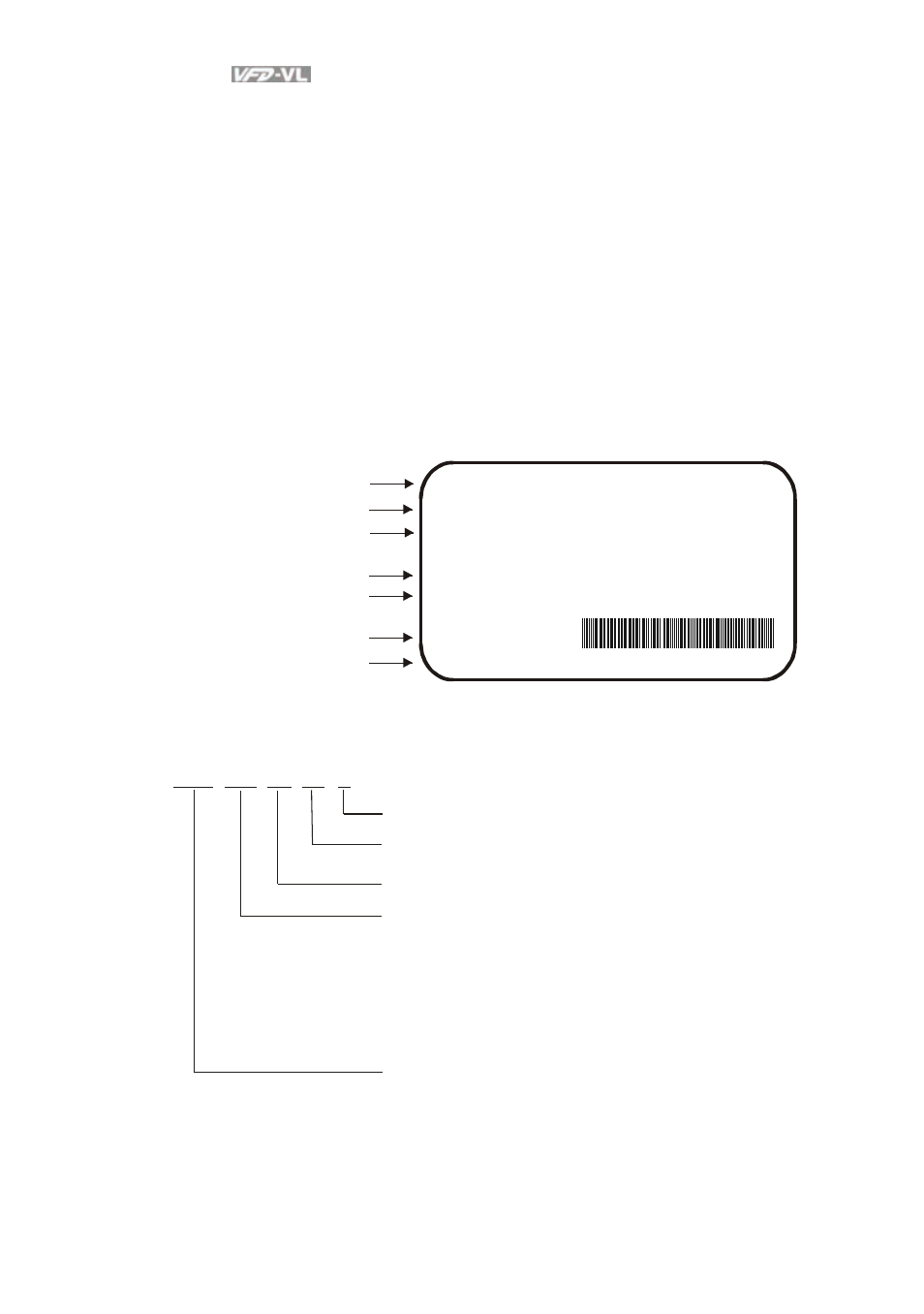

1.1.1 Nameplate Information
Example for 15HP/11kW 230V 3-Phase AC motor drive
AC Drive Model
Input Spec.
Output Spec.
Output Frequency Range
Bar Code
110VL23AT7260002
MODEL
INPUT
OUTPUT
Freq. Range
Version:00.90
:VFD110VL23A
:3PH 180-264V 50/60Hz 43A
:3PH 0-230V 47A (LIFT DUTY)
41.1A(General)
11kW /15HP
:0~120Hz
Software version
Serial Number
1.1.2 Model Explanation
VFD A
Version Type
23
Mains Input Voltage
23: Three phase 230V 43: Three phase 460V
VL 110
Applicable motor capacity
150: 20HP(15kW)
18 5: 2 5 HP(1 8.5 kW )
220: 30 HP(22kW)
055: 7.5HP(5.5kW)
075: 10 HP(7.5kW)
110: 15 HP(11kW)
Series Name ( ariable requency rive) V F D
VFD-VL Series
550: 75HP(55kW)
75 0: 1 00 H P( 75k W)
300: 40HP(30kW)
370: 50 HP(37kW)
450: 60 HP(45kW)
