Chapter 2 Installation and Wiring|
Revision Nov. 2008, VLE1, SW V1.03 2-9
„ Models above 22kW don’t have a built-in brake chopper. Please connect an external
optional brake resistor.
„ When not used, please leave the terminals [+2/B1, -] open.
„ Short-circuiting [B2] or [-] to [+2/B1] can damage the AC motor drive.

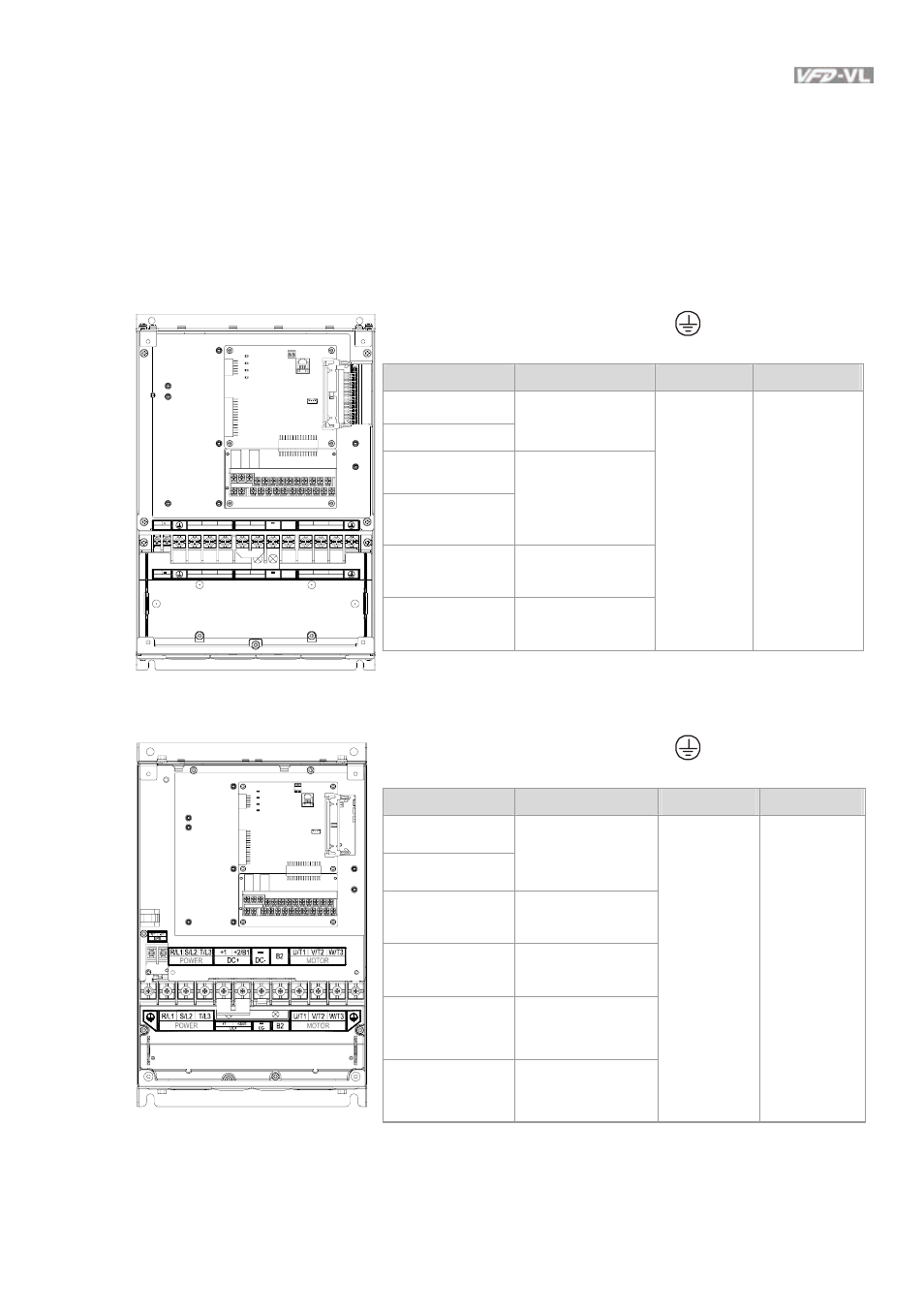

2.3.2 Main Circuit Terminals
Frame C
+/~ R/L1 S/L2 T/L3 B2 +1
DC+ DC- EPS
/~ U/T1 V/T2 W/T3
POWER MOTOR
+2/B1
+/~ R/L1 S/L2 T/L3 B2 +1
DC+ DC- EPS
/~ U/T1 V/T2 W/T3
POWER MOTOR
+2/B1
Main circuit terminals
R/L1, S/L2, T/L3, U/T1, V/T2, W/T3, , +1, +2/B1, -, B2
Models Wire Torque Wire Type
VFD055VL23A
VFD110VL43A
10-6 AWG.
(5.3-13.3mm 2 )
VFD055VL43A
VFD075VL43A
12-6 AWG.
(3.3-13.3mm 2 )
VFD075VL23A
8-6 AWG.
(8.4-13.3mm 2 )
VFD110VL23A
6 AWG.
(13.3mm 2 )
30kgf-cm
(26in-lbf)
Stranded
copper only,
75 o C
Frame D
Main circuit terminals
R/L1, S/L2, T/L3, U/T1, V/T2, W/T3, , +1, +2, -
Models Wire Torque Wire Type
VFD150VL43A
VFD185VL43A
8-2 AWG.
(8.4-33.6mm 2 )
VFD150VL23A
4-2 AWG.
(21.1-33.6mm 2 )
VFD185VL23A
3-2 AWG.
(26.7-33.6mm 2 )
VFD220VL43A
6-2 AWG
(13.3-33.6mm
2
)
VFD220VL23A
3-2 AWG
(26.7-33.6mm 2 )
50Kgf-cm
(43.4 lbf-in)
Stranded
copper only,
75 o C
