Appendix B Accessories|
Revision Nov. 2008, VLE1, SW V1.03 B-43

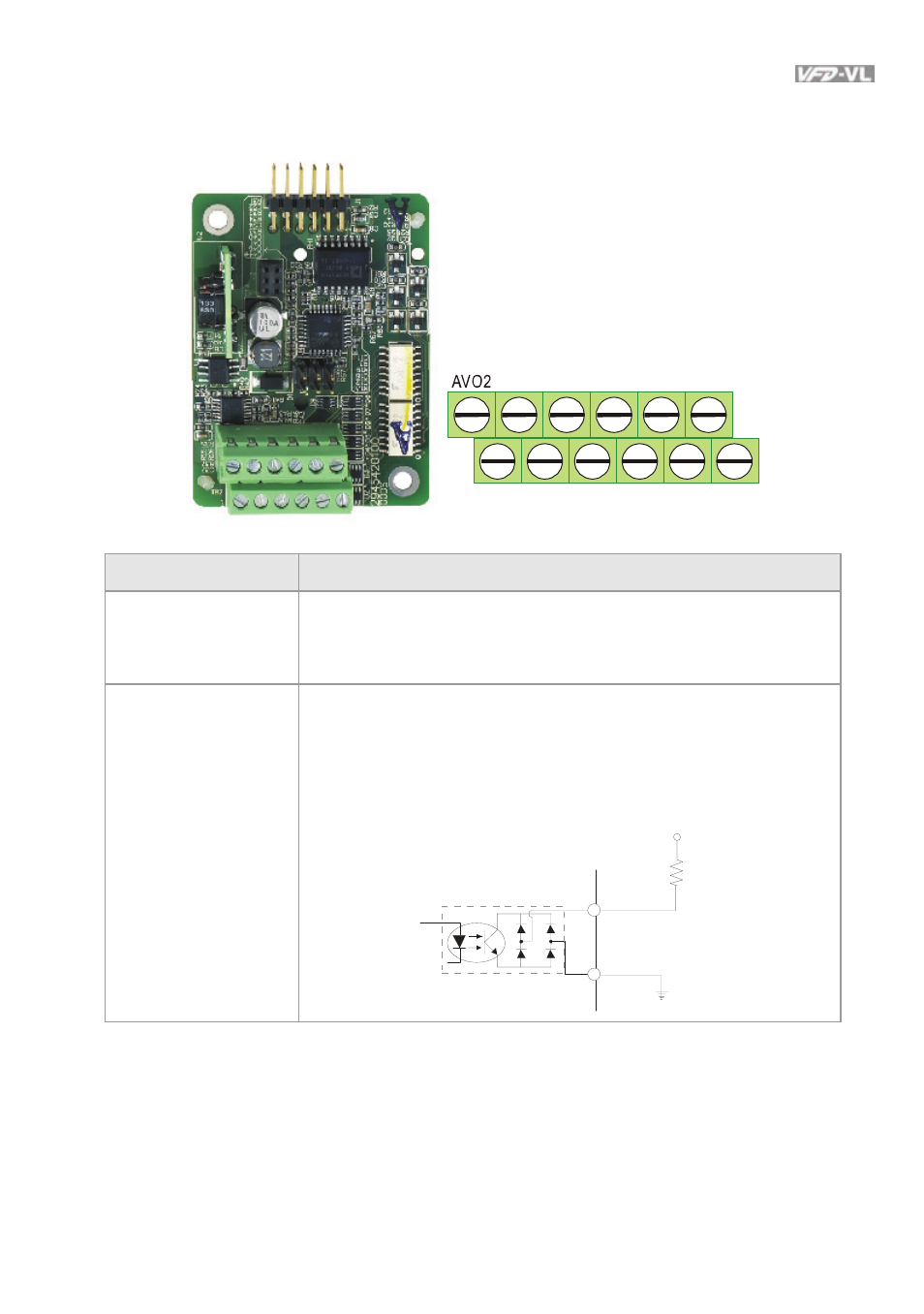

B.10 EMVL-IOA01
AVO1 AGND MO10 MO9 MO8
MCM MO7 MO6 MO5 MO4 MO3
Terminals Descriptions
AVO1-AGND
AVO2-AGND
Multifunction analog voltage output terminal
-10.0V~10.0V
The analog output is defined by Pr.03-17 and Pr.03-20.
MO3~MO10
Multifunction output
terminals
(photocoupler)
The AC motor drive outputs every monitor signal, such as
operation indication, frequency attained and overload indication by
the transistor (open collector). Refer to Pr.02-15~02-22
multifunction output terminals for details.
MO3~MO10
MCM
Max: +24V/5mA
RL
internal circuit
