B.1.1 dimensions and weights for brake resistors – Delta Electronics Elevator Drive VFD-VL User Manual
Page 201
Appendix B Accessories|
B-4
Revision Nov. 2008, VLE1, SW V1.03

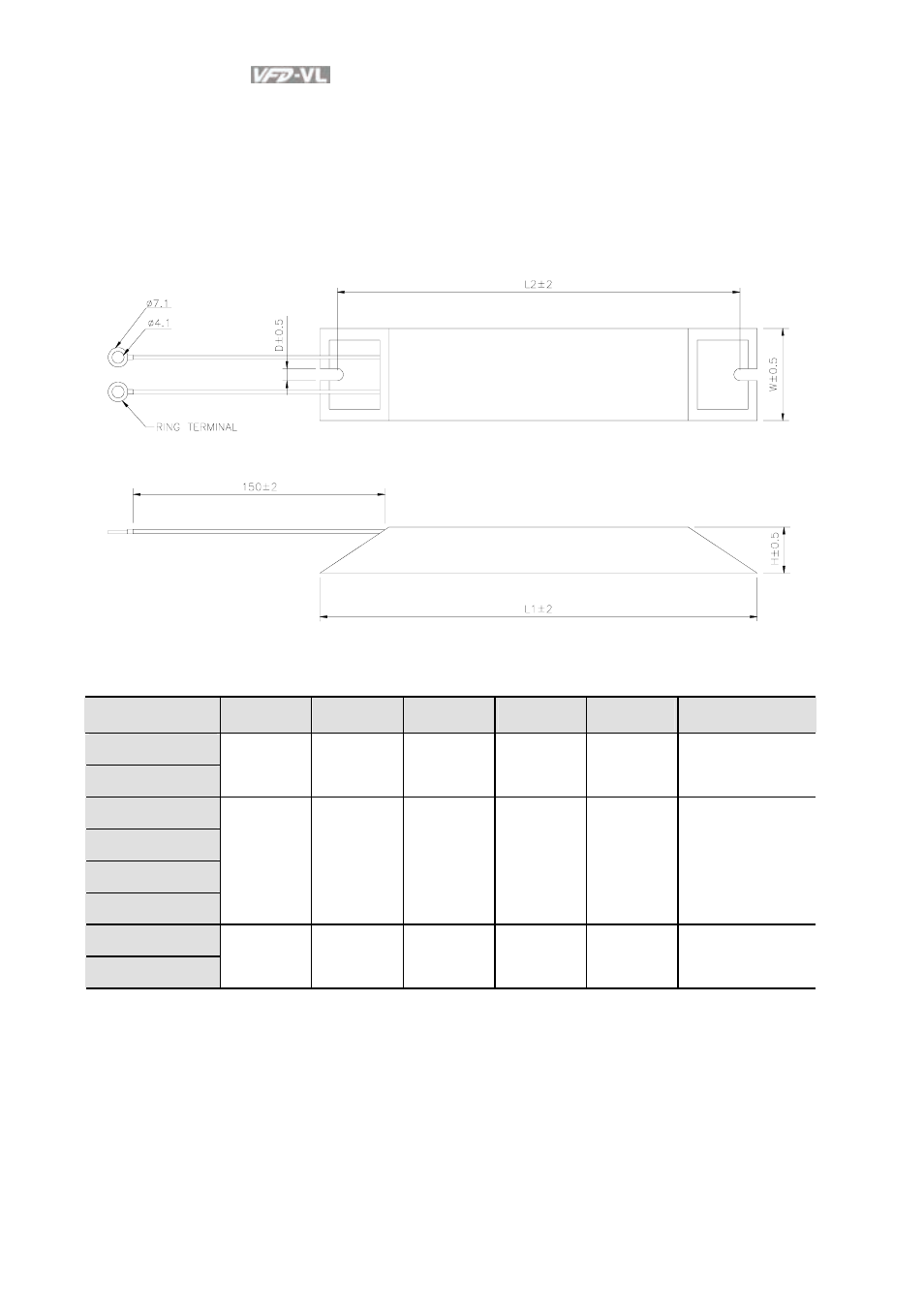

B.1.1 Dimensions and Weights for Brake Resistors
(Dimensions are in millimeter)
Order P/N: BR080W200, BR080W750, BR300W070, BR300W100, BR300W250,
BR300W400, BR400W150, BR400W040
Model no.
L1
L2
H
D
W
Max. Weight (g)
BR080W200
BR080W750
140 125 20 5.3 60
160
BR300W070
BR300W100
BR300W250
BR300W400
215 200 30 5.3 60
750
BR400W150
BR400W040
265 250 30 5.3 60
930
