Settings and explanations
Division factor
RESE
RVE
I/M
O
D
E
O/MO
DE
RST

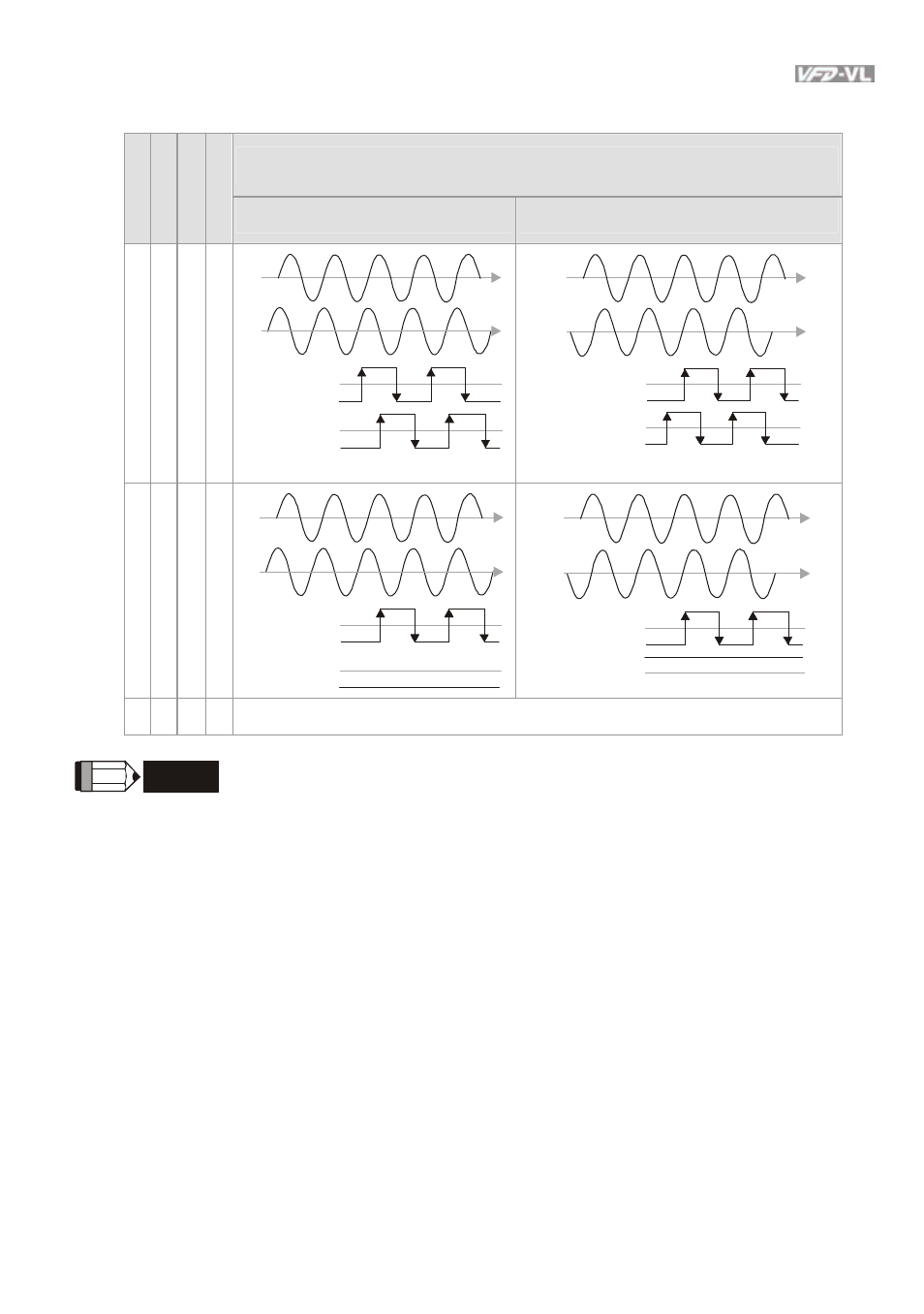

A leads B
B leads A
X 0 0 1
A
B
A/O-/A/O
B/O-/B/O
A
B
A/O-/A/O
B/O-/B/O
A/O-/A/O
B/O-/B/O
X 0 1 1
A
B
A/O-/A/O
B/O-/B/O
A/O-/A/O
B/O-/B/O
A
B
A/O-/A/O
B/O-/B/O
A/O-/A/O
B/O-/B/O
X 1 X 1
This setting is NOT for EMVL-PGH01
NOTE
When the switch is ON, it means logic 0.
A-/A and B-/B are the input signals of PG card. A/O-/A/O and B/O-/B/O are the line drivers
of the frequency divider measured by the differential probe.
PIN1 is reserved.
PIN 5~12 are the denominator for the frequency divider. PIN 5 is the low bit (EX: the
setting of XXXX10101010 is that the input signal divides by 85).
When PIN 2 and PIN 3 are set to 0, the input signals (A-/A and B-/B) of PG card should
be square wave and A/O-/A/O and B/O-/B/O are the outputs of frequency divider.
When PIN 2 is set to 0 and PIN 3 is set to 1, the input signals (A-/A and B-/B) of PG card
should be square wave and B/O-/B/O is the indication of phase A and B. (EX: LOW
means A leads B and HIGH means B leads A). A/O-/A/O is the output of frequency
divider.
When PIN 2 is set to 1 and PIN 3 is set to X, B-/B should be the input signal of direction
indication. (EX: when B-/B is LOW, it means that A leads B. When B-/B is HIGH, it means
