Chapter 4 Parameters|
4-52 Revision Nov. 2008, VLE1, SW V1.03

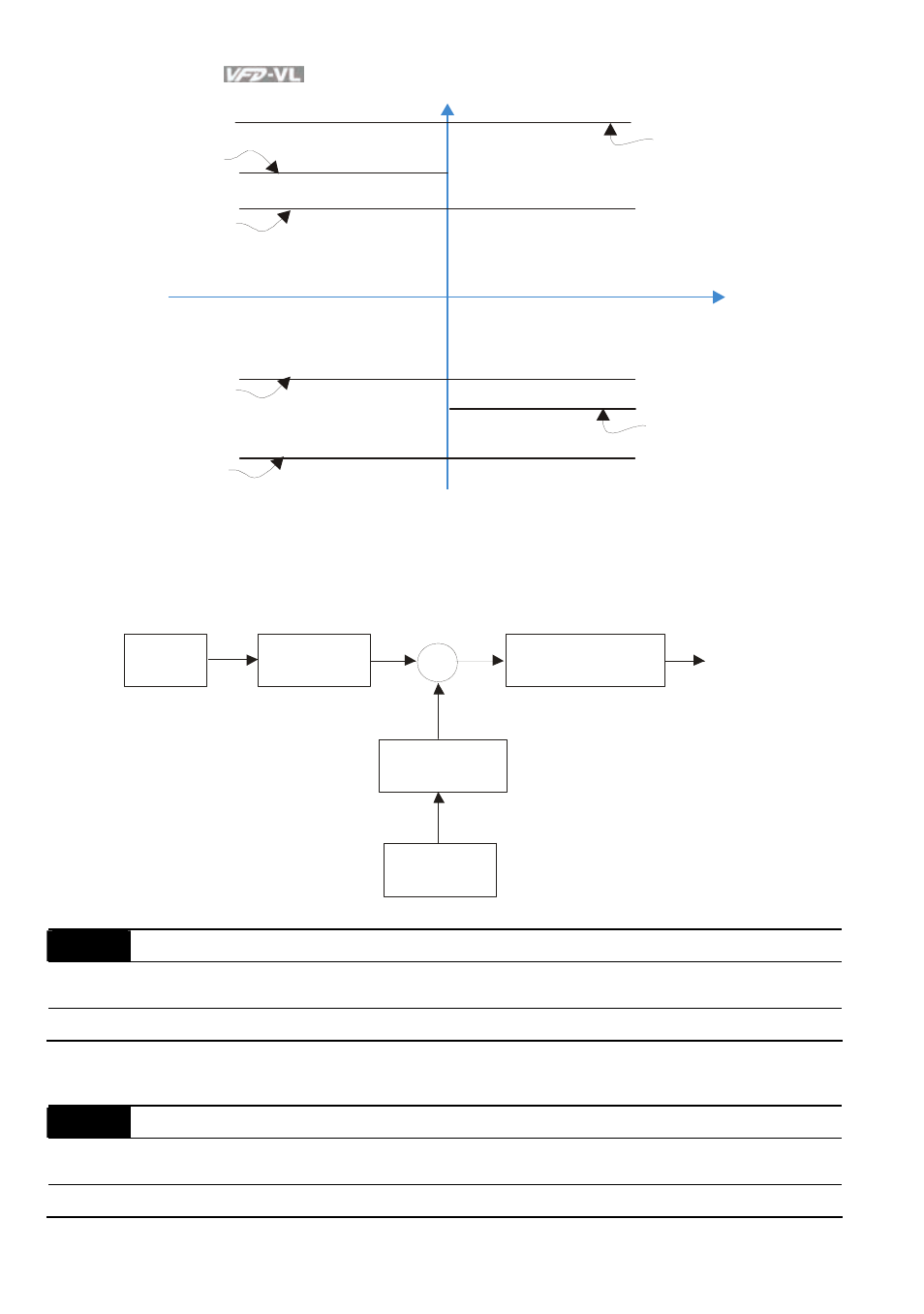

Positive torque
Reverse
03-00~02=5
Positive torque limit
03-00~02=6
Negative torque limit
03-00~02=7
Regenerative
torque limit
03-00~02=8
Positive/negative torque limit
Negative Torque
Forward
03-00~02=8
Positive/negative torque limit 03-00~02=7
Regenerative
torque limit
07-19: Source of tor que offset
03-00~02: Analog input selections (AUI1/ACI/AUI2)
03-03~05: Analog input bias (AUI1/ACI/AUI2)
03-06~08: AUI1/ACI/A UI2 bias mode
07-19=1
Analog input
03-00~02
Bias mode
03-06~08
B ias
03-03~05
+
+/-
Analog input gain
03-09~11
Preload
03-03 Analog Input Bias 1 (AUI1) Unit: 0.1
Control
mode
VF VFPG SVC FOCPG TQCPG FOCPM
Factory setting: 0.0
Settings -100.0~100.0%
It is used to set the corresponding AUI1 voltage of the external analog input 0.
03-04 Analog Input Bias 1 (ACI) Unit: 0.1
Control
mode
VF VFPG SVC FOCPG TQCPG FOCPM
Factory setting: 0.0
Settings -100.0~100.0%
