B.7.3 dimension of the digital keypad, B-21, Unit: mm [inch – Delta Electronics Elevator Drive VFD-VL User Manual
Page 218: Rubber magnet
Appendix B Accessories|
Revision Nov. 2008, VLE1, SW V1.03
B-21

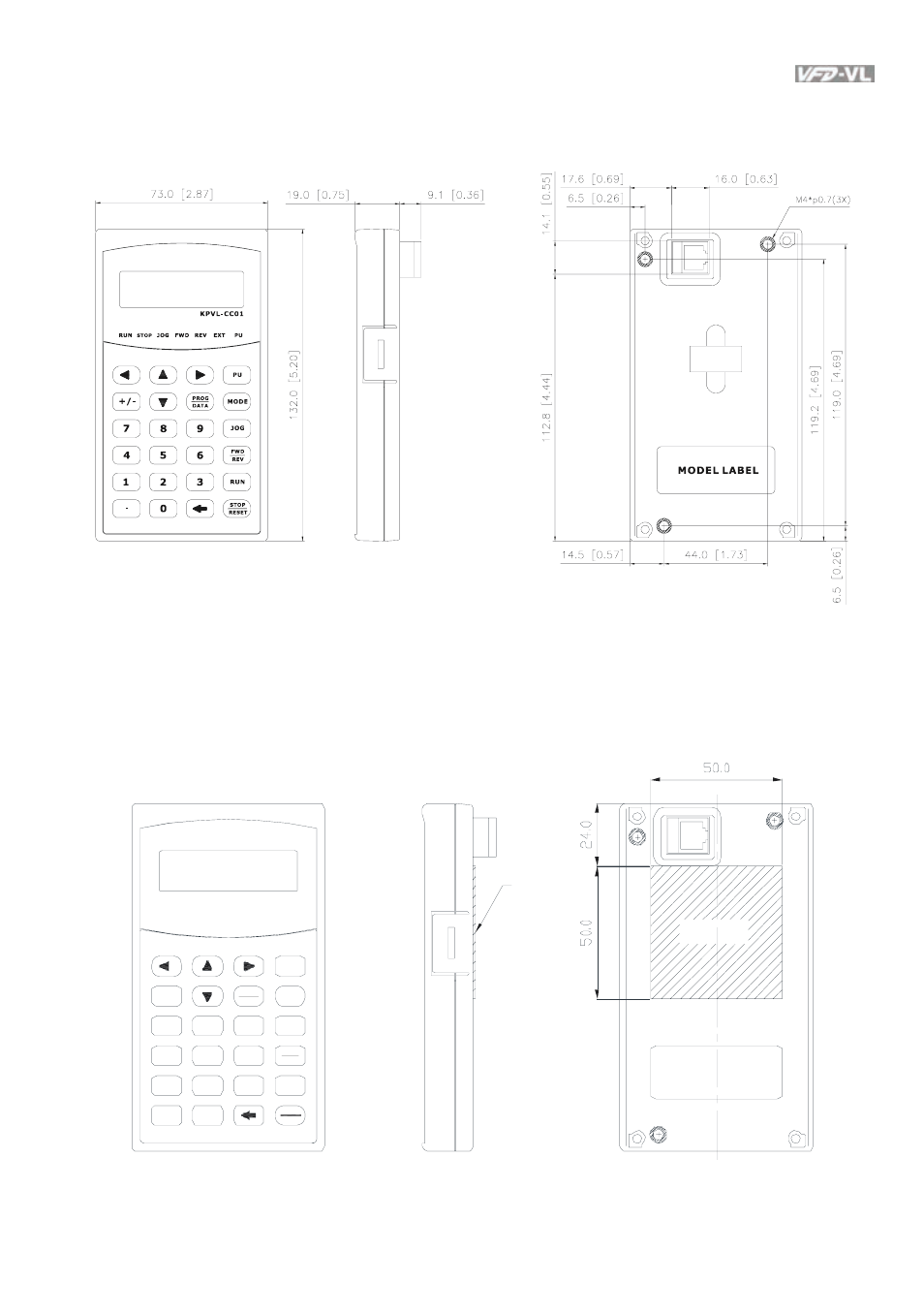

B.7.3 Dimension of the Digital Keypad
Unit: mm [inch]
B.7.4 Recommended Position the Rubber Magnet of the Digital
Keypad
This rubber magnet is shipped with the digital keypad. Users can adhere to anywhere of
the back of the digital keypad to stick on the case of the AC motor drive. Please don’t stick
on the communication port to prevent reducing magnetic force.
LABEL
JOG
FWD
R EV
RUN
PU
STO P
R ESET
PRO G
D ATA
MODE
7
8
9
6
5
4
1
2
0
.
3
+/-
KPVL-CC01
P U
EX T
RE V
FW D
JO G
STOP
RU N
rubber
magnet
rubber
magnet
