6.3.4
Mapping LED Points
Figure 6-6 is a simple example showing how LED points are mapped to zones and output groups. Typically you
would create two output groups for each zone, one for alarms and one for troubles. (LED points are available
when Models 5865-3/4 and/or 5880 are used with the system.)

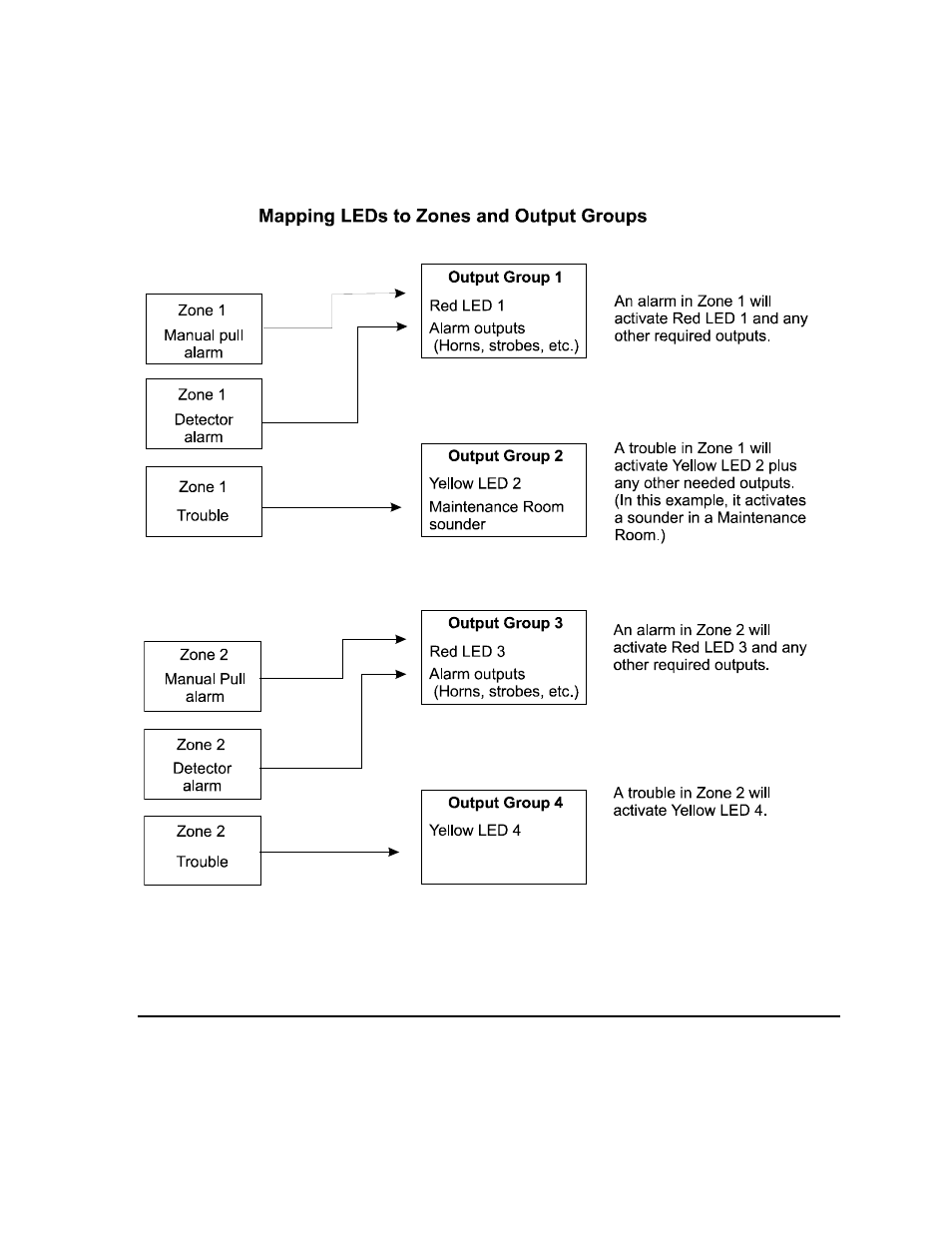

Figure 6-6 Example of LED Points Mapped to Output Groups
(Applies to Models 5865-3/4 and 5880)
6.4
Programming Using the 5660 Silent Knight Software
Suite
You can use the 5660 Silent Knight Software Suite (SKSS) to program the control panel onsite or remotely.
SKSS is an optional software package that lets you easily program the control panel using a Windows-based
computer and a modem*. When using SKSS, you can set up the programming options for the panel, save the
options in a file, then download the file to the panel. You connect to the control panel directly using the control
