Model 5820XL / 5820XL-EVS Installation Manual LS10061-001SK-E
4-25
2. Configure the circuit for Class A in programming (see Section 7.5).

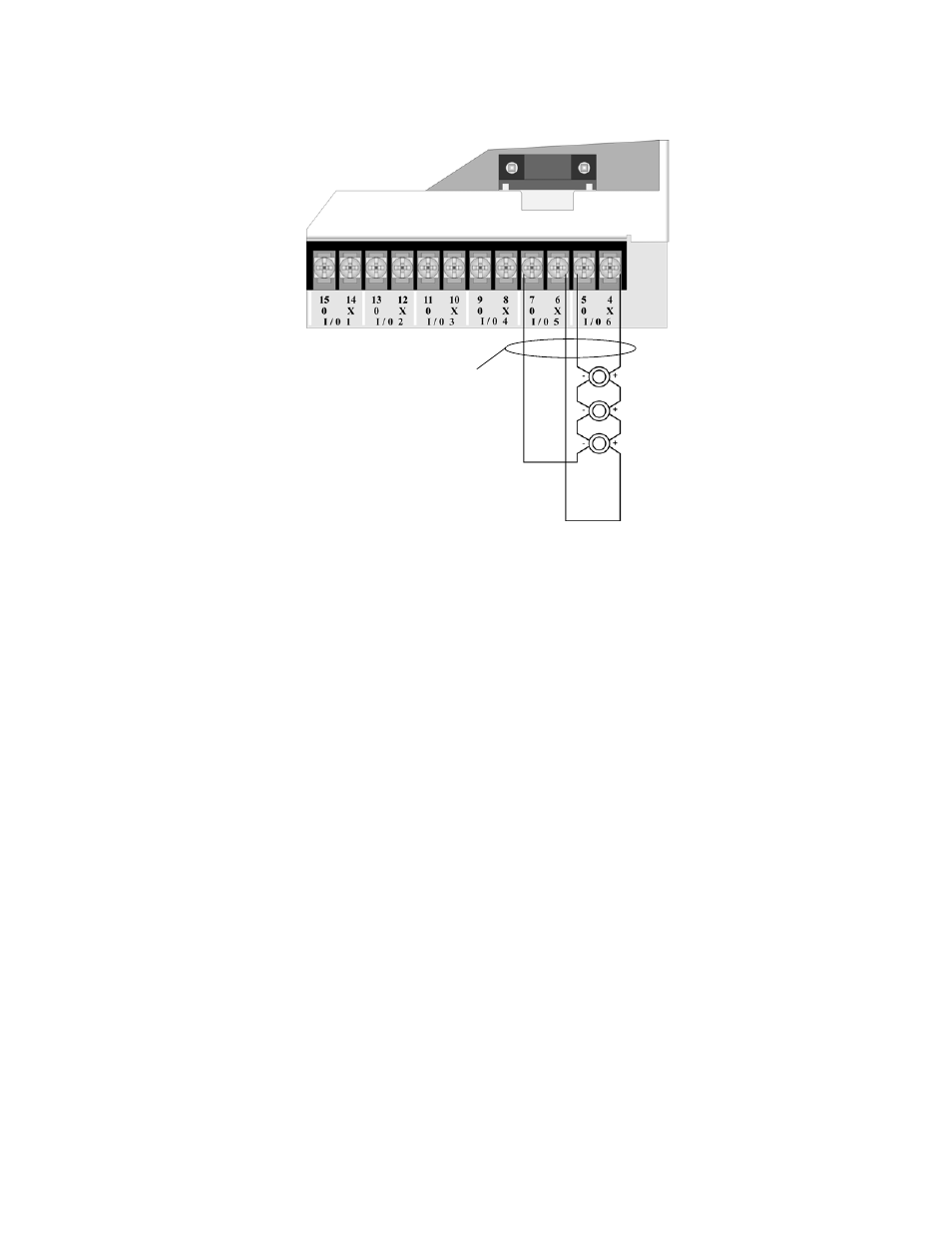

Figure 4-31 Class A Notification Appliance Circuit Configuration
Note: In programming any point that uses multiple Flexput circuits, the lowest Flexput circuit number is used to
refer to the circuit pair. For example, Figure 4-31 uses both Flexput circuit 5 and 6, so in programming it
would be referred to as point 5.
4.12.2 Conventional Input Switch Circuits
This section of the manual explains how to install conventional initiating devices for Class A (Style D) or Class
B (Style B) configurations.
Supervised
Power Limited
Regulated 24 VDC Full Wave Rectified
27.4 VDC, 3A per Circuit, 6A max Combined
