4.10 Configuring Modules
This section describes how to configure any system hardware modules that have been added to the system.
4.10.1 Assigning SBUS Module IDs
When installing a hardware module (such as, 5815XL, 5824, 5860, 5496, 5895XL, 5865-3, 5865-4, EVS-50W,
EVS-125W, EVS-100W, EVS-RVM, or EVS-VCM), you must use the DIP switches on the module to assign an
ID# to the module.
Figure 4-28 shows all possible DIP switch positions and their correlation to a numerical ID. For example, to
select ID 2, place DIP switch 2 in the up position.

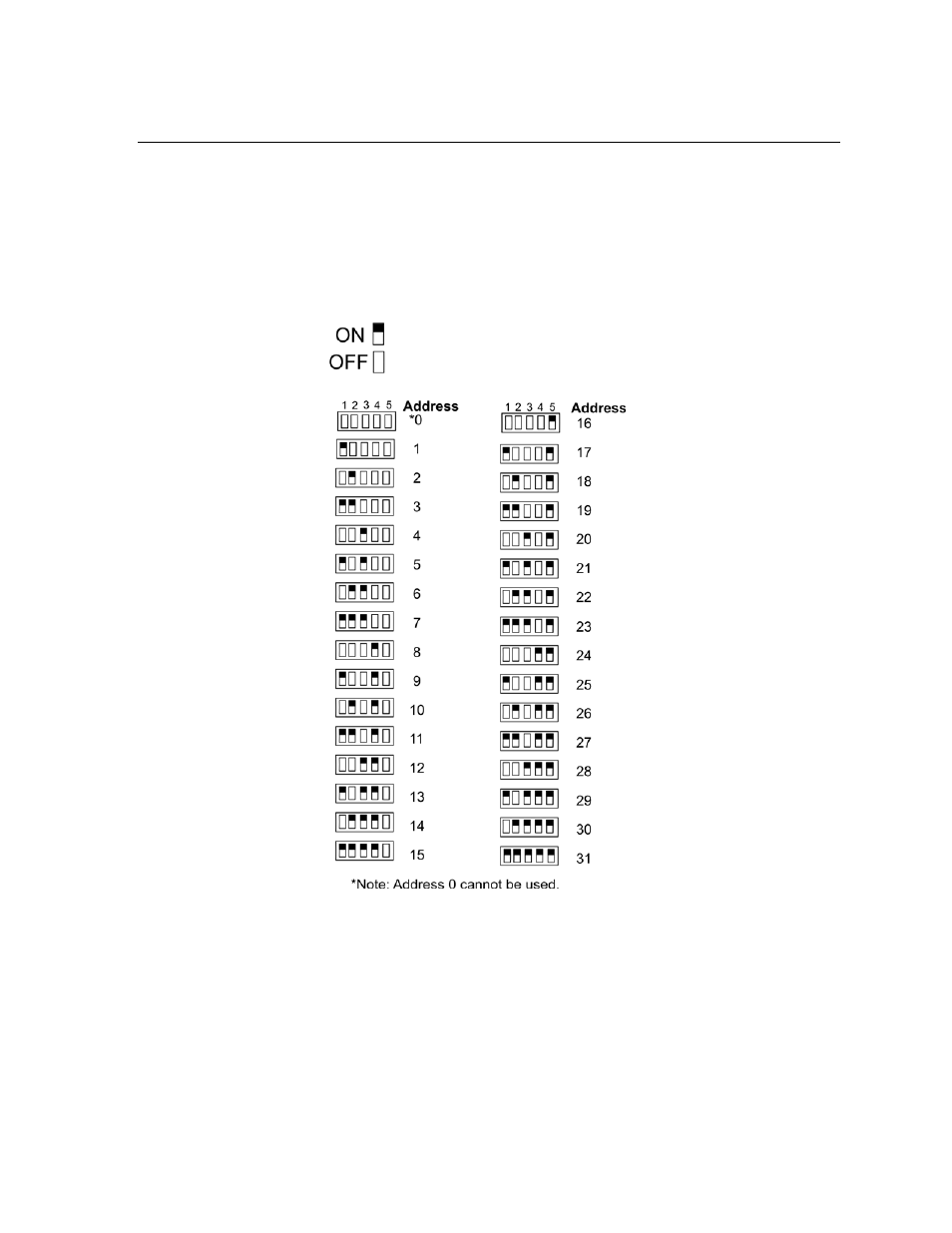

Figure 4-28 Possible module addresses
Refer to Section 7.2 to edit, add, delete, and view module list.
