LS10061-001SK-E Control Panel Installation
4-16
7. If you are using a serial printer, use the next screen to select serial port options as required for your printer.
Refer to your printer manual if you need more
information.
4.8 5880 LED I/O Module
The 5880 is an LED driver board that can be used in a wide variety of applications, including as an interface with
most customized floor plan annunciator boards. The 5880 can drive up to 40 LEDs and has one PZT controller.
The 5880 also has eight inputs for monitoring dry contacts. When used with the 5820XL-EVS the 5880 inputs
can be programmed to replicate the eight EVS buttons located on the front of the voice control module. (See
section 9.5 for programming options). The following sub-sections describe hardware installation. Refer to
Section 7 for programming information.
4.8.1 5880 Board Layout
Figure 4-20 shows the locations of screw terminals for connection to the panel and contact monitor wiring; pin
connectors for connecting LEDs; and the DIP switch for selecting an SBUS ID number for the 5880.

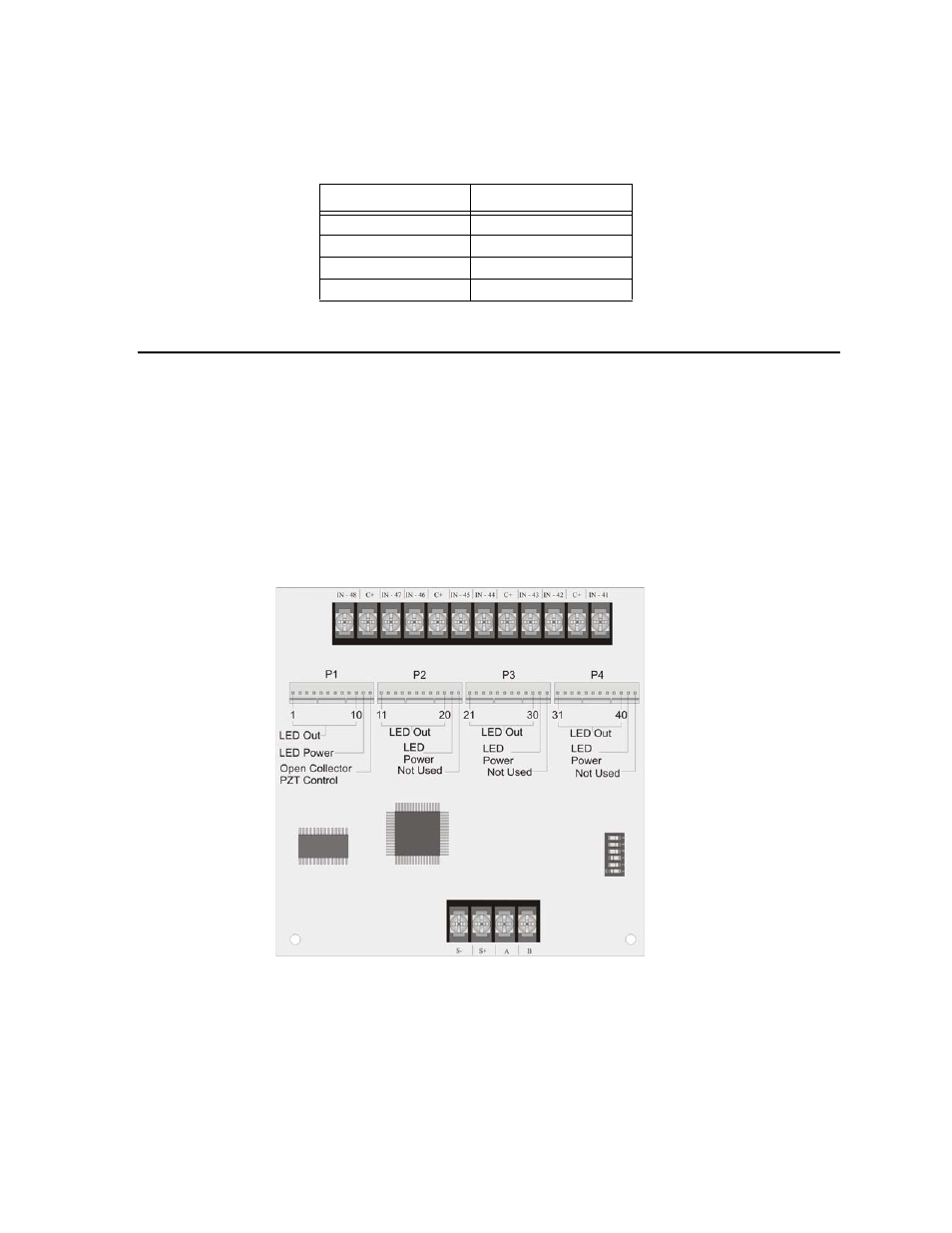

Figure 4-20 5880 Board Layout
4.8.2 5880 Connection to Panel
The 5880 connects to the panel via the SBUS. Make connections as shown in Figure 4-21. After the 5880 is
Option Choices
Baud Rate: 75 - 19200
Data Bits: 5 - 8
Stop Bits: .5, 1, 2
Parity: None, Even, Odd
SBUS Connection
SBUS Address
DIPs
Dry Contact Inputs
