9.13 Voice Command Mapping
Where an EVS event is playing can be configured automatically or manually. The automatic method is through
voice system mapping and the manual method is using output group override.
9.13.1 Voice System Mapping
Mapping EVS events to activate output groups is just like mapping events for the fire system. These are located
under the voice tab of SKSS.

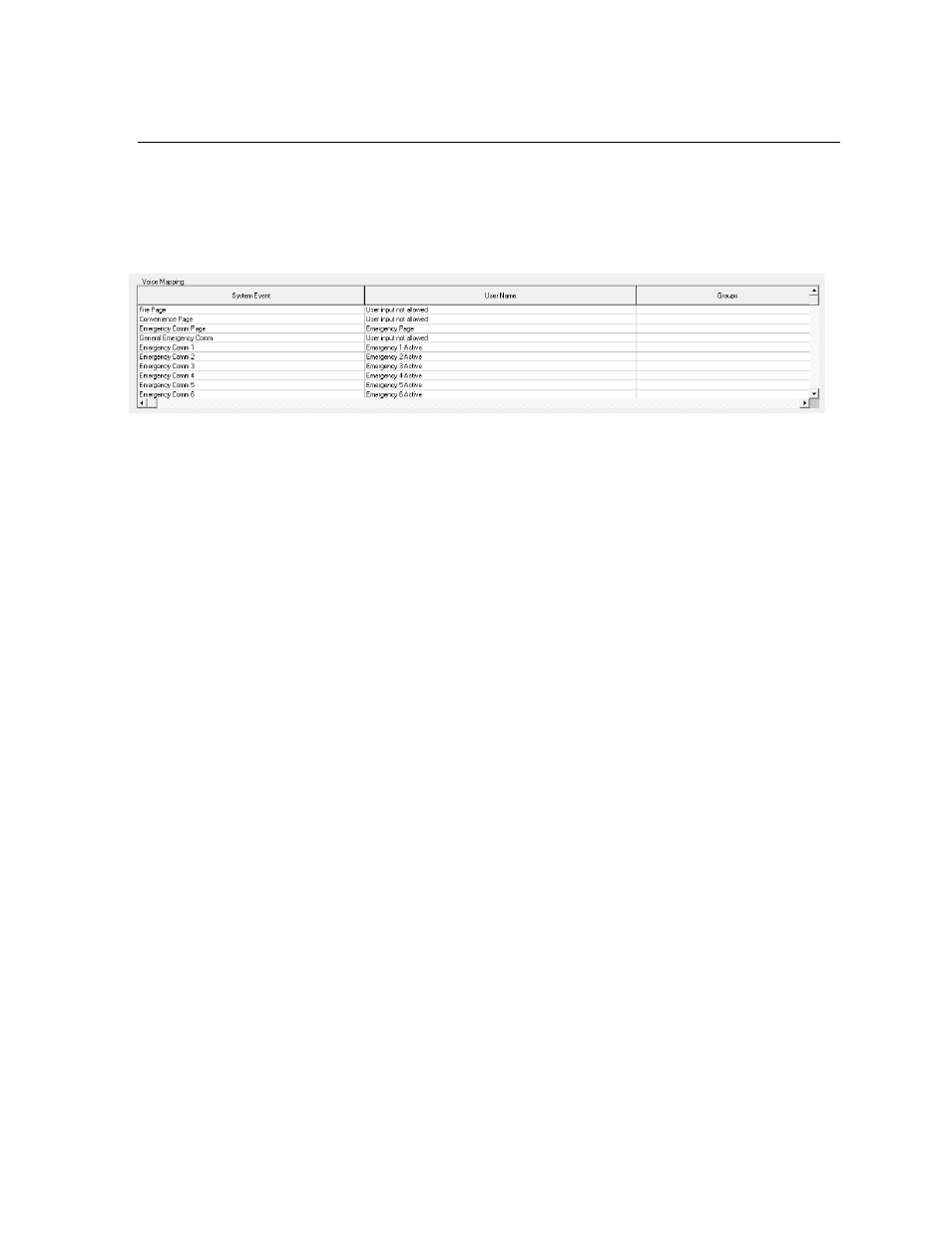

Figure 9-12 Voice System Mapping in SKSS
9.13.2 EVS Voice Aux Inputs (Dynamic with VCM/RVM in the
system)
Voice Aux inputs are in the priority table dynamically based on the number of EVS-VCM and EVS-RVMs in the
system. If the system contains the one EVS-VCM and three EVS-RVMs the priority table will show ‘EVS Aux
Voice In 1’ through 4. This is the same with voice mapping except voice mapping doesn’t have the EVS tag in
front of the event. See Table 9-2.
Note: With the EVS release, we are introducing status points to the system. The priorities associated with these
and non-EVS voice aux in are always added (internal to the system) after trouble.
