LS10061-001SK-E Control Panel Installation
4-24
4.12.1.1 Class B Notification Wiring
You must use an appliance from the list of compatible appliances in the Appendix A at the back of this manual.
To install a circuit:
1. Wire Class B Notification appliances as shown in Figure 4-30.
2. Configure the circuit through programming (see Section 7.5).

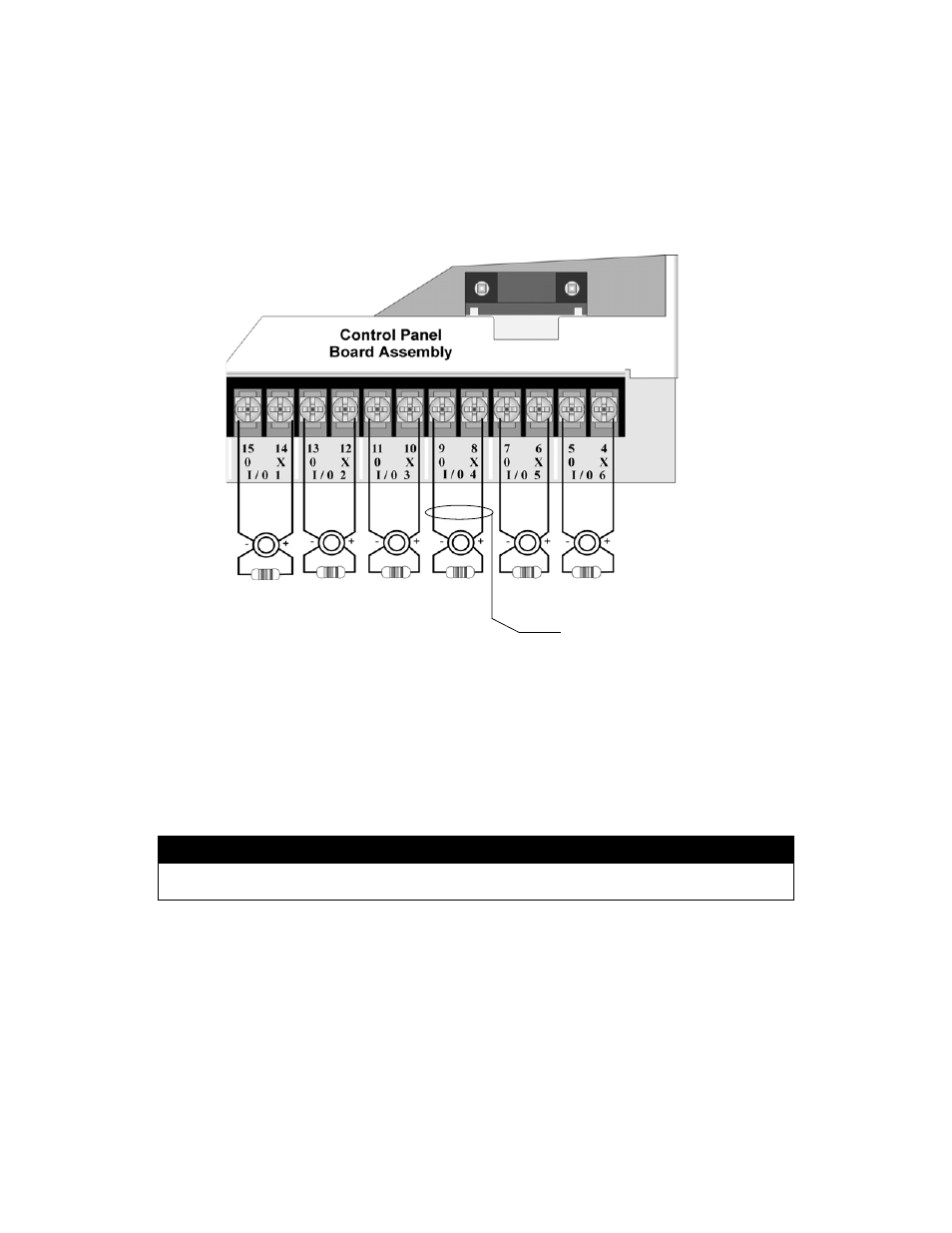

Figure 4-30 Class B Notification Appliance Circuit Wiring
4.12.1.2 Class A Notification Wiring
You must use an appliance from the list of compatible appliances in the Appendix at the back of this manual.
To install a Class A notification appliance circuit:
1. Wire the Class A notification appliances as shown in Figure 4-31.
Caution
For proper system supervision do not use looped wire under terminals marked O and X of the Flexput connectors.
Break wire runs to provide supervision of connections.
Alarm Polarity
Shown.
4.7 k
EOL
Supervised
Power Limited
Notification Wiring
Max. Impedance: 1.5

Regulated 24 VDC Full Wave Rectified
27.4 VDC, 3A per Circuit, 6A max Combined
