5.8 Addressing SD Devices
This section explains how to address SD detectors and modules.
5.8.1 SD505-APS, SD505-AHS, and SD505-AIS
The SD505-APS photoelectric smoke detector, SD505-AHS heat detector, and SD505-AIS ionization smoke
detector are easily addressed at the FACP. An access code with the option to Set SLC Device Address enabled is
required to perform this task.
To address a SD505-APS, SD505-AHS, and SD505-AIS:
1. Connect a detector base temporarily to the programming terminals as shown in Figure 5-7. (You can use the
same base for each detector.)

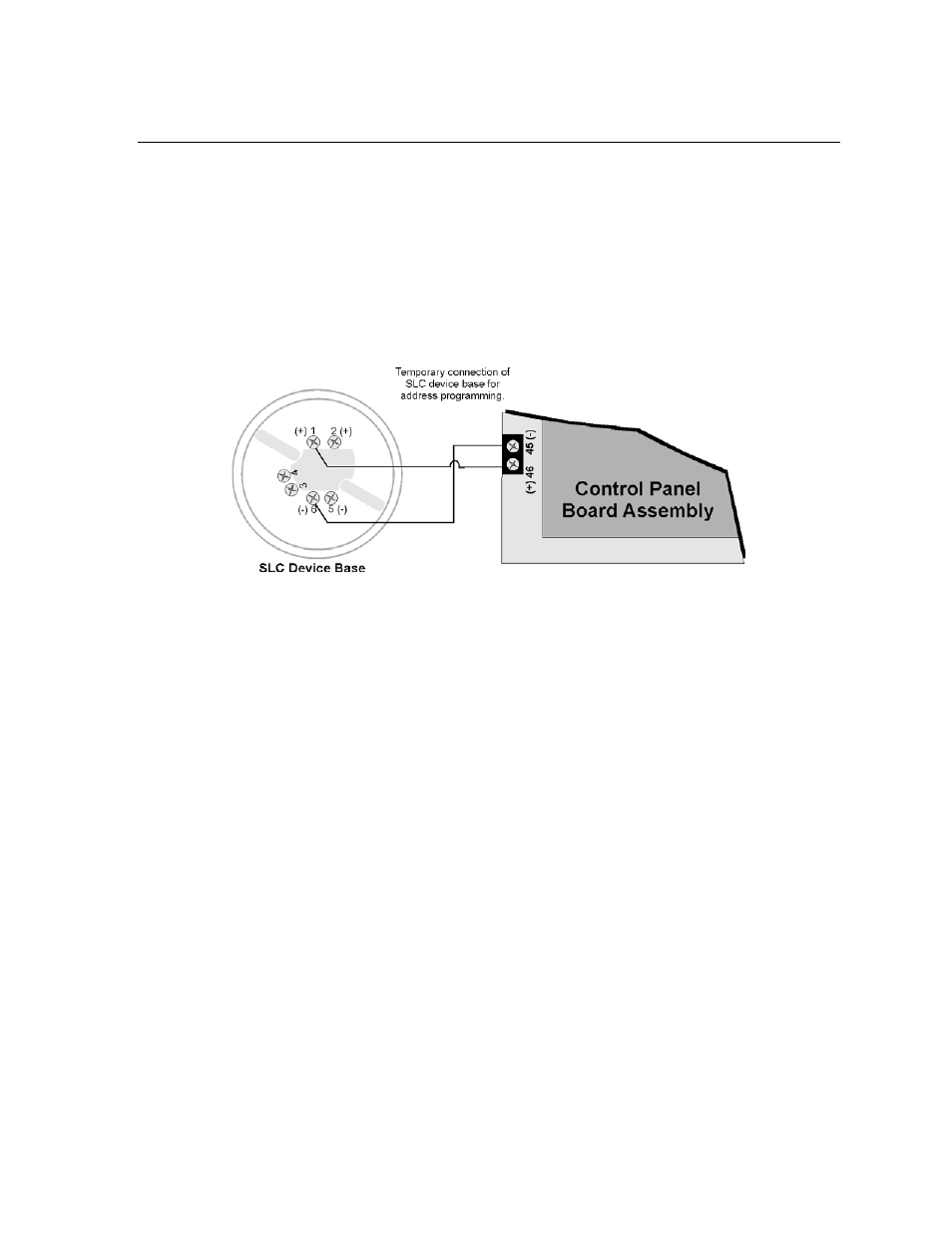

Figure 5-7: Temporary Connection of Detector Base to Panel for Addressing
2. Enter the Installer code. The panel will automatically go to the main menu.
3. Select 2 for Point Functions.
4. Select 3 for Set SLC Device Address.
5. Select “Yes” by pressing the up arrow, then press ENTER. (The panel will go into trouble at this point. You
can use the SILENCE key to stop the PZT. The trouble will clear automatically when the panel re-boots
when you finish programming.)
6. When the wait message clears, the following options display:
1- for Read Address. Use to read (or check) a single detector’s address.
2- for Write Address. Use to program a single detector’s address.
3- for Seq. Programming. Use to program more than one detector in sequential order.
7. If you are changing addresses, write the programmed address on the back of the device.
8. To exit press left arrow until fully exited.
