LS10061-001SK-E System Operation
8-2
the internal (default) message. See Section 7.6.7 for information on customizing the banner.

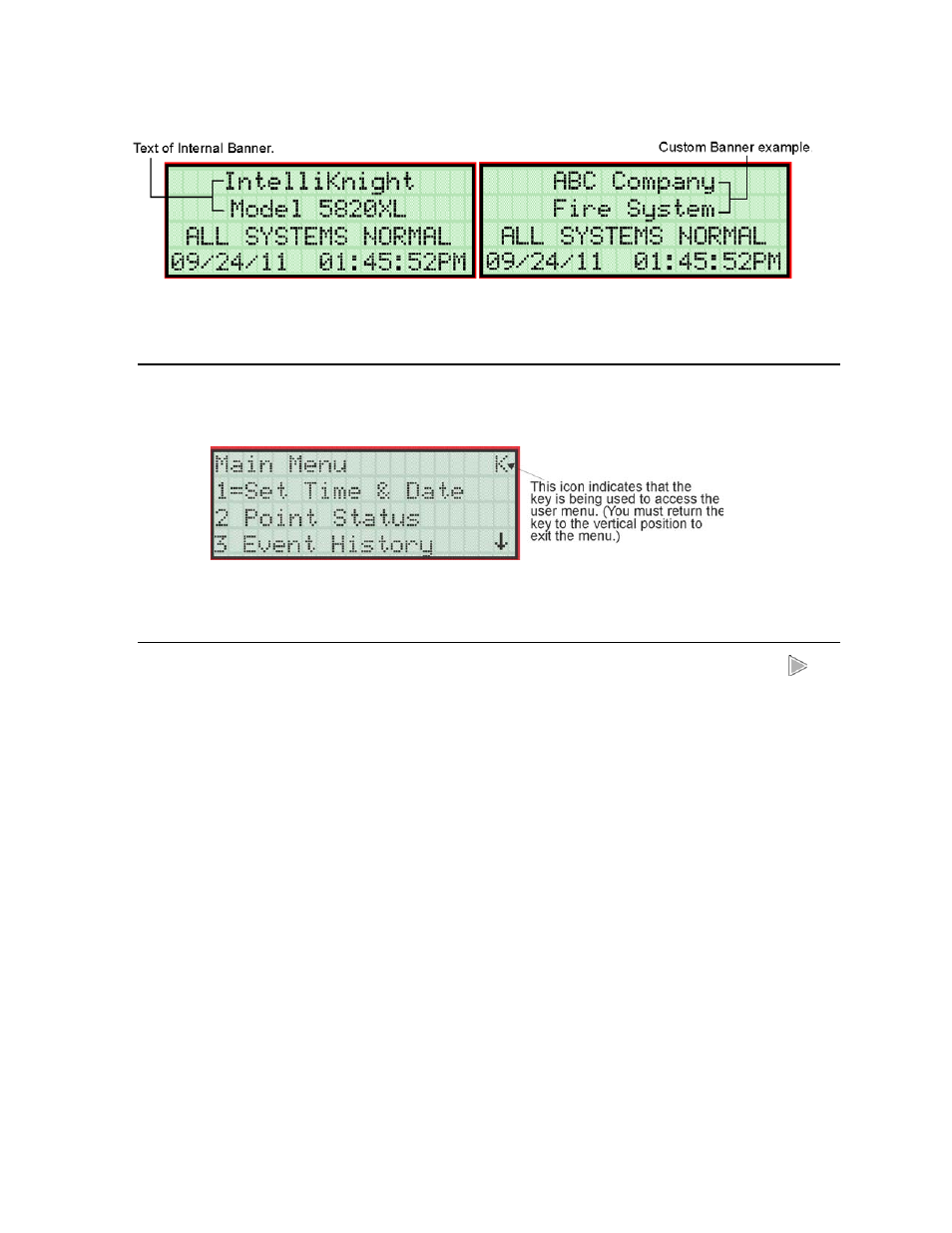

Figure 8-2 Banner Display Examples
8.3 Key Operation
The key on the control panel board assembly is for accessing the Main Menu. The key is activated when it is
turned once to the right (clockwise). If the key has been used to activate the menu, it must be turned counter-
clockwise to exit the menu.
Figure 8-3 Using a Key to Access the Main Menu
8.4 Menu System
The control panel is easy to operate from the Main Menu. To view the Main Menu press the ENTER or
button on the control panel or remote annunciator, then turn the firefighters key clockwise or enter your access
code. The Main Menu will appear as shown in Section 8.4.1. Select the desired option. If you have entered a code
or firefighters key does not have access to the menu item you have selected the following display message will
appear:
-Access denied.-
Entered PIN does not
allow access to this
function.
You must enter an access code with the correct profile settings to gain access to that menu item.
The control panel supports up to 20 access codes. The profile for each access code (or user) can be modified
through the programming menu option (see Section 7.9 for access code programming).
