Model 5820XL / 5820XL-EVS Installation Manual
LS10061-001SK-E
4-15

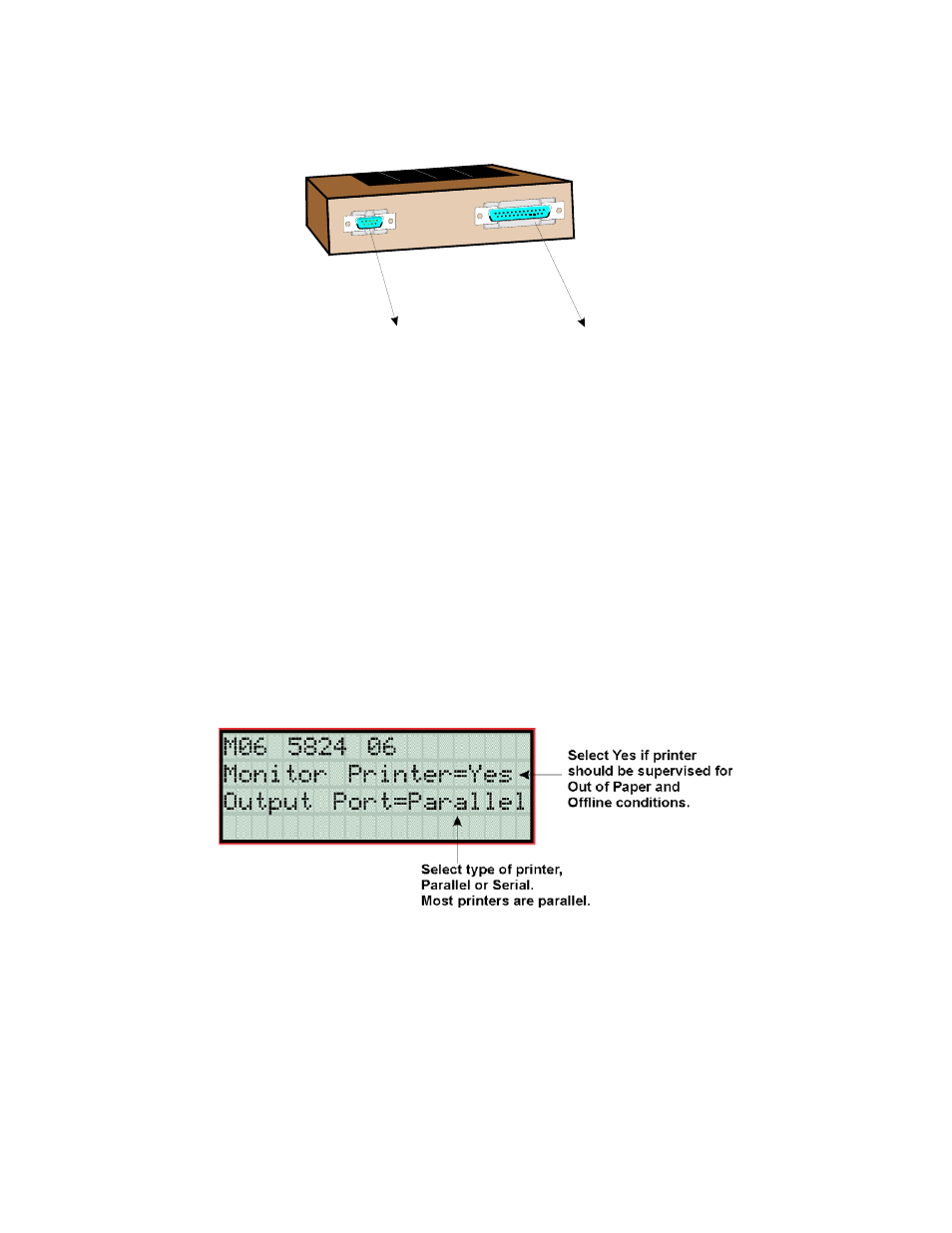

Figure 4-18 Printer Connection
4.7.1
Selecting 5824 Options
Configuring the 5824 includes the following steps:
•
Add the module to the system. JumpStart will add the module automatically (see Section 6.2). You can also
add it manually (see Section 7.2.2).
•
Select a name, if desired (see Section 7.2.1.1).
•
Select options for the printer and the output port. See below.
Printer and Output Port Options
1.
From the Installer Main Menu, select 7 for Program Menu.
2.
Select 1 for Module.
3.
Select 1 for Edit Module.
4.
From the list that displays, select the 5824 module you want to configure.
5.
The right arrow must be pressed twice to skip over the Enter Module ID and Enter Module name options. A
screen similar to the one shown in Figure 4-19 will display.
Figure 4-19 Selecting Printer and Output Port Options
6.
Select options for the printer as needed for your installation. Most printers are
parallel.
Model 5824 (with housing)
To Parallel Printer
To Serial Printer
