SilentKnight 5820XL User Manual
Page 114
LS10061-001SK-E
Programming
7-6
Mapping to Zone Events
Eleven types of events can occur in zones. For each event type, you can activate up to 8 output groups or output
group templates, specifying a pattern for each. The following is a list of all event types:
Note: Abbreviations in the parenthesizes are the characters that are displayed in programming (see
•
Manual Pull Alarm (MP)
•
Water Flow Alarm (WF)
•
Detector Alarm (DE). This applies to heat or smoke detectors.
•
Aux 1 and Aux 2 Alarm (A1 or A2). User-specified alarm types.
•
Pre-alarm (PR)
•
Supervisory (SU)
•
Trouble (TR)
•
Status Point (SP)
•
CO Alarm (CO)
•
CO Supervisory (SCO)
To map zone events to outputs:
1.
From the Installer Main Menu, select 7 for Program Menu.
2.
From the Program Menu, select 2 for Zone.
3.
From the next menu, select 1 for Edit Zone.
4.
Enter the zone number you wish to edit.
5.
From the next menu, select 3 for Zone Outputs.
6.
A screen similar to the one shown in Figure 7-4 will display. Select the event type you want to program
using the
or
key and press ENTER.
7.
Press the
or
key to toggle the group letter to either G = Group or T = output group template depend-
ing on want you need for this zone. Press ENTER.
8.
Select options for each event that could occur in this zone. Figure 7-4 is a complete example of how you
might map a zone.

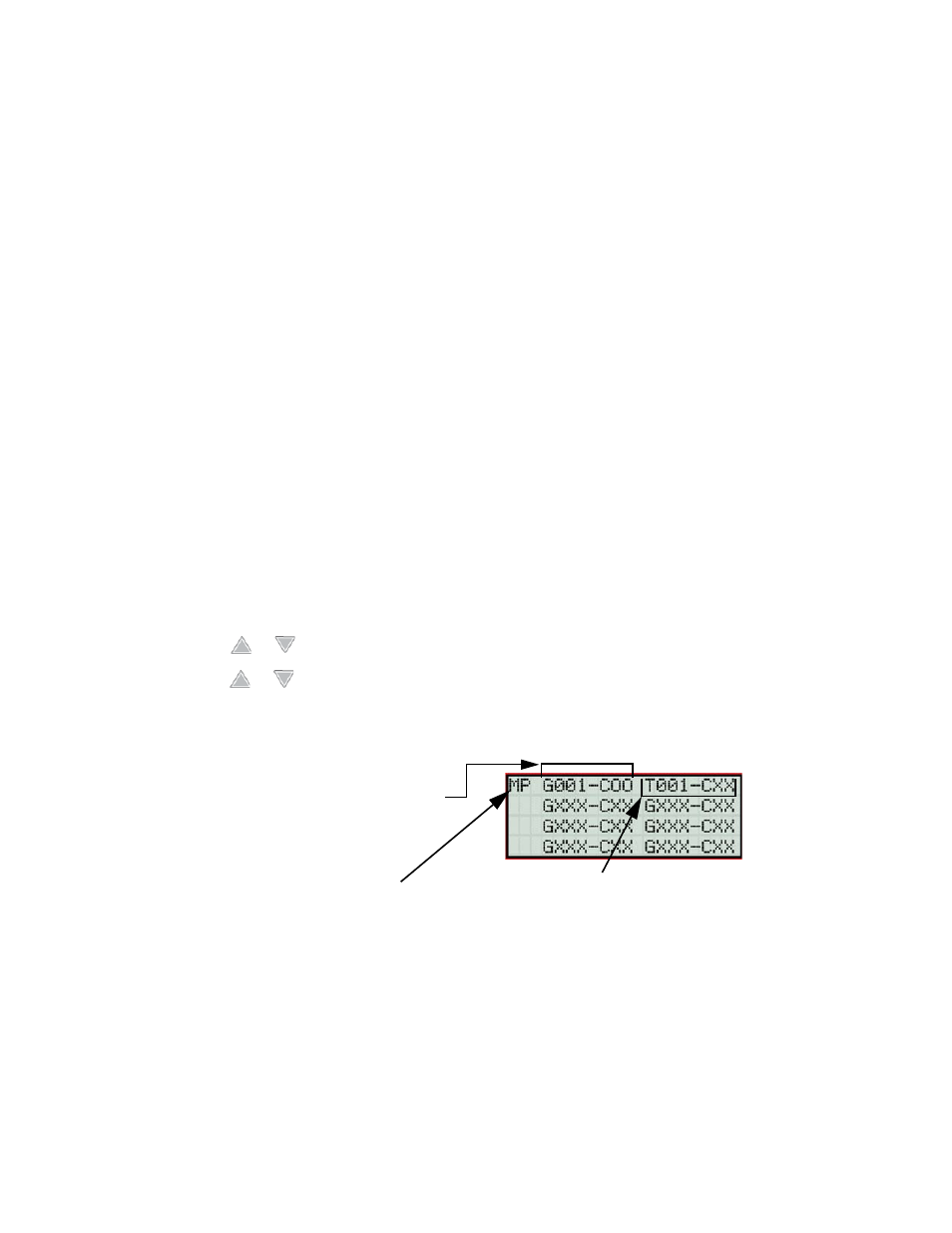

Figure 7-4 Selecting Output Groups/templates and Cadence Patterns for a Zone Event
Zone Mapping Example
Suppose you want to program Zone 1 so that:
•
Any alarm (detector, CO, water flow or manual pull) would activate Output Group 1 using the ANSI
cadence pattern.
•
Manual pull alarm would activate Output Group 3 using constant output.
Indicates type of event (in
this case, Manual Pull alarm).
See Section
for choices.
Indicates output group 1, cadence
pattern 00 has been selected. 00 is
a constant output cadence.
“T” Indicates output group
template 1. See Section 7.4.5 for
more information on output group
templates.
