SilentKnight 5820XL - Manual (Page 59)

LS10061-001SK-E Control Panel Installation
4-26
4.12.2.1 Class B Inputs
You can connect conventional Class B switches, such as waterflow switches and pull stations, directly to the
Flexput circuits of the control panel.
To install a Class B switch:
1. Wire the Class B switch as shown in Figure 4-32.
2. Configure the circuit through programming (see Section 7.5).

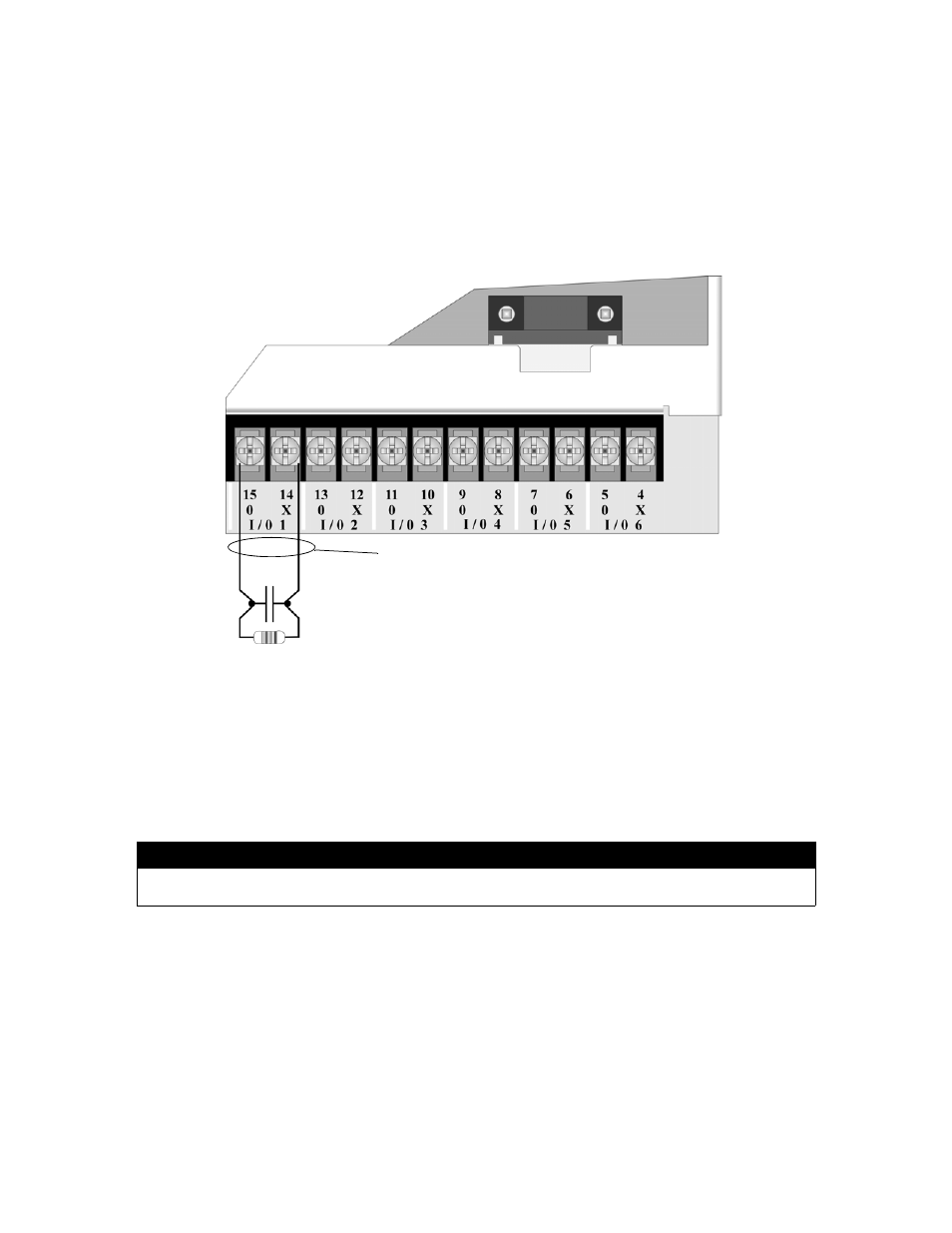

Figure 4-32 Class B Input Switches
4.12.2.2 Class A Inputs
You can connect conventional Class A switches, such as waterflow switches and pull stations, directly to the
Flexput circuits of the control panel.
To install a Class A switch:
1. Wire the Class A switch as shown in Figure 4-33.
Caution
For proper system supervision do not use looped wire under terminals marked + and – of the Flexput connectors. Break
wire runs to provide supervision of connections.
Supervised
Power Limited
4.7 k
EOL
