SilentKnight 5820XL - Manual (Page 76)

LS10061-001SK-E SK SLC Device Installation
5-6
To wire SK detectors:
1. Wire device bases as shown in Figure 5-4.
2. Set the address for each device as described in Section 5.6.

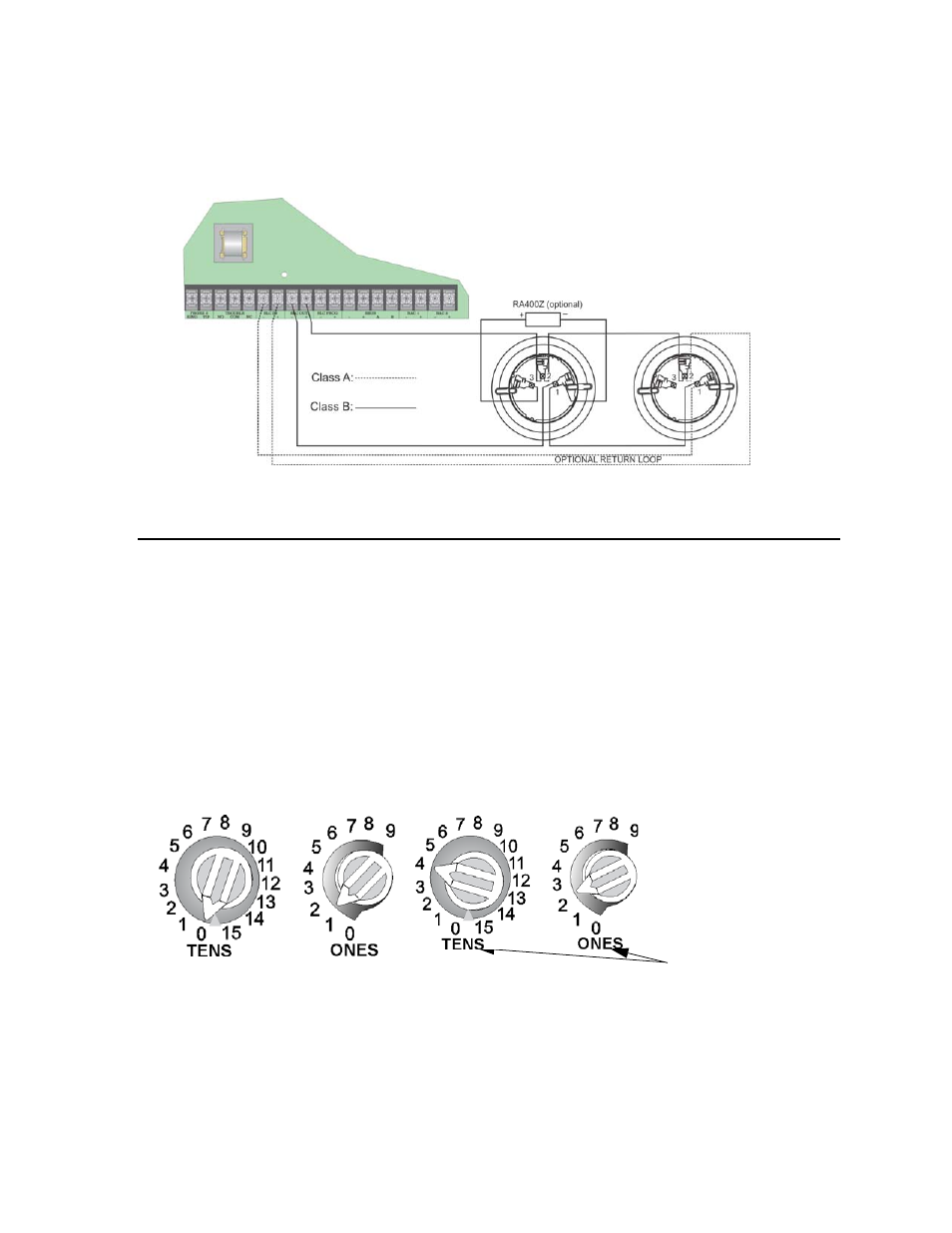

Figure 5-4 Heat and Smoke Detector Connection to the Panel.
5.6 Addressing SK SLC Devices
All SK devices are addressed using the two rotary dials that appear on the device board. Use the ONES rotary
dial to set the ones place in a one or two digit number, and use the TENS rotary dial to set the tens place in a two
digit number.
SK device addresses are handled differently than SD device addresses. The control panel recognizes when an SK
detector or SK module is installed. For this reason, SK detectors can be assigned any unique address from 1 to
99, and SK modules can be assigned any unique address from 1 to 99. Unlike SD detectors and modules which
share addresses 1 through 99, there can be an SK detector using address 1 and an SK module using address 1. 0
is an invalid address.
Example 1: To select device address 1, turn the ONES rotary dial to 1 and the TENS rotary dial to 0 as shown in
Figure 5-5.
Example 2: To select device address 42, turn the ONES rotary dial to 2 and the TENS rotary dial to 4 as show in
Figure 5-5.
Figure 5-5 SK SLC Device Addressing Using Rotary Dials
Caution: Do not loop wire under Terminal 1 or 2.
Break wire run to provide supervision of connections.
Example 1: Device Set to 01. Example 2: Device Set to 42.
All dials labeled for
ONES or TENS position.
