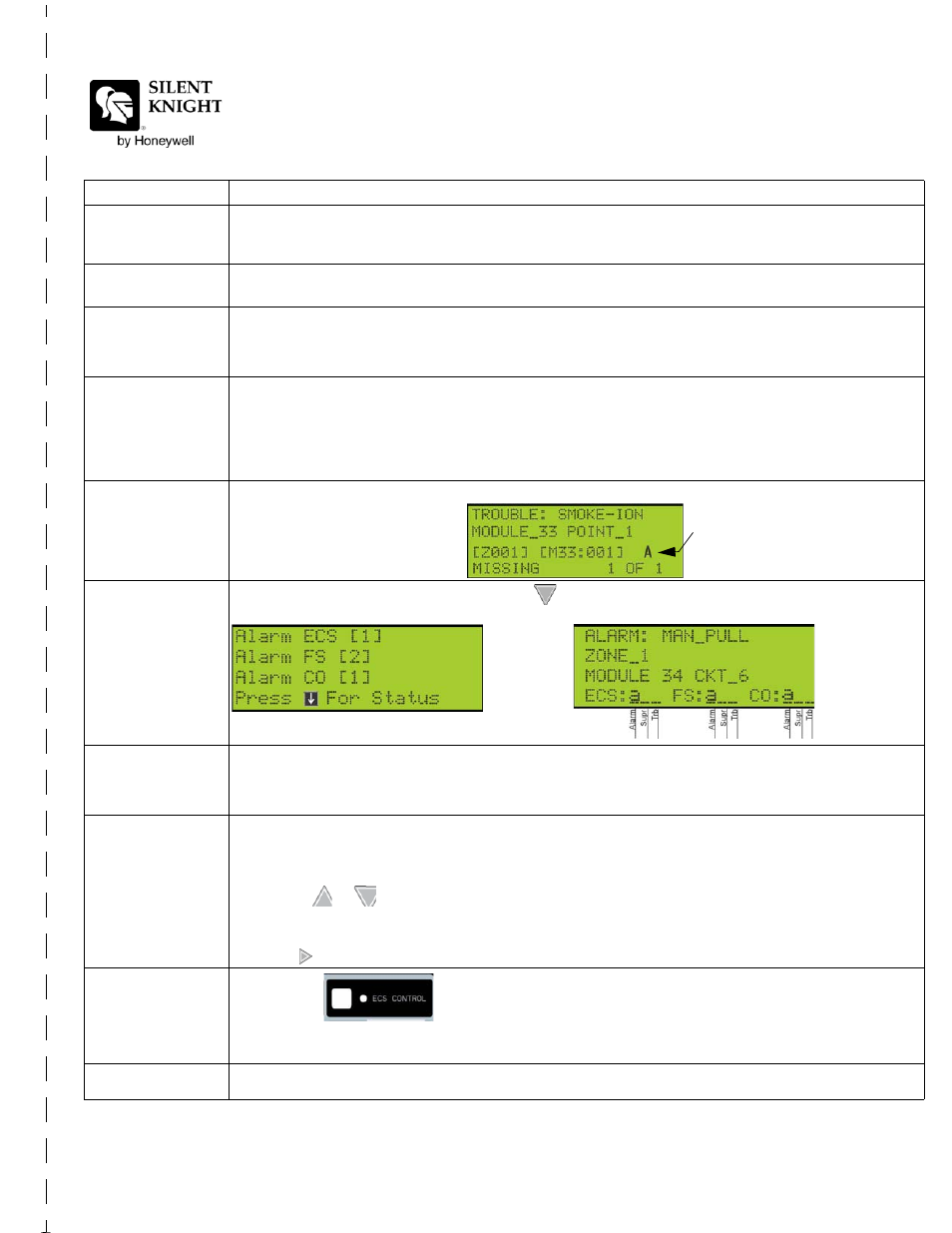

5820XL-EVS Basic Operating Instructions
These instructions must be framed and displayed next to the 5820XL-EVS panel in accordance with
NFPA 72 fire code for Local Protected Fire Alarm Systems.
FS= Fire System EVS = Emergency Voice System
Operation Task to Perform
Silence Alarms and
Troubles (FS and
EVS)
Press SILENCE then rotate the key or enter a code if prompted. Silence LED will light.
Reset Alarms (Fire
Only)
Press RESET then rotate the key or enter a code.
Reset Alarms (EVS
& Fire)
1. Press RESET.
2. Press 1 to Reset Fire System.
3. Press 2 to Reset Emerg. System.
Note: To reset EVS at an LOC, the user must gain EVS Control. (See Figure 1).
Conduct a fire drill
1. Rotate the key or enter a code then press ENTER to access the menu.
2. Press 1 for System Test.
3. Press 1 to select Fire Drill.
4. Press ENTER to begin the drill. To end the drill, press any key.
To conduct a fire drill from a remote fire drill switch: Activate the switch to begin the drill; de-activate the switch to
end the drill.
Acknowledge
Alarms and Troubles
Press ACK then enter a code if prompted. When the Alarm or Trouble is acknowledged an A will appear in the
annunciator display as shown Below.
View all active
alarms, troubles,
and supervisory
signals
The highest priority event will display first. Press to view location and type of alarm or trouble. After 2
minutes of sitting idle, events will display on line 4.
Set Time and Date
1. Rotate the key or enter a code then press ENTER to access the menu.
2. Press 4 for Set Time and Date.
3. Make changes in the fields on the screen as necessary.
4. When the time and date are correct, press ENTER.
Enable / Disable
point
1. Rotate the key or enter a code to access the Main menu.
2. Press 2 for Point Functions.
3. Press 1 for Disable / Enable point.
4. Press 7 for Disable / Enable point.
5. Use the or to move through the list. Then press ENTER to select the module where the point you
want to disable/enable is located
6. Enter the point or circuit number that you want to disable/enable.
7. Press key to toggle between NORMAL (enable) or DISABLE
To Gain / Request
EVS Control
1. Press the Button and follow the on-screen Instructions.
Note: When EVS Control LED is blinking, another LOC has EVS Control. EVS Control LED is on steady
when the LOC has EVS Control.
For Service Call:
Acknowledge
Mark
