PN LS10064-001SK-E Rev C
ECN 13-0792
Integrated Voice Operation

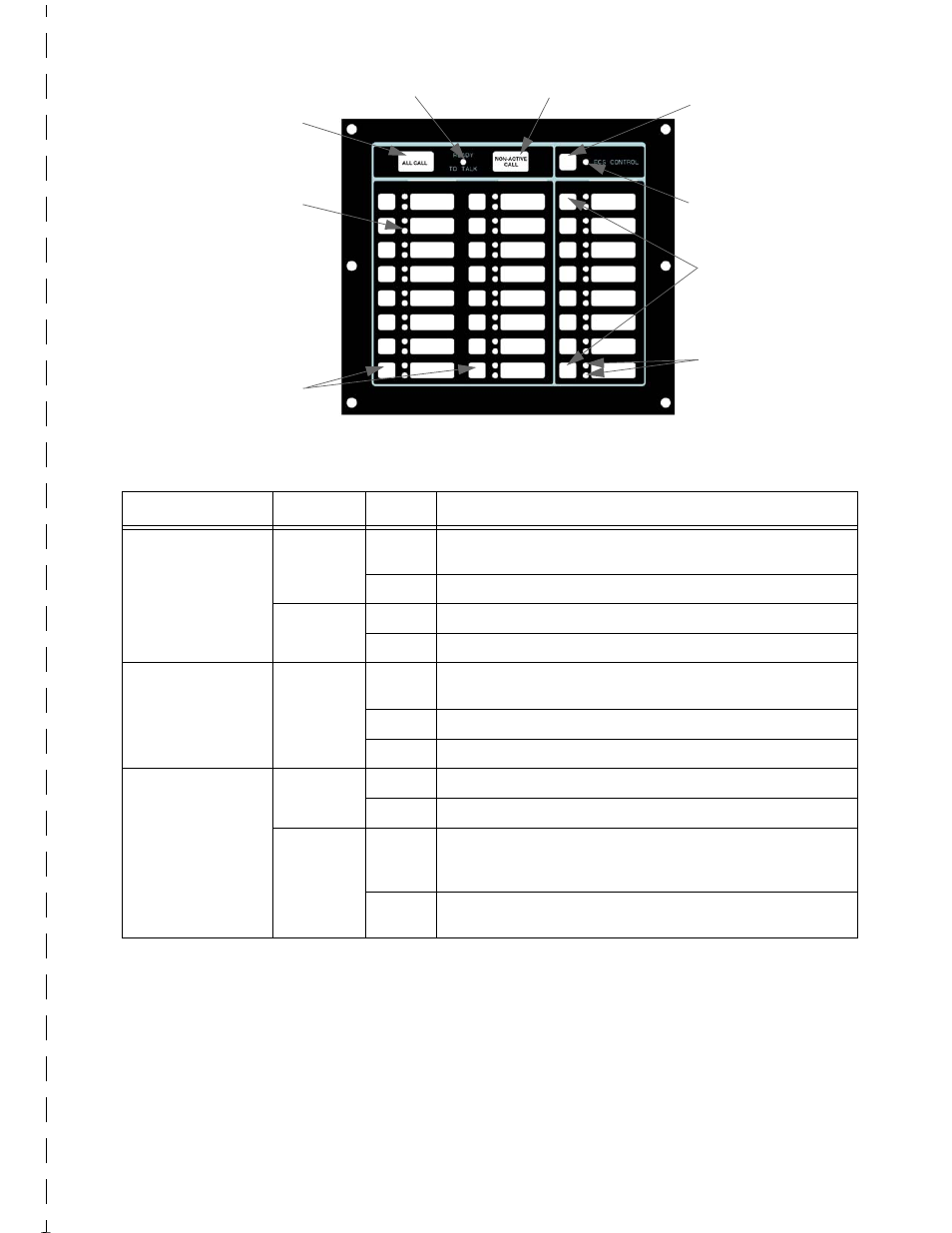

Figure 1: EVS-VCM Front View
Table 1: LED Conditions
LED Color States Meaning
Select Keys
Red
On
The corresponding area is active for the currently playing EVS
message.
Off The corresponding area is not active.
Green
On The corresponding area is active for the microphone.
Off The corresponding area is not active for the microphone.
EVS Control LED Green
On
LOC has EVS Control and the user is able to make changes to
the EVS.
Off LOC does not have EVS Control.
Blinking Another LOC has ECS Control
EVS Message LED
Red
On The corresponding EVS event was activated by an EVS device.
Off The corresponding EVS event is not active.
Green
On
The corresponding EVS event is active and was generated from
the LOC (or was activated from another LOC, but this LOC now
has EVS Control).
Off
The corresponding ECS event was not activated from this LOC or
this LOC does not have ECS Control.
ALL CALL
Key
NON-ACTIVE CALL
Key EVS Control
Key
EVS Status LED
Message (1-8)
Select
Message
LEDS
Activate Keys
Keys
Select
LED’s
Ready to
Talk LED
