SilentKnight 5820XL - Manual (Page 47)

LS10061-001SK-E Control Panel Installation
4-14
4.7 5824 Serial/Parallel Interface Module Installation
The 5824 serial/parallel interface module allows you to connect a printer to the panel, so you can print a real-time
log of system events, a report of detector status, and event history. Instructions for installing the 5824 appear
below.
The 5824 and the printer connected to the 5824 Parallel port is ancillary, the serial port can be used for primary
fire signaling. The printer must be a UL 864 listed printer.
5824 installation involves the following steps:
1. Make sure power is off at the panel.
2. Connect the 5824 to the panel as shown in Figure 4-17.
Note: Two 5824s per panel maximum.
3. Use the DIP switches on the back of the 5824 board to assign an ID# to the 5824 (see Section 4.10.1).
4. Configure the 5824 device through programming. See Section 4.7.1.
5. Connect a printer to the 5824 as shown in Figure 4-18.

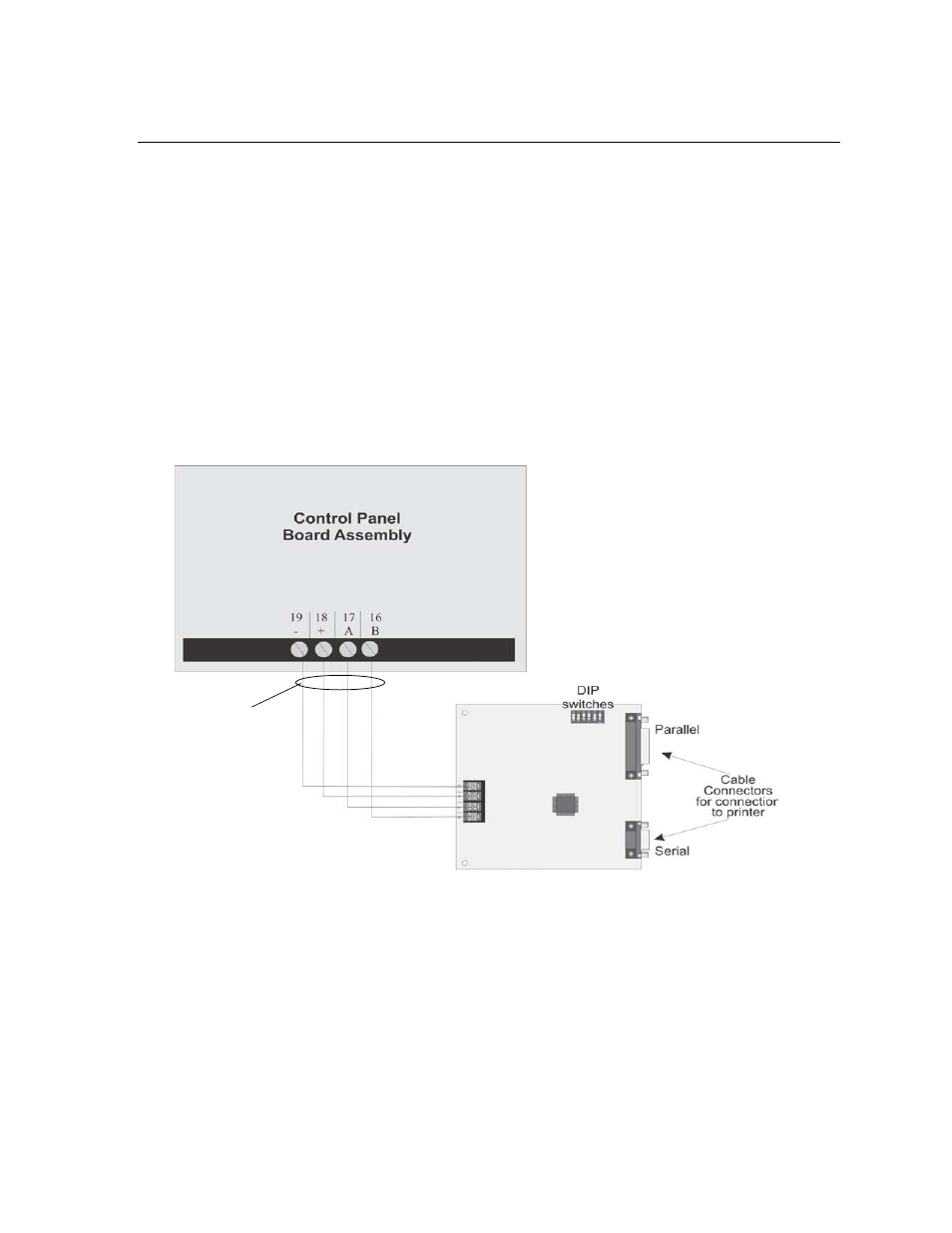

Figure 4-17 5824 Connection to the Panel
Supervised
Power Limited
