Model 5820XL / 5820XL-EVS Installation Manual LS10061-001SK-E
6-7
6.3.3 Zone Event Mapping
There are 11 types of events that can occur in zones (see below). For each event type, you can activate up to 8
output groups and patterns. If it is necessary to map to more than 8 output groups, an output group template may
be used (see Section 7.4.5 for information on output group templates). Event types are:
• Manual Pull Alarm
• Water Flow Alarm
• Detector Alarm (heat or smoke detectors)
• Aux 1 and Aux 2 Alarm (user-specified alarm types)
• Pre-alarm
• Supervisory
• Status Points
• Trouble
• CO Alarm
• CO Supervisory

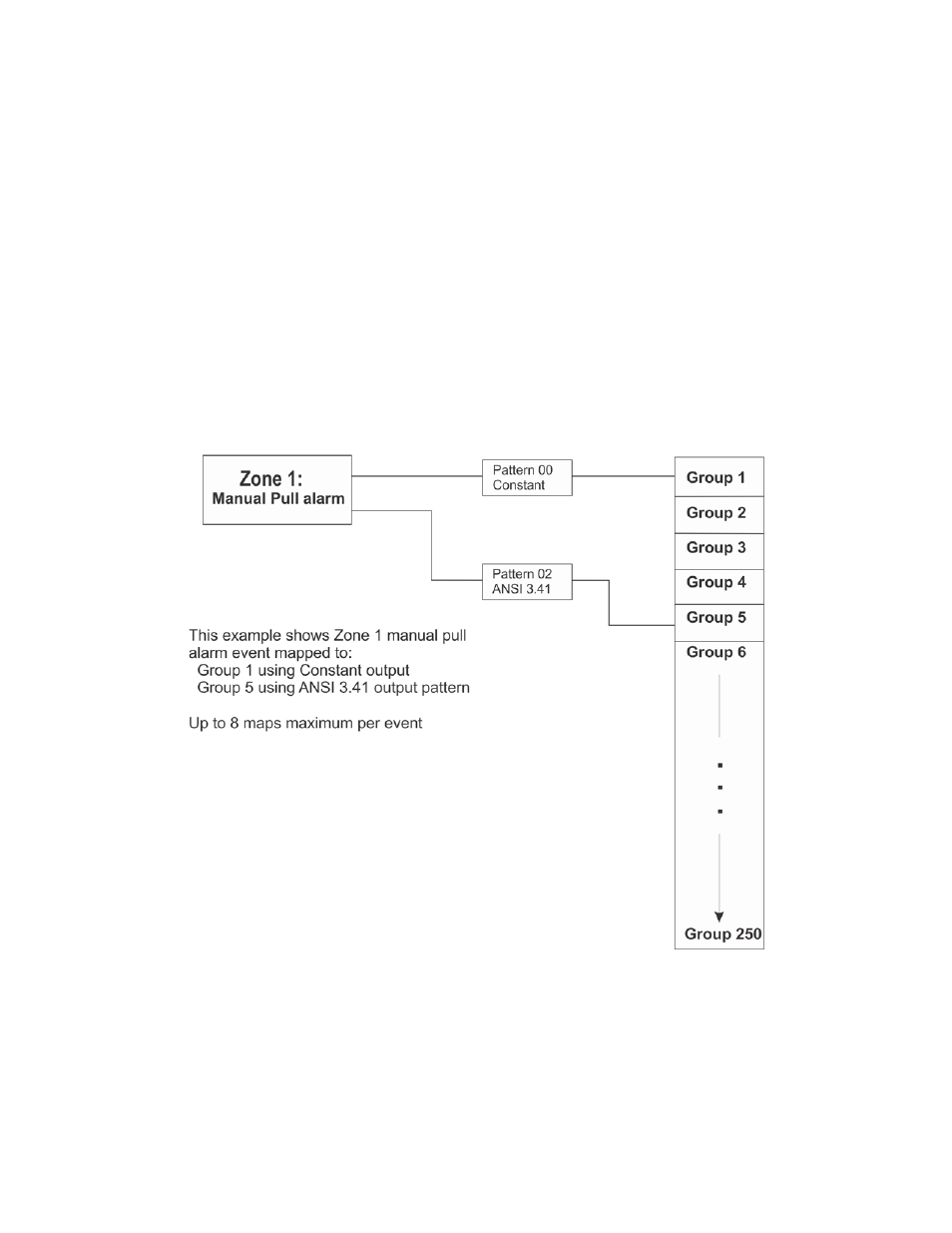

Figure 6-4 Example of Zone Events Mapped to Output Groups and Patterns
